radioSURG® 2200 M

• Professional monopolar unit
• For cutting and coagulation
• Enables pressureless, "cold" cuts
• Class IIb medical device
• Automatic switch-off after 1 min.

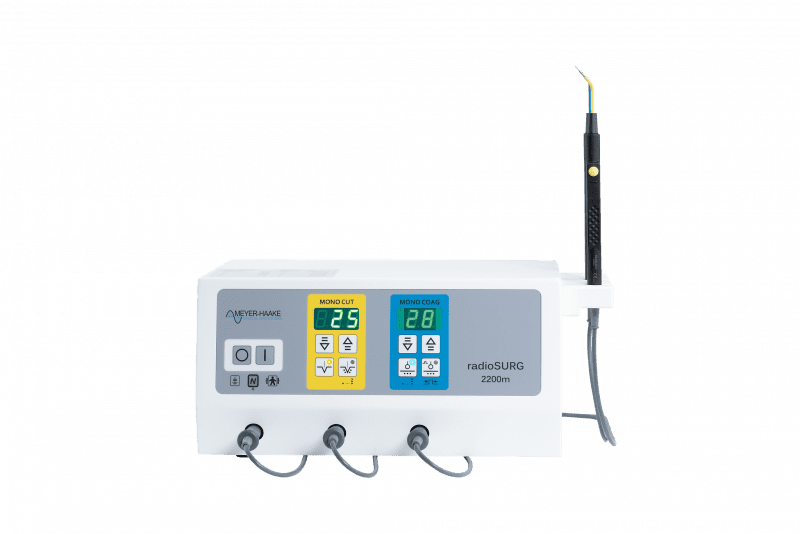

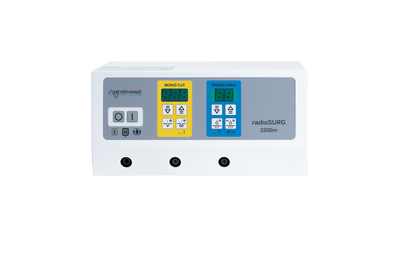

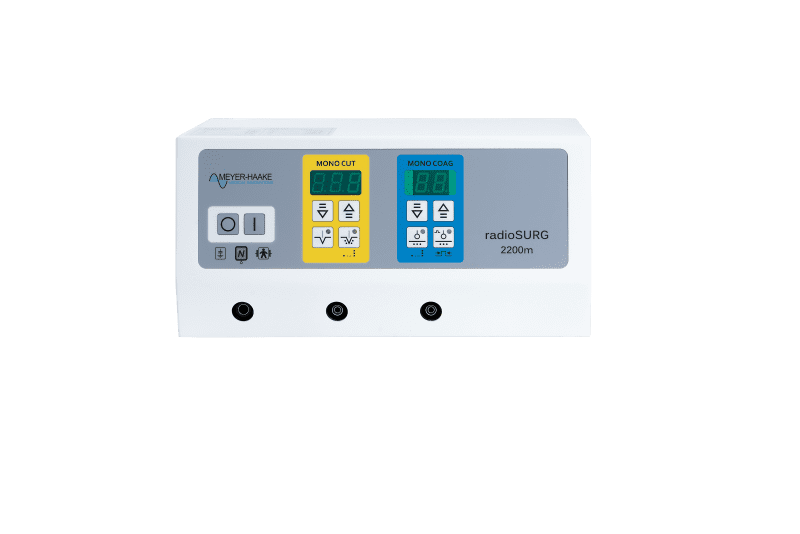

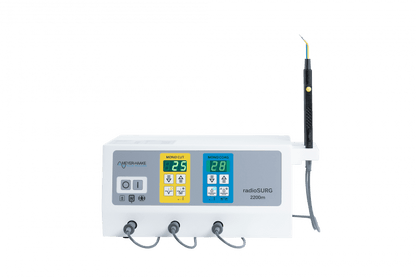

radioSURG® 2200 M

The radioSURG® 2200 M from Meyer-Haake is a professional monopolar unit for smaller, surgical interventions and enables pressureless, "cold" incisions that are particularly gentle on tissue. The use of the radiosurgery unit carries a low risk of necrosis, skin discolouration or tissue trauma. Both the intensity and the duration of coagulation can be adjusted as needed.

Product Details

• radioSURG® 2200 M from Meyer-Haake
• Professional monopolar unit for minor surgical procedures
• Enables pressureless, "cold" cuts that are particularly gentle on the tissue
• Excidates can be examined histologically without any problems
• Low risk of necrosis, skin discolouration or trauma
• Adjustable intensity (9 degrees) and duration (0.05-1 sec.) of coagulation

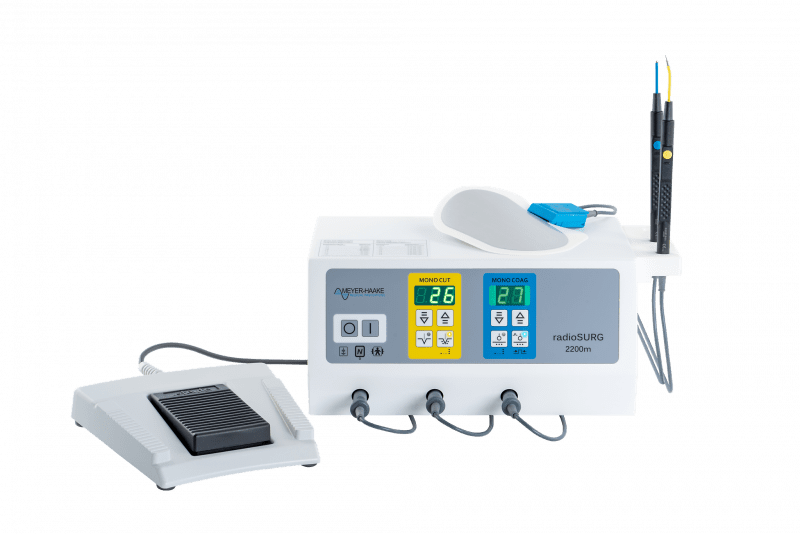

• Activation of the outputs via handpiece or foot switch
• Class IIb medical device
• Conforms to IEC 60601-2-2 standard
• Warning tone signals active HF voltage (volume adjustable as required)
• Automatic switch-off of the unit after one minute
• Made in Germany
• Manufacturer's warranty: 24 months

Suitability

• Monopolar cutting
• Monopolar cutting with simultaneous coagulation
• Monopolar coagulation, also via monopolar forceps

Technical Details

• HF frequency: 2.2 MHz
• HF power max.: cutting = 100 watts; coagulation = 90 watts
• Dimensions: 152 x 300 x 210 mm (H x W x D)
• Mass / Weight: 61 Newton / 6.1 kg
• Housing colour: white aluminium RAL 9006

Delivery Contents

• radioSURG® 2200 M
• Mains power cable
• Instructions for use (DVD)
• Medical device manual
