A6 Digital Colour Printer UP-D25MD

A6 Digital Colour Printer UP-D25MD

Regular price £1,969.19
Regular price £0.00 Sale price £1,969.19
Sale Sold out
Variant
Product overview
  • Compact A6 dye-sublimation printer
  • Low operating costs & photo-realistic image quality
  • Laminated prints are protected from environmental influences
  • Automatic cleaning function
  • Optionally available as digital or analogue variant

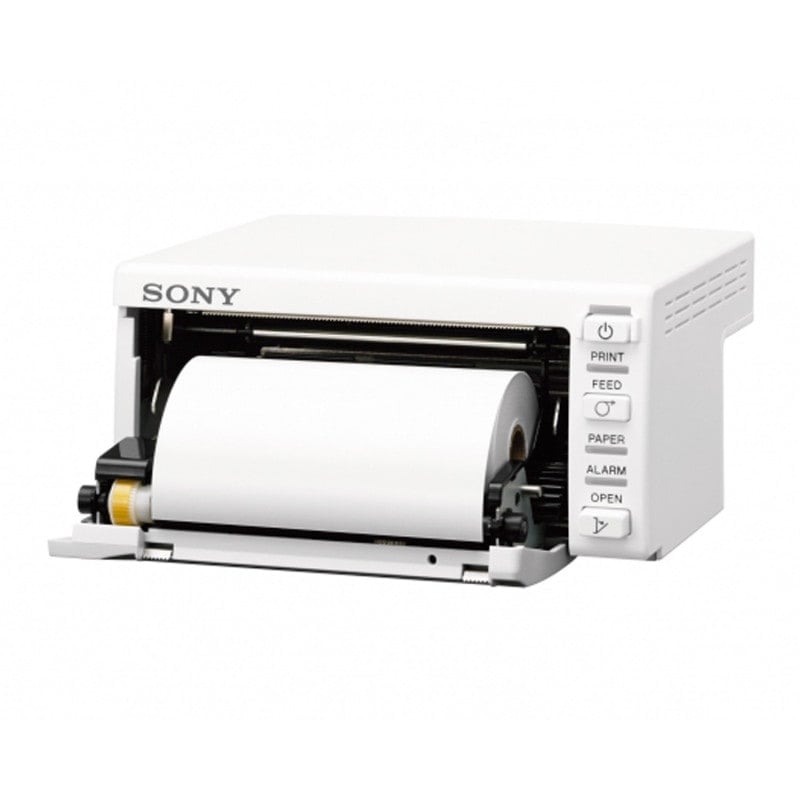

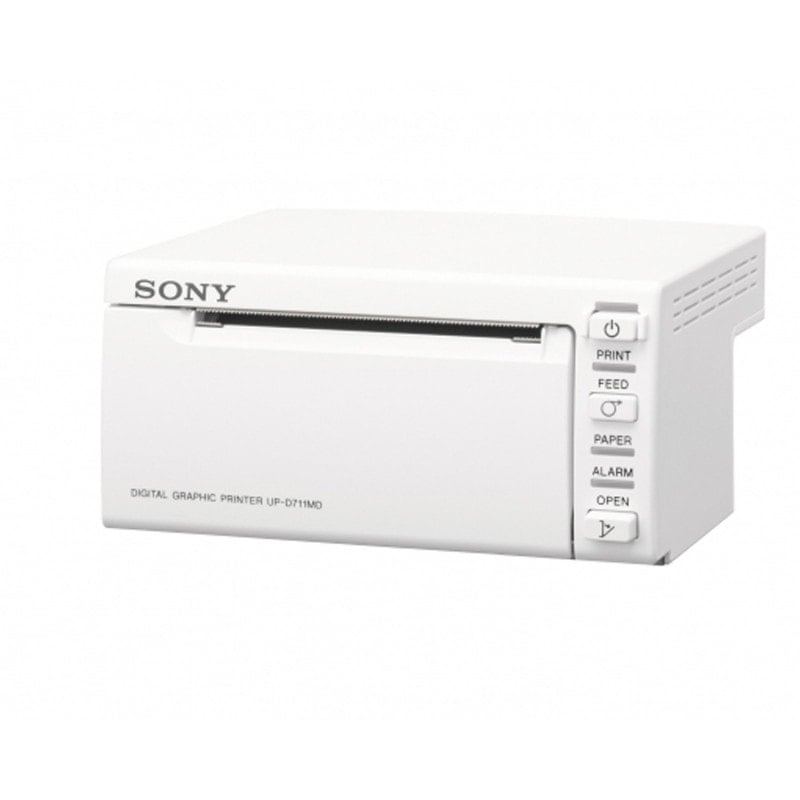

A6 Digital Colour Printer

The SONY A6 colour printer stands out due to its low operating costs, but also due to its photo-realistic image quality. Thanks to its compact design, the dye sublimation printer can be easily installed in modern endoscopy trolleys with a width of 212 mm. Since the front has the user-friendly buttons and LCD display, it is easy to operate. The printer's front-loading mechanism ensures easy replacement of consumables, including ribbon.


Long-term storage of prints is possible without deterioration thanks to the innovative lamination technology. Laminating prints helps to ensure that they are heat and light resistant and also protected from water, moisture and smudges such as fingerprints. In addition, the printouts also feature an accurate reproduction of the colours displayed on surgical screens. The HSV function additionally ensures adaptation of certain colours.


The innovative SONY A6 colour printer is available as a digital (UP-D25MD) or analogue (UP-25MD) version.


Product Details

  • SONY A6 colour printer
  • Extra compact A6 dye-sublimation printer
  • Features low operating costs and photo-realistic image quality
  • Medical device, meets product safety standards such as IEC 60601-1
  • Can be installed in modern endoscopy trolleys with a width of only 212 mm
  • With a user-friendly LCD display and front panel control buttons
  • Ensures durable prints thanks to lamination technology
  • Prints are light and heat-resistant and protected from water
  • Storage of printouts without any signs of deterioration
  • Intelligent ink to sheet consumption technology calculates ink consumption per page
  • Easy replacement of consumables using the front loading mechanism
  • Exact reproduction of the colours shown on surgical screens in the printout
  • Compatible with UPC-21L and UPL-21S media
  • Colour adjustment as required for image optimization possible
  • HSV function ensures matching of certain colours
  • Wireless printing using the optional UPA-WU10 printing system
  • Automatic cleaning function extends intervals of manual cleaning
  • Display of one, two or four images on one printout adjustable
  • Optionally available in analogue or digital version

Technical Details


UP-D25MD (digital) UP-25MD (analogue)
Printing Method Thermal dye-sublimation printing
Resolution 423 dpi
Colour Gradation > 16.7 million colours, 256 levels each (8 bit) for cyan, magenta and yellow
Picture Elements UP-21L/24LA: 2100 x 1600 pixels
UP-21L/24SA: 1600 x 1200 pixels
UP-21L/24LA: 2132 x 1600 Pixels
UP-21L/24SA: 1600 x 1260 pixels
Picture Area UP-21L/24LA: 126.0 x 96.0 mm
UP-21L/24SA: 96.0 x 72.0 mm
UP-21L/24LA: 127.9 x 96.0 mm
UP-21L/24SA: 96.0 x 75.6 mm
Printing Time UP-21L: approx. 29 seconds; UP-21S: approx. 19 seconds; UP-24LA: approx. 36 seconds; UP-24SA: approx. 25 seconds
TV coding system - PAL/NTSC (via switch on the unit)
HDTV IN/OUT signals - 1080I/59.94I, 1080/50i (2:1 Interlace), 720/59.94p, 720/50p (progressive)
Paper capacity Size L: max. 50 sheets; size S: max. 80 sheets
Interface High-speed USB (USB 2.0) type B RGB/U/Pb/Pr (BNC) (3 x): 0.7 Vp-p, SYNC ON G: 0.3 Vp-p, negative Sync.,
SYNC (BNC) (1 x): 0.3 bis 4 Vp-p, negative Sync.,
S VIDEO (Mini DIN, 4-pole) (1 x): Y: 1 Vp-p. negative Sync., C: 0.286 Vp-p (NTSC),
0.3 Vp-p (PAL), VIDEO (BNC) (1 x): 1 Vp-p, negative Sync

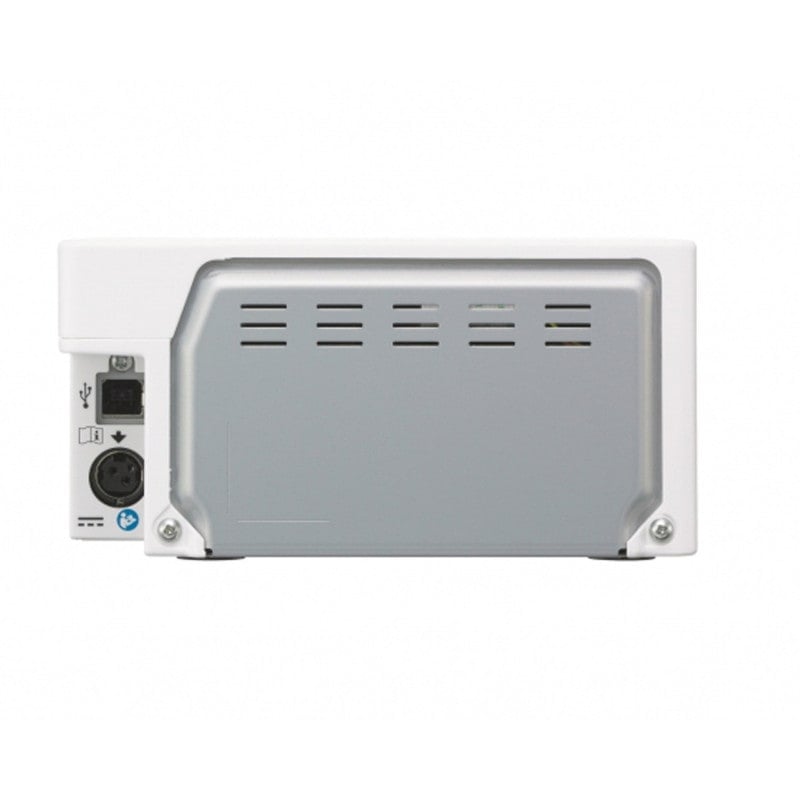

Connections/Remote control - REMOTE (automatic printer connection): stereo jack socket: (1 x) for optional remote control. RM-91 or FS-24 foot switch, RS-232C (computer control interface): D-sub connector, 25-pin (1 x)
Operating Voltage 100 to 240 V AC, 50/60 Hz
Input Current 1.7 to 1.0 A
Operating temperature 5 °C to 35 °C
Operating Humidity 20 % to 80 % (non-condensing)
Dimensions 212 x 98 x 398 mm (W x H x D)
Weight 5.5 kg
5.7 kg
Safety Regulations (US/CA) UL 60601-1, UL 60950-1, CSA C22.2 No. 601.1, CSA C22.2 No. 60950-1, (EU) EN 60601-1-1, EN 55022 (Class B), EN 55024, EN 61000-3-2, EN 61000-3-3, (AU) EN55022 Class B, (JP) VCCI Class A, JIS C 61000-3-2
EMC standards (US/CA) FCC Part 15 Subpart-B Digital Device Class A, ICES-003 Klasse A Digitalgerät, (EU) EN 6061-1-2, EN 55022 (Klasse B),EN 55024, EN 61000-3-2, EN 61000-3-3, (AU) EN55022 Class B, (JP) VCCI Class A, JIS C 61000-3-2
EC Directives (EU) MDD, EMC, LVD


Delivery Contents

UP-D25MD UP-25MD
CD-ROM (with printer driver and user manual), input/output signals for HDTV 1080i/59.94i, 1080/50i (2:1 Interlace) 720/59.94p, 720/50p (Progressive), instructions for using the printer, paper tray, stopper, cleaning cartridge, USB cable
CD-ROM (with operating instructions), input/output signals for HDTV 1080i/59.94i, 1080/50i) (2:1 interlace) 720/59.94p, 720/50p (Progressive), Instructions for using the printer, paper tray, Cleaning cartridge
