AngE™ Basic ABI OPO (arterial)

• Simultaneous ABI with PPG in less than 2 minutes
• Captures ABI, TBI, toe pressure and PWV
• Mobile, USB-powered device
• Can be upgraded for venous examinations
• Incl. patient management & reporting software

AngE™ Basic ABI

The AngE™ Basic ABI from SOT Medical Systems is a compact and versatile 2-channel optical sensor paired with manual pressure cuffs. It measures ABI, TBI, toe pressure, PWV, pulse rise time, skin temperature and simultaneous left and right PPG pressures in under 2 minutes.

This enables not only thoracic outlet syndrome tests, but also assists in the evaluation of various arterial circulatory disorders. After applying the sensors and cuffs, the measurement starts automatically. Highly sensitive pressure sensors and precise algorithms ensure detailed and virtually unfiltered display of pulse curses. The system can be upgraded for venous examinations if required.

Already own an AngE™ Basic ABI and want to upgrade it for venous examinations? Discover the optional upgrades here.

Please Note: This product requires instruction. Please contact us at the e-mail address einweisung@Orange Medical.de to arrange a training appointment.

Product Details

• AngE™ Basic ABI from SOT Medical Systems

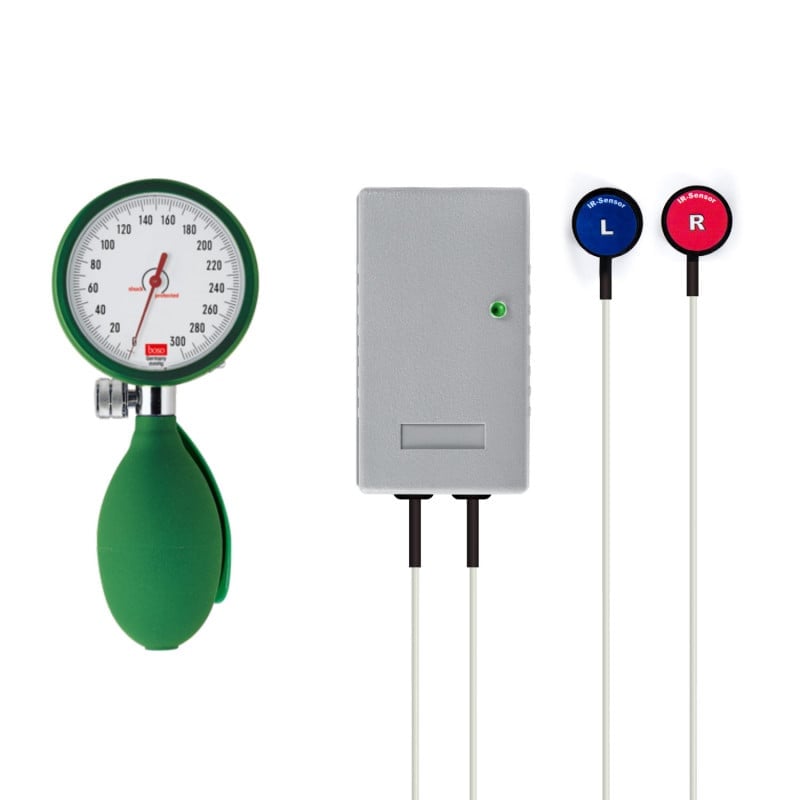

• 2-channel optical sensor combined with manual pressure cuffs
• For fast and accurate ABI and TBI measurement
• For measuring simultaneous ABI with PPG in less than 2 minutes
• Captures ABI, TBI, toe pressure, PWV, pulse rise time and skin temperature
• Measures microcirculation in toes & fingers (OPO)
• Thoracic outlet syndrome testing (TOS)
• Enables effective evaluation of arterial circulatory disorders
• Built-in comparison tool for conducting stress tests
• Flexible and USB-powered system
• Upgradeable for venous tests if required
• Also configurable for performing Palmar Arch/Allen tests

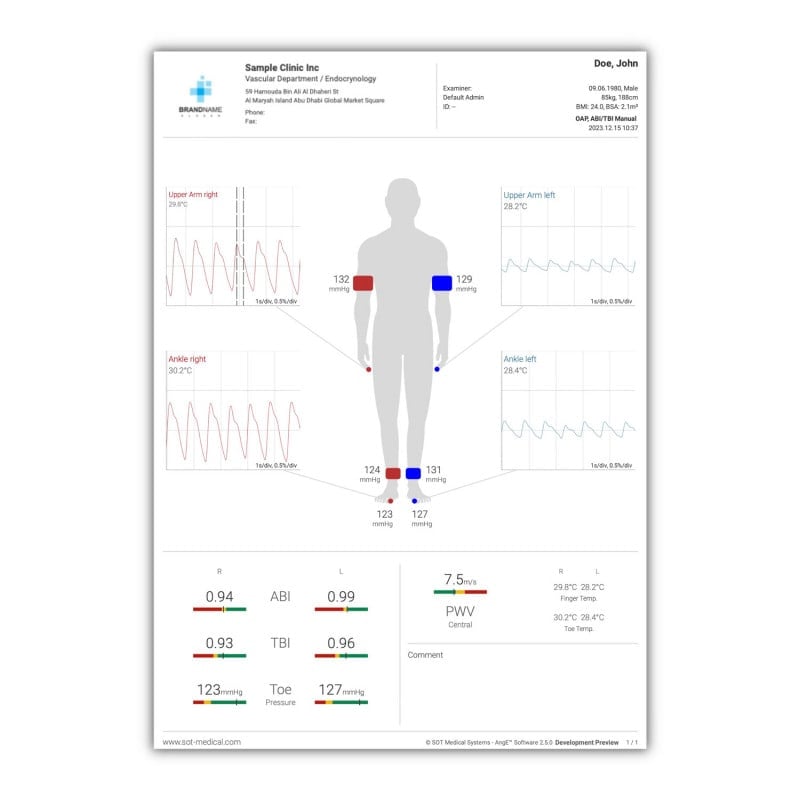

• Easy report creation in PDF format
• Includes manometer, upper arm, ankle, and toe cuffs

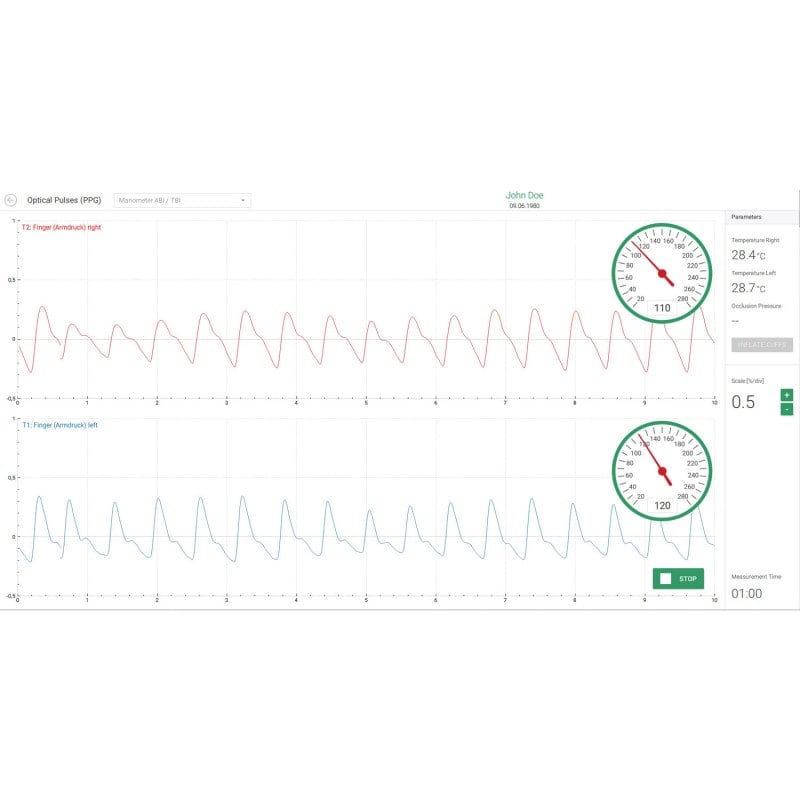

• Highly sensitive sensors & precise algorithms for vitually unfiltered display of pulse curses
• Cuffs measure all vessels and collaterals simultaneously
• Direct left and right comparison to detect side differences in timing and amplitude
• User-friendly software for for direct comparisons pre- and post-intervention
• Patient management and reporting software compatible with macOS and Windows
• GDT, DICOM & HL7 interfaces allow for easy integration
• Class IIa medical device
• LEDs indicate the current operating status
• Developed, produced & tested to the highest quality standards in Austria
• Available as a single or combined device for arterial and venous examinations
• Intended for use by trained professionals only
• Device dimensions: approx. 5.1 x 2.5 x 9.5 cm
• Sensor dimensions: approx. ø 1.8 x 1.1 cm
• Weight: approx. 120 g

Measurement Parameters

Minimum PC Requirements

• Operating system from Windows 10 or from macOS 10.15
• Intel Core i3 (or equivalent)
• 2 GB RAM
• 100 MB free hard disk space for installation
• Approximately 5 GB / year¹ hard disk space for the database
• Screen resolution of 1920 x 1080 (Full-HD) recommended
• Free USB 2.0 interface
• Network connection 100 Mbit (for use of software interfaces)

Package Contents

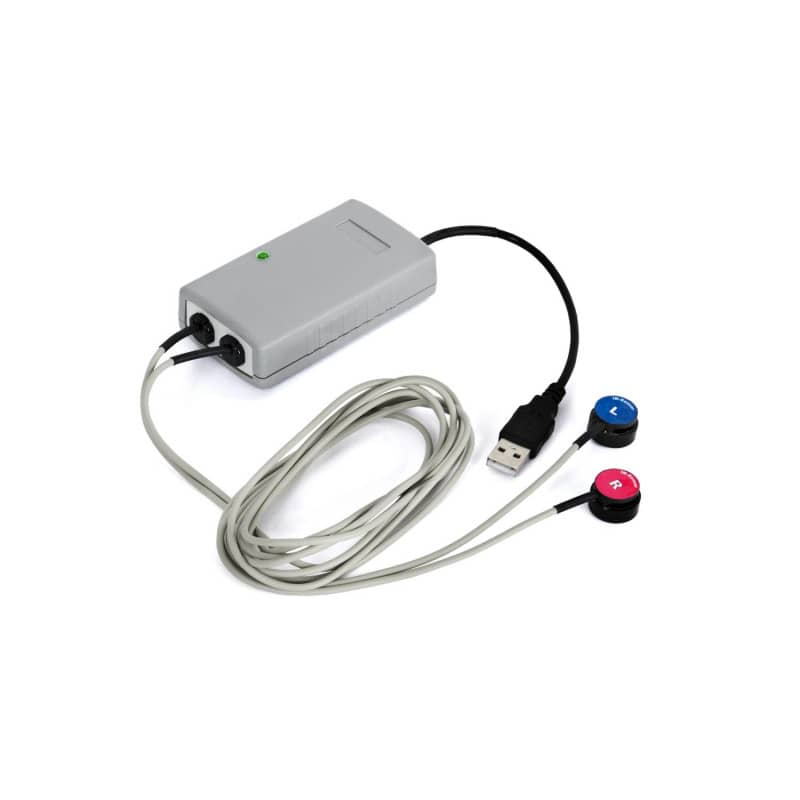

• AngE™ Phlebo 2-Channel PPG with temperature probes

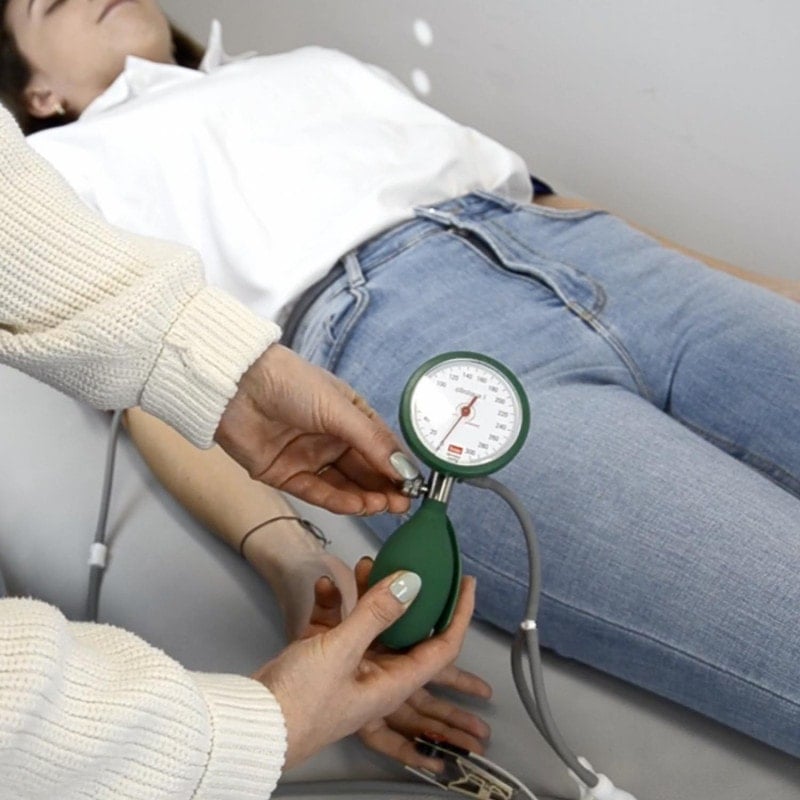

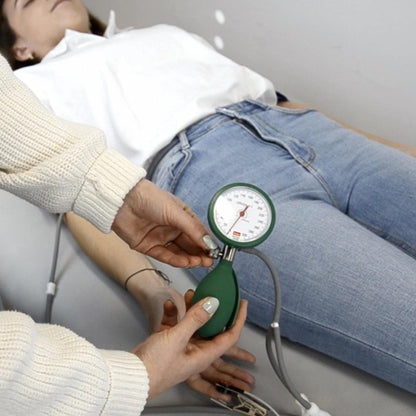

• Manometer with dual-hose connection

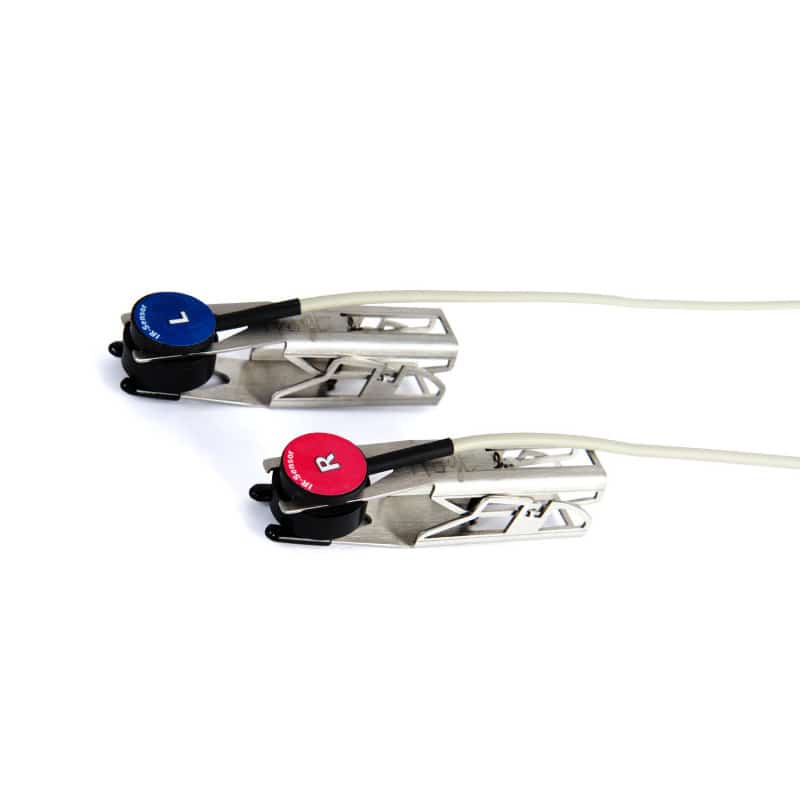

• 2 sensor clips

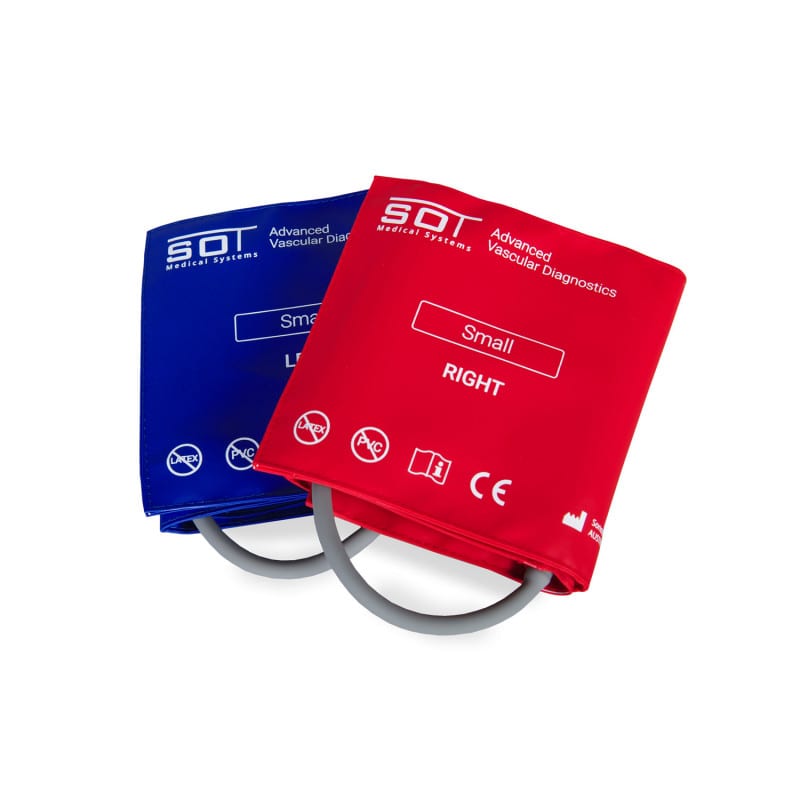

• 1 pair of upper arm cuffs
• 1 pair of ankle cuffs

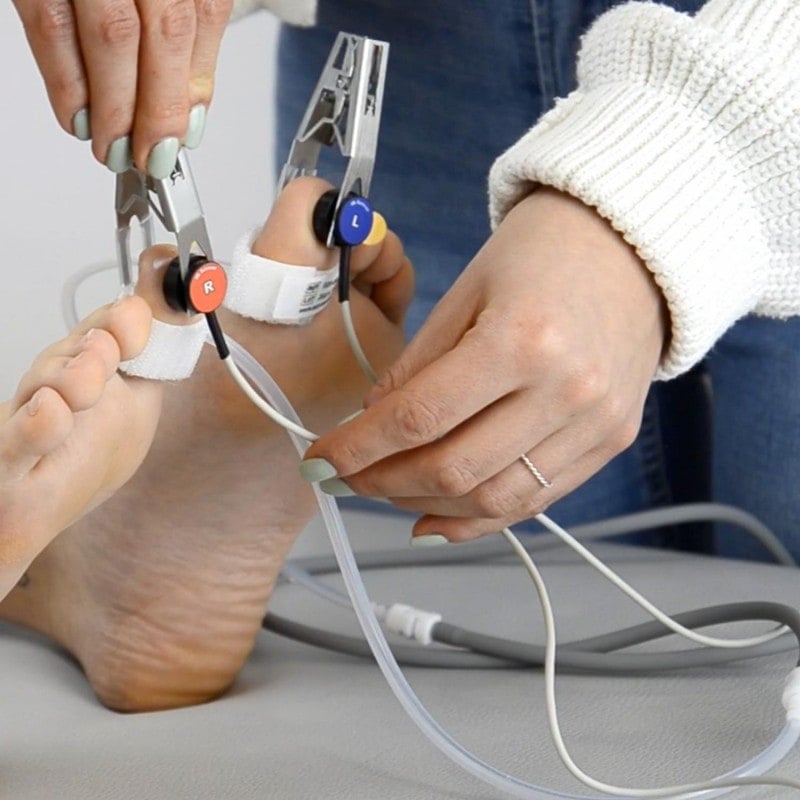

• 1 pair of toe cuffs
• 500 adhesive rings

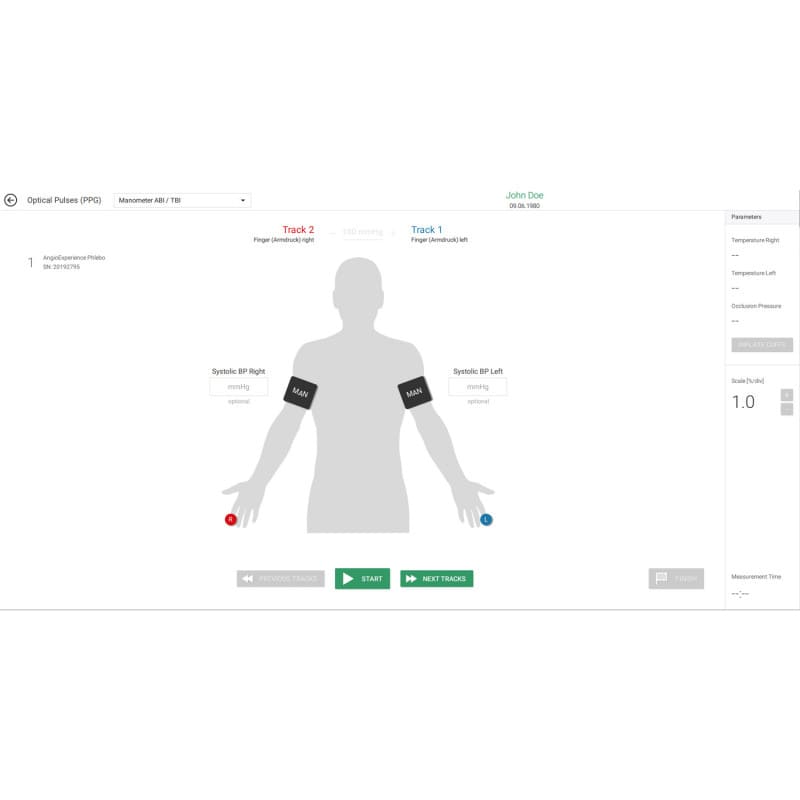

• AngE™ software

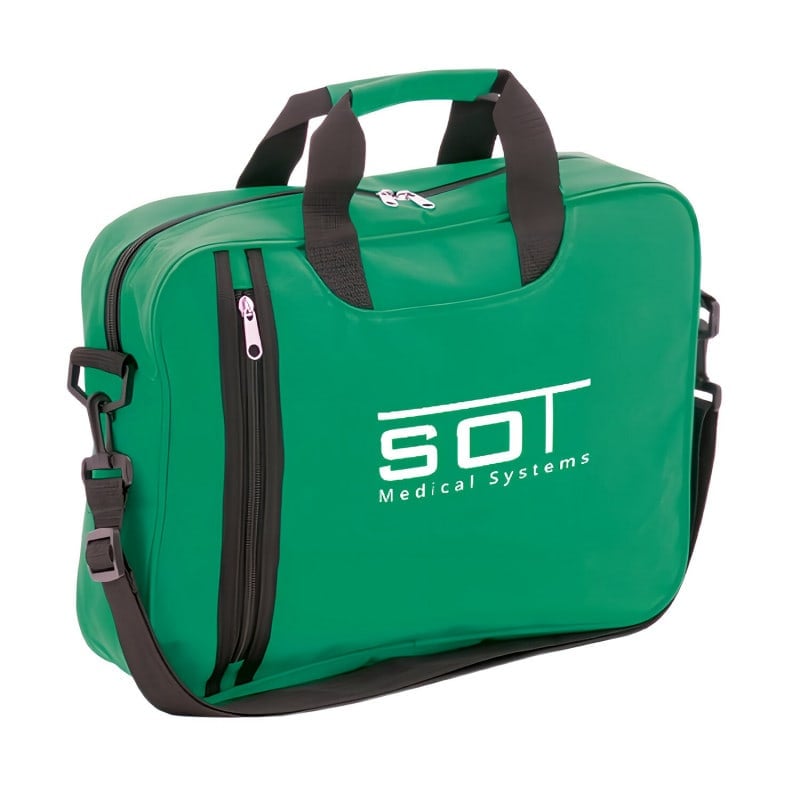

• Carry bag

¹ Calculated at 1MB per patient with approximately 20 patients per day. Values may vary significantly depending on the type, duration, and frequency of measurements.

² Network connection required when using software interfaces.
