AngE™ Phlebo

AngE™ Phlebo

£4,142.52
£0.00 £4,142.52
Sale Sold out
Product overview
  • USB-powered 2-channel D-PPG/LRR device
  • Results displayed in simple traffic light display
  • Approved as a class IIa medical device
  • Includes management & analysis software
  • Can be upgraded for arterial examinations

AngE™ Phlebo

The compact and versatile AngE™ Phlebo 2-Channel D-PPG/LRR Device from SOT Medical Systems is designed for performing simultaneous venous function tests to assess venous valve insufficiency and muscle pump function. The USB-powered system calculates not only pump volume but also venous fill time and venous half-life. The collected results are displayed in an easy-to-interpret traffic light display. The included software allows for secure patient management and analysis.



Product Details

  • AngE™ Phlebo from SOT Medical Systems
  • USB-powered 2-channel D-PPG/LRR device
  • Designed for performing venous measurements in a compact design
  • Allows simultaneous measurement of venous function
  • Enables assessment of muscle pump and venous valves
  • Muscle pump function allows measurement during movement/exercise
  • Calculates pump volume (V0), venous fill time (T0) and venous half-life (T50)

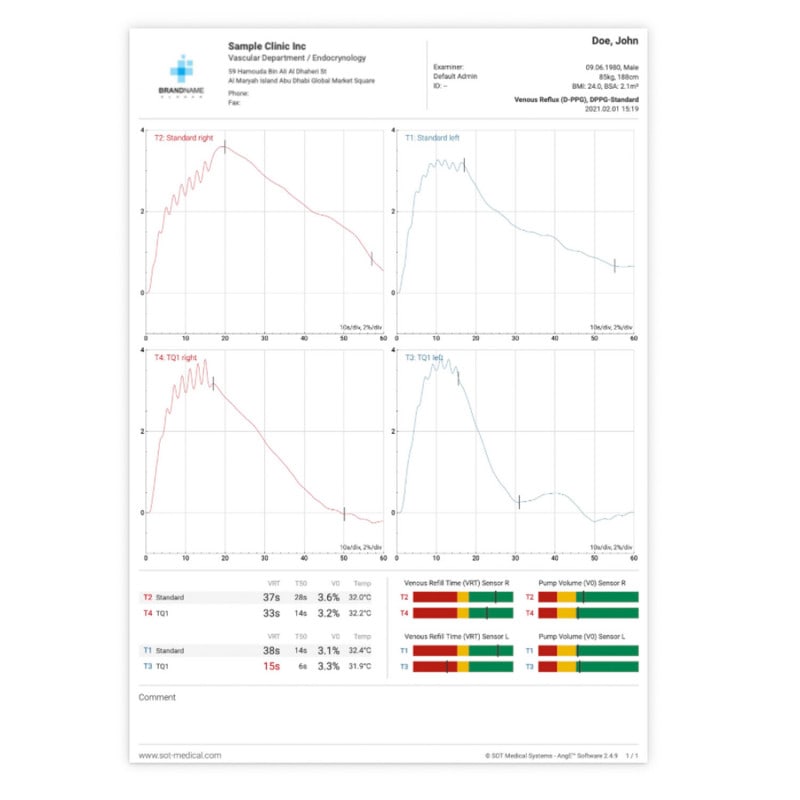

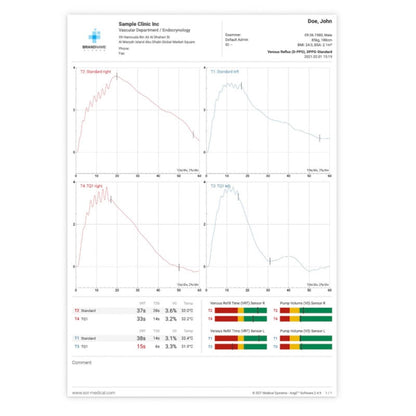

  • Simple display of results in a traffic light display
  • Valuable tool for quick diagnosis of venous valve insufficiency
  • Supports the use of a set of tourniquet cuffs
  • Distinguishes between superficial and deep venous problems
  • Bilateral sensors capture & compare skin temperature during measurement

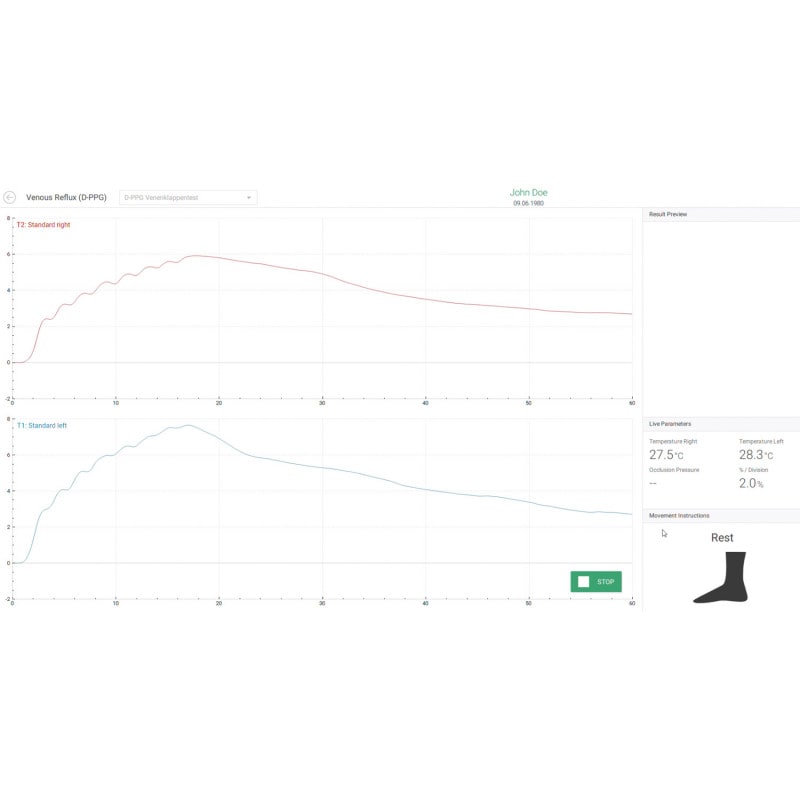

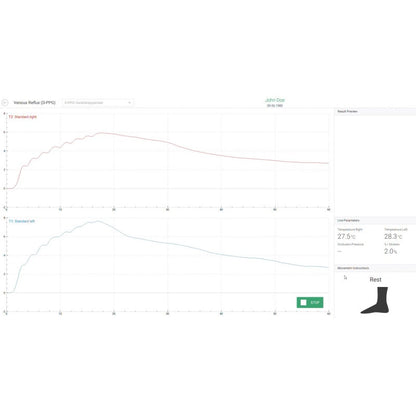

  • Includes software for management and analysis
  • Upgradeable for arterial examinations if required
  • LEDs indicate the current operating status
  • Class IIa Medical Device approved
  • DICOM/HL7/GDT interface optional
  • For use by trained personnel only
  • Developed, produced and tested in Austria to the highest quality standards
  • Device dimensions: approx. 5.1 x 2.5 x 9.5 cm
  • Sensor dimensions: approx. ø 1.8 x 1.1 cm
  • Weight: approx. 120 g



Measurement Parameters

Measurement Method Optical, reflection
Wavelength 940nm
Pulse Duration 250μs
Period Duration 500μs
Spectral Irradiance Max. 2W/m1 @ 940nm
Resolution 12 Bit
Sampling Rate 100 samples / s
Display Sensitivity 0.013 – 8%/div2
Temperature +/- 3°C (20 – 40°C)
0.1°C display resolution



Minimum PC Requirements

  • Operating system from Windows 10 or macOS 10.15 onwards
  • Intel Core i3 (or equivalent)
  • 2 GB RAM
  • 100 MB free hard disk space for installation
  • Approx. 5 GB / year1 hard disk space for the database
  • Screen resolution of 1920 x 1080 (Full-HD) recommended
  • Free USB 2.0 port
  • Network connection 100 Mbit (for use of software interfaces)

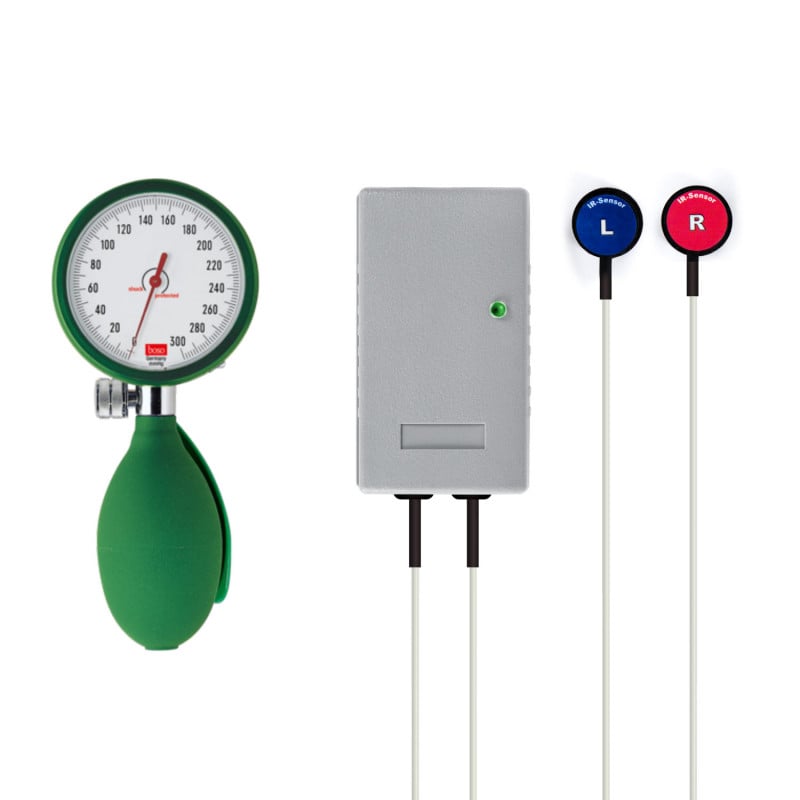

Package Contents

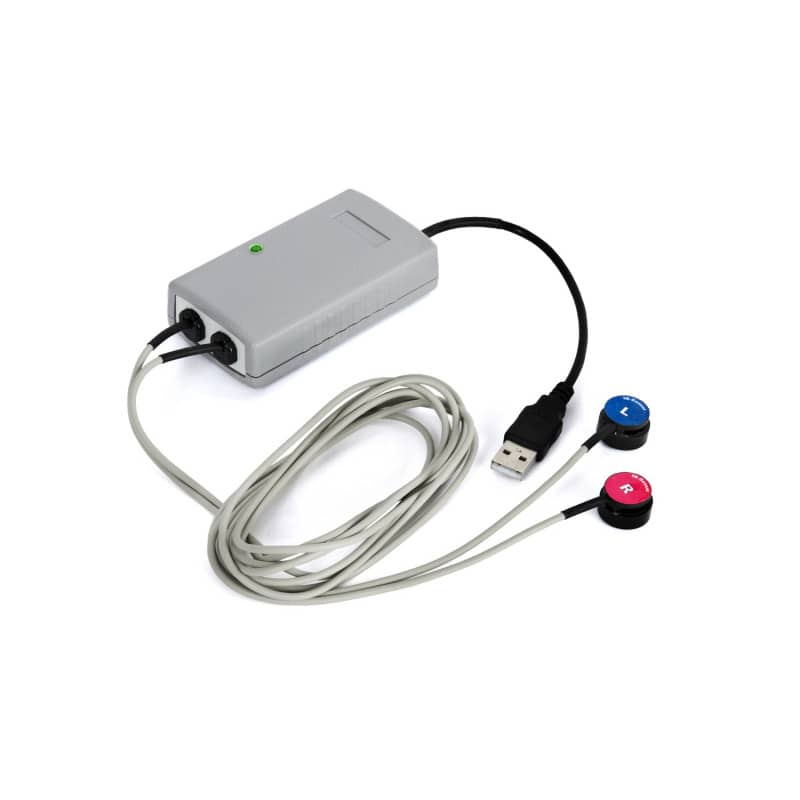

  • AngE™ Phlebo 2-channel PPG with temperature probe
  • Tourniquet cuffs
  • Manometer with dual-hose connection
  • Carry bag
  • 500 Adhesive rings
  • AngE™ software
  • User manual



1 Calculated at 1MB per patient with approximately 20 patients per day. Values may vary significantly depending on the type, duration, and frequency of measurements.

2 Network connection required when using software interfaces.
