BenQ 27" 4K UHD Surgical Display
BenQ 27" 4K UHD Surgical Display
Couldn't load pickup availability
- High colour accuracy according to BT.2020 standards
- Clone Out feature via a single 12G-SDI connection
- Protected from electromagnetic interference
- Automatic color temperature & gamma curve adjustment
- Multi-image layouts, mirroring and rotation functions
BenQ 27" 4K UHD Surgical Display
The BenQ 27" 4K UHD Surgical Display features innovative image enhancement functions that enable customized image quality tailored to each situation. With the 12G-SDI interface, the display can be duplicated over a network as needed. In addition, the medical-grade monitor provides additional protection against electromagnetic and radiofrequency interference. The monitor stands out for its high color accuracy according to BT.2020 standards, ensuring optimal detail recognition.
The dual-source display feature enables the input of images from two different sources into two seperate windows. Multi-image layouts, as well as mirroring and rotation functions, allow for personalized viewing. Various users can save individualized settings for various imaging parameters and select them with a single button press for quicker adjustment. The unique housing design allows for optimal alignment and the treated surfaces prevent the growth of microbes.
Product Details
- BenQ 27" 4K Ultra-HD Surgical Monitor
- Optimal detail recognition thanks to high color accuracy according to BT.2020 standards

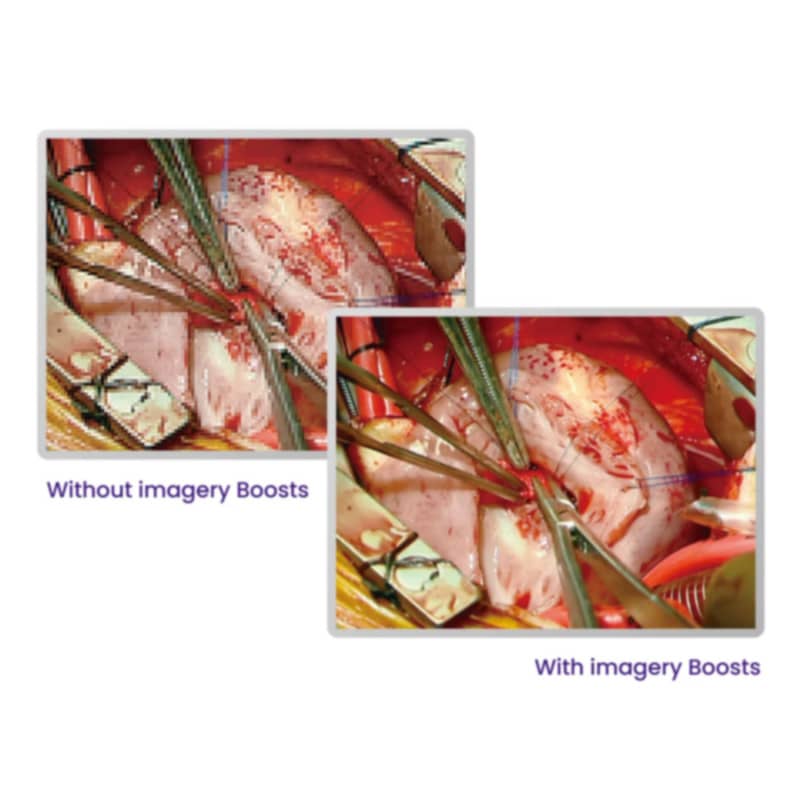

- Image enhancement functions allow for customized image adjustment
- 12G-SDI interface supports screen duplication
- Protected against electromagnetic and radiofrequency interference
- Seamless use of backup signal source during power interruption or outage
- Parallel display of two images in different windows possible
- Automatic adjustment of color temperature and gamma curve for individual images
- Personalized customization with multi-image layouts, mirroring, and rotation functions
- Individual settings can be saved for various applications
- Highly user-friendly interface
- Unique housing design with easy-to-clean surface
- Double anti-reflective coating enhances light transmission
- Front IP45 water-resistant, back IP32 water- & dust-resistant
- Treated surface reduces the growth of microbes and more

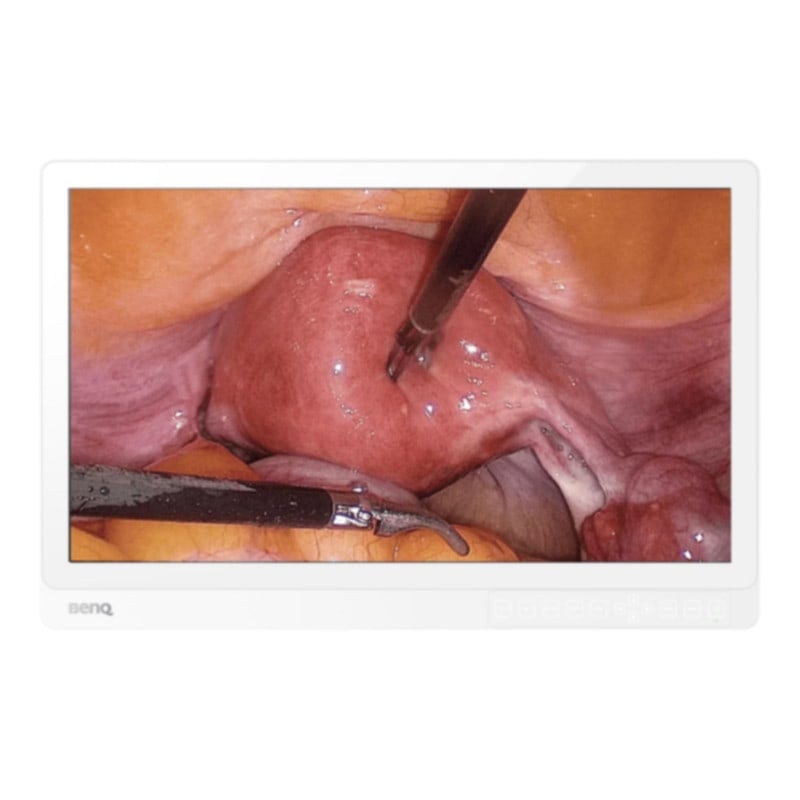

- Delivers high-resolution images during endoscopy or radiological imaging
Technical Specifications
| Display | |
| Type | TFT AM LCD |
| Backlight | LED |
| Size (diagonal) | 27" (684 mm) |
| Dimensions | 596.16 x 335.34 mm |
| Resolution | 3840 x 2160 (UHD) |
| Viewing Angle | 178° / 178° |
| Brightness | 800 cd/m2 |
| Contrast Ratio | 1000:1 |
| Color Depth | 1.07 Billion |
| Color Space | BT.709/DCI-P3/BT-2020 |
| Inputs | |
| DVI | 1x DVI-D |
| HDMI | 1x |
| DisplayPort | 1x |
| SDI | 3x 3G-SDI (BNC) 1x 12G-SDI (BNC) |
| Outputs | |
| DVI | 1x DVI-D |
| SDI | 1x 3G-SDI (BNC) 1x 12G-SDI (BNC) |
| SDI Duplication | 1x 12G-SDI (BNC) |
| DC Output | 1x 5V Output (up to 2A) |
| Control Inputs | |
| Serial Remote | 1x RJ-45 |
| Service Port | 1x Upstream, USB 2.0 Type B Port |
| Power Supply | |
| Power Consumption | DC 24V, 6.6A |
| Power Usage | 125W (Maximum) |
| Design | |
| Display Protection | Double Anti-reflective Coating |
| Waterproof Rating | IP45 (Front); IP32 (Back) |
| Dimensions | 657 x 430 x 77.5 mm |
| Weight | Approx. 8.9 kg |
| Operating Conditions | |
| Operating Temperature | 0 to +35 °C |
| Operating Humidity | 20-80% (non-condensing) |
| Atmospheric Operating Pressure | 700-1060 hPa |
| Package Contents | |
| Power Adapter, Power Cable, DVI-D Cable, HDMI Cable, DisplayPort Cable, User Manual (CD), Quick Start Guide, Screen Stand, Cable Clamping Set, Cable Cover | |
