Carebox Green
Carebox Green
Couldn't load pickup availability
- For reprocessing up to 8 prophylaxis instruments
- Specially developed for the Careclave® 4-in-1 solution
- Automatic recognition of the Carebox variant
- Individually configurable thanks to various adapters
- For torque wrenches, prophylaxis handpieces & ultrasonic scaler tips

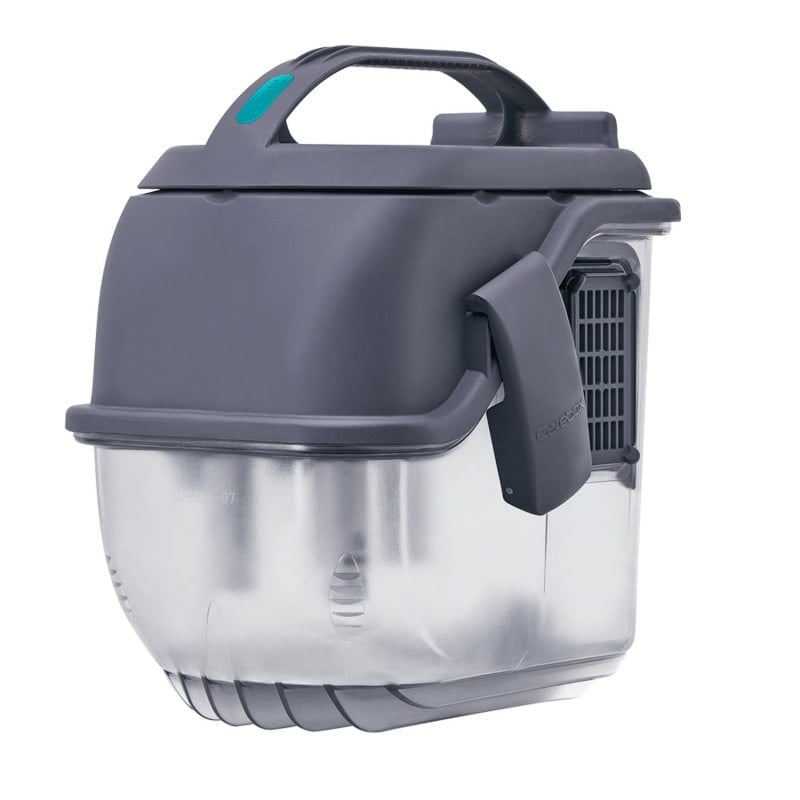

Carebox Green

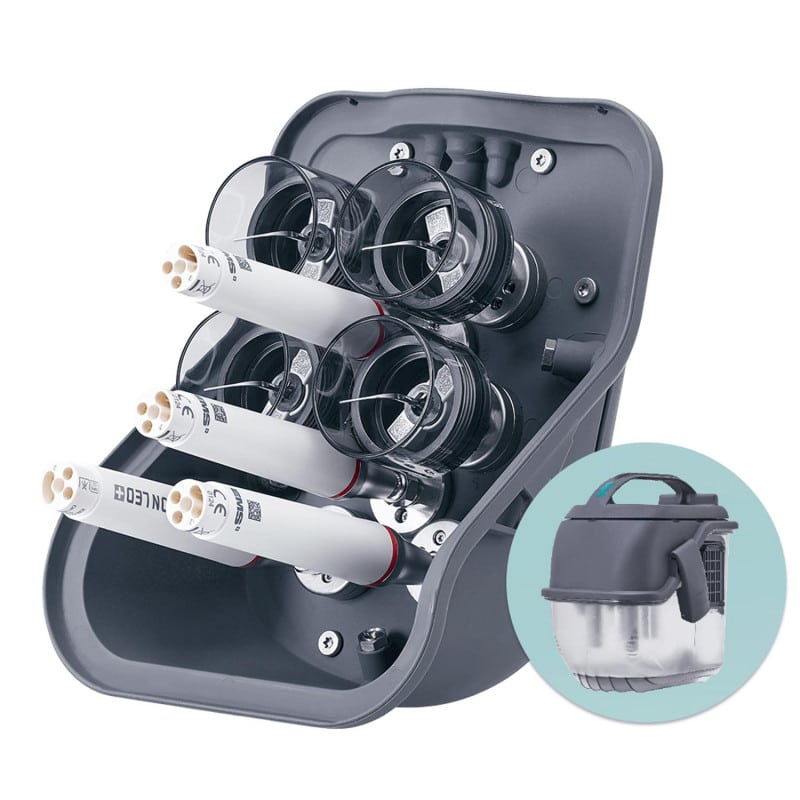

The Carebox Green from Melag is used for reprocessing up to 8 prophylaxis handpieces, ultrasonic scaler tips or torque wrenches and can be configured individually and according to one's own needs thanks to an extensive selection of adapters.
With the help of the patented CareboxConnect technology, the Careclave® automatically recognises whether the green or blue Carebox has been inserted and optimally adjusts the program selection according to the load. Depending on the requirements, there are various loading options. It is possible to load the Careclave® exclusively with long trays, a combination of Carebox and narrow trays or the Carebox alone.
In urgent cases, loading just the Carebox is the ideal solution, as the instruments inside are ready for use again after only 16 minutes.
Product Details
- Carebox Green from Melag
- For safe reprocessing of up to 8 hollow instruments
- Compatible with the Careclave® 4-in-1 solution
- Automatic recognition of the Carebox variant (Green or Blue)
- Perfect program selection for the respective load
- Individually configurable thanks to various adapters
- Suitable for prophylaxis handpieces, ultrasonic scaler tips and torque wrenches
- Combined loading with tray holder 4+2 or 6+2 possible
- Delivery: 1 Carebox Green without adapter
Adapters for Carebox Green
Discover the adapters for the Carebox Green available in our shop|
Adapters for tips | |
| M3.0 x 0.5 mm, external thread | e.g. for KaVo SONOsoft, Piezo LUX; EMS Piezon / Piezon LED; W&H Piezo Scaler; Tigon, Tigon+, Pyon 2 Surgery, Piezomed; Komet PiezoLine EM1, KA1, KA2; NSK Varios EMS; Mectron Multipiezo |
| M3.0 x 0.35 mm, external thread | e.g. for KaVo PiezoLED, PiezoSoft |
| M3.0 x 0.6 mm, external thread | e.g. for Acteon (Satelec) Newtron, Suprasson; Ultradent Newtron; Hu-Friedy Piezo S-Serie; NSK Varios NSK, Satelec |
| M3.5 x 0.35 mm, external thread | e.g. for Planmeca LM-ProPower |
| M3.5 x 0.6 mm, internal thread | e.g. for Sirona SIROSON, SIROSONIC, PerioSonic; Komet PiezoLine SI1; Dürr Vector Scaler; Morita Softy / Softy LED |
| M3.6 x PH1.5 P0.5 mm, internal thread | e.g. for KaVo SONICfl ex quick 2008 |
| M3.0 x 0.5 mm, internal thread | e.g. for KaVo SONICfl ex 2000, 2003; Sirona SIROAIR L; W&H air scaler, Proxeo, Synea, Alegra; Komet SonicLine SF1LM; NSK air scaler Ti-Max S970, AS2000; EMS Piezon (LED) handpiece |
|
Adapters for ultrasonic scaler tips | |
| M3.0 x 0.35 mm, internal thread | e.g. for KaVo PiezoLED scaler, PIEZOsoft scaler |
| M3.0 x 0.6 mm, internal thread | e.g. for Acteon (Satelec) Newtron, Suprasson, NSK Varios, Satelec |
| M3.5 x 0.6 mm, external thread | e.g. Sirona Siroson, Sirosonic, PerioSonic |
| Further adapters | |
| For EMS AIR-Flow Prophylaxis Master | e.g. EMS EL-308 (Prophylaxis Master) |
| For EMS AIR-Flow Handy 3.0 | e.g. EMS EL-540 (Handy 3), EL-542 (Handy 3.0 PERIO), EL-545 (Handy 3.0 PLUS) |
| M8 x 1, eccentric* | Required if up to 6 torque wrenches with a diameter greater than 38 mm are to be reprocessed |
*Required if up to 6 torque wrenches with a diameter greater than 38 mm are to be reprocessed in the Carebox Green
Loading Options
1.
2.
3.
1. Long Trays
Need maximum capacity for the sterilization of your instruments? Then simply load up to 11 kg of instruments on 8 trays or 4 MELAstore Boxes into the Careclave.
2. Carebox & Trays
Want to enhance the efficiency of your staff? Then benefit from reprocessing and lubrication in the Carebox and sterilization of up to 8 trays for further instruments in just one cycle.

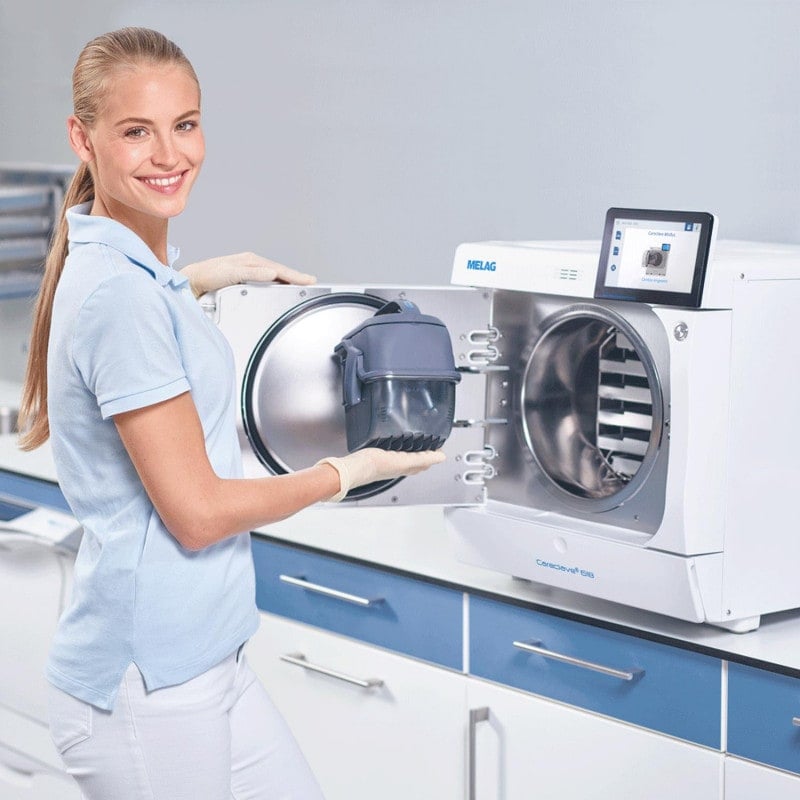

3. Carebox
Need transmission or prophylaxis instruments for the next treatment as quickly as possible? Then reprocess up to 8 hollow body instruments in your Carebox.
