Chison ECO 1 Ultrasound Machine with rechargeable battery | linear transducer (L7M-A)

• Portable black-and-white ultrasound system
• For a wide field of applications
• Available with or without rechargeable battery
• Waterproof keyboard
• With measurement and evaluation software

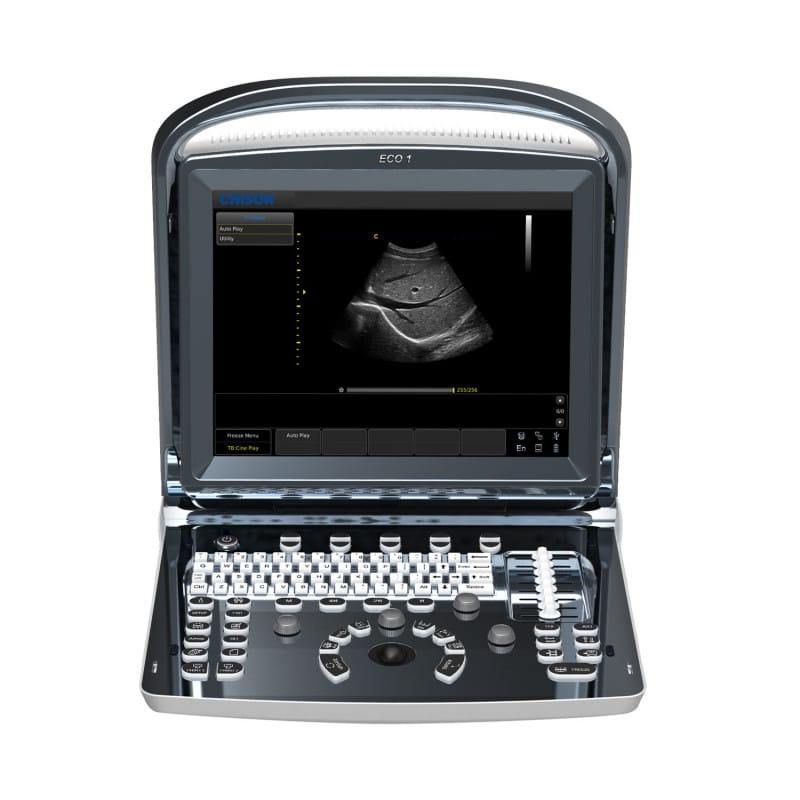

Chison ECO 1 Ultrasound Machine

The Chison ECO 1 ultrasound machine is a user-friendly, portable black-and-white ultrasound machine with a transducer connection, a monitor and a backlit keyboard. The ultrasound machine can be used with different transducers (e.g. convex, linear or micro-convex) to allow for a wide range of applications. As a result, it can be used for sonographic examinations of the abdomen, heart, lymph nodes, connective tissue and peripheral vessels.

The ultrasound machine is delivered with a convex transducer (C3-A) or a linear transducer (L7M-A) and can be bought with or without rechargeable battery. Additionally, we offer a range of accessories, like a selection of transducers, a transport bag or a foot switch.

Product Details

• ECO 1 ultrasound machine
• Black-and-white ultrasound system with compact design
• Delivery includes 1 transducer (the C3-A convex transducer (3.5MHz) or the L7M-A linear transducer)
• Compatible with different transducers (convex, linear, micro-convex)
• Real-time zoom (in 4 steps)

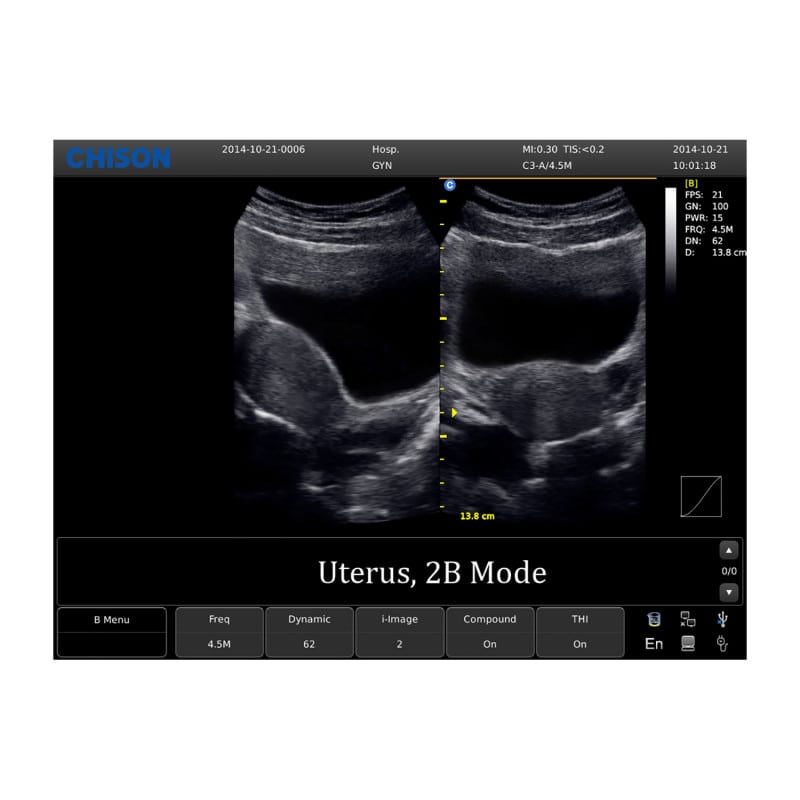

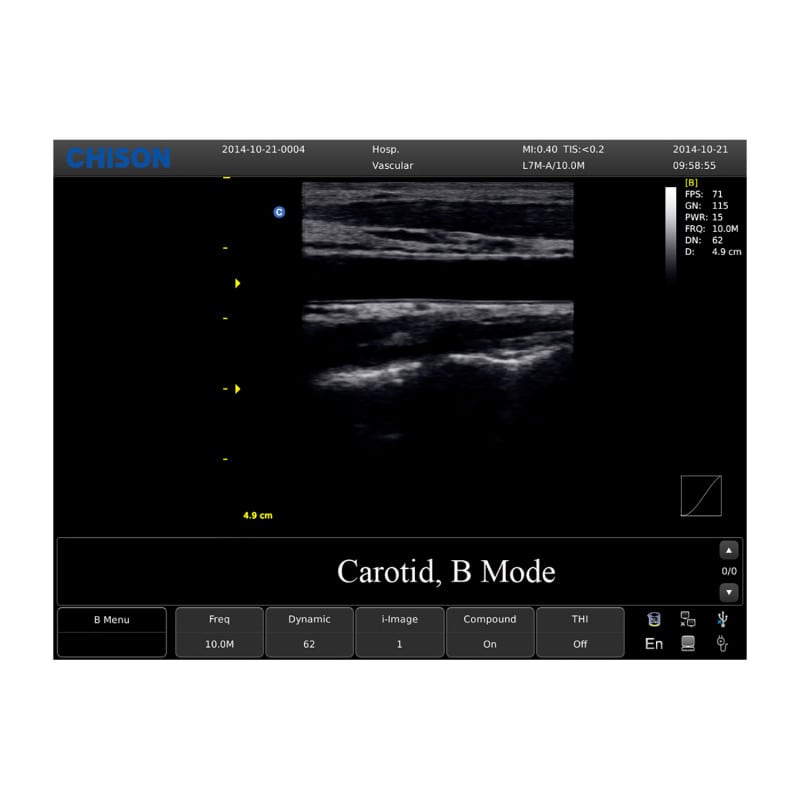

• Working modes: B/2B/4B/M/B&M
• With measurement and evaluation software
• Image formats: img and jpg
• Quick-save key
• Tiltable 12 inch monitor (up to 30°)
• Display resolution: 1024 x 768
• Alphanumerical keyboard with backlight
• With waterproof keyboard cover

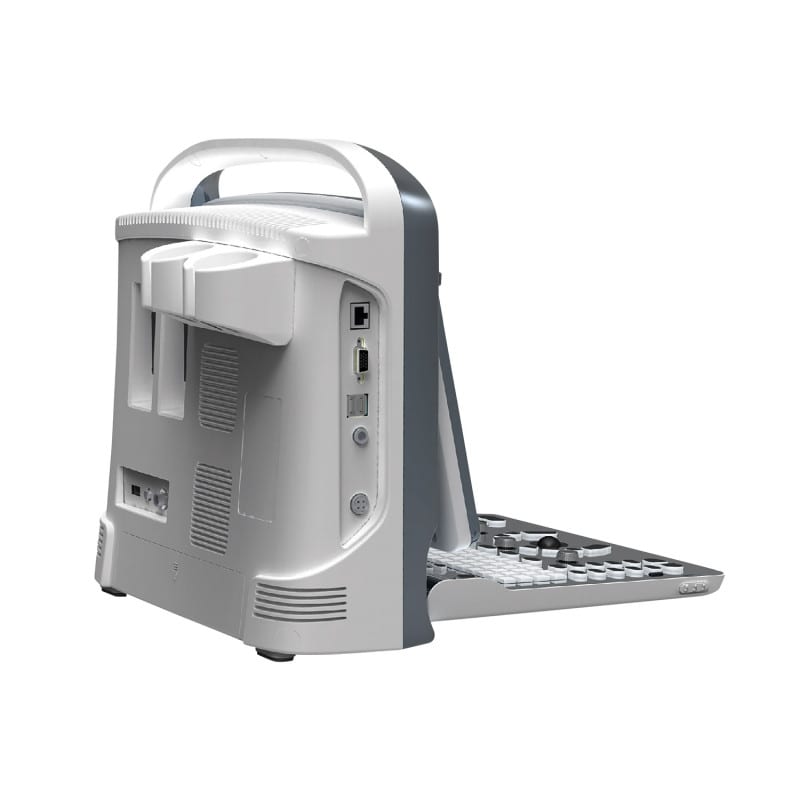

• Connectors: 1 Ethernet, 1 VGA, 3 USB, 1 video-out-port as well as 1 foot switch connector and 1 power connector
• Foot switch available optionally
• Available with or without rechargeable battery
• Slot for 1 transducer
• Multilingual software (German, English, Spanish, Italian, Portuguese, Turkish, French, Polish, Czech, Russian, Chinese)
• Dimensions: 335 x 155 x 350mm (L x W x H)
• Weight (without transducer): 6kg

Application

• Cardiology
• Abdomen
• Obstetrics
• Gynaecology
• Urology
• Vascular
• Paediatrics
