EC-3H-ABP Combined Holter System

• 3-channel ECG and oscillometric blood pressure measurement
• Rapid QRS classification and rhythm analysis
• High-quality time- and frequency-based HRV, PQ, QT, ST, PM, ABP, and AF results
• 3D motion detection
• With colour-coded graphs and tables

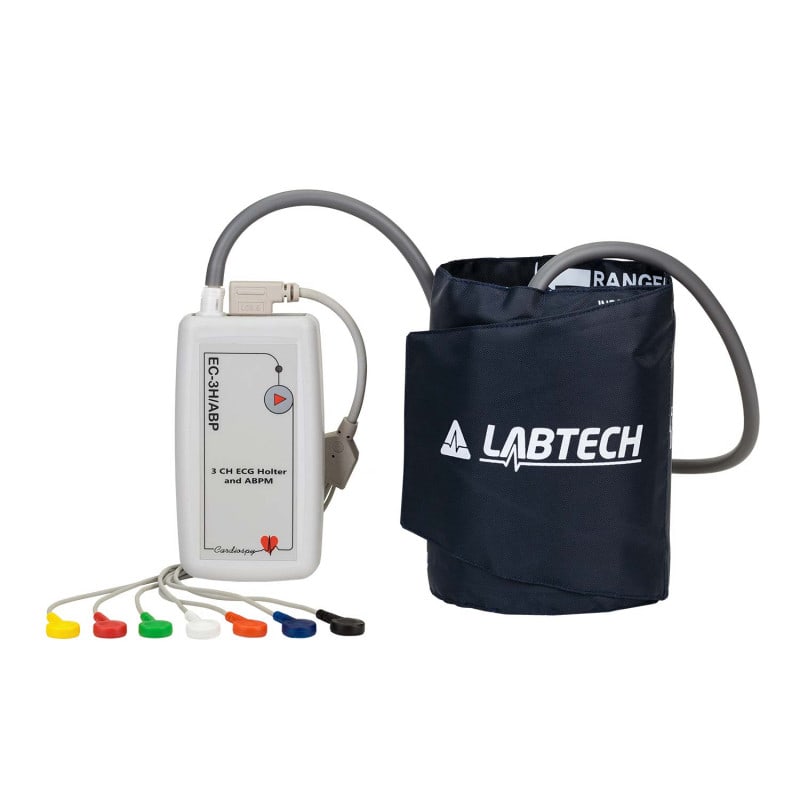

EC-3H/ABP Combined Holter System

The EC-3H/ABP Combined Holter System from Labtech combines a 3-channel ECG and an oscillometric ambulatory blood pressure monitor. The device provides fast QRS classification and rhythm analysis with high accuracy. In addition, the EC-3H/ABP's user-friendly software provides high-quality time- and frequency-based HRV, QT, PM, ABP and AF results. For a better overview, the results are displayed by means of colour-coded graphs and tables.

In addition, the integrated software can be operated in a network connection with a common database for the long-term ECG series.

Product Details

• EC-3H/ABP Combined Holter System from Labtech
• For ambulatory ECG and blood pressure measurement
• Full-disclosure ambulatory ECG
• Simple and user-friendly software
• Full disclosure of recordings
• 3-channel ECG and oscillometric blood pressure measurement
• Features pacemaker channel and analysis
• Rapid QRS classification and rhythm analysis
• High quality time and frequency based HRV, QT, ST, PM, ABP, and AF results
• 3D motion detection
• Features a patient event button
• With colour-coded graphs and tables
• Various editing and printing functions
• Rechargeable batteries
• Can be expanded with a compatible recorder
• Accessories included

Specifications

• Adjustable intervals for blood pressure measurement: 10 - 240 minutes (adjustable every minute)
• Recording time: 24, 48, 72 hours
• Measuring range blood pressure: 20 . 260 mmHg
• Measuring range pulse rate: 30 - 220 BPM
• Recording duration: 8 - 336 hours
• Data transfer: Bluetooth, USB
• Storage capacity: Integrated 2 GB microSD
• Power supply: Rechargeable or alkaline batteries
• Battery life: 24 hours
• Size: 125 x 70 x 33 mm
• Weight: approx. 250 g

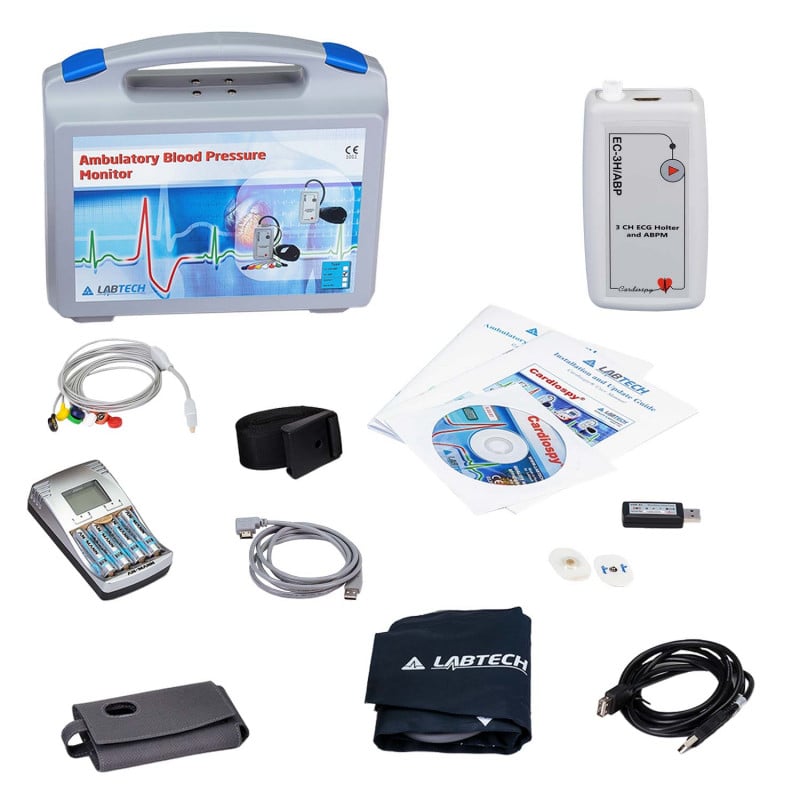

Delivery Contents

• EC-3H/ABP Holter
• Adult blood pressure cuff
• 3 CH bipolar patient cable (HDMI snap, 45 cm)
• Disposable ECG electrodes
• Holter bag
• Waist belt (160 x 3.7 cm)
• Data transfer cable (USB A-HDMI)
• USB stick (USB-02/B)
• Extension cable for USB-02
• Battery charger
• Carrying case
• Installation and update guide
• User manual
