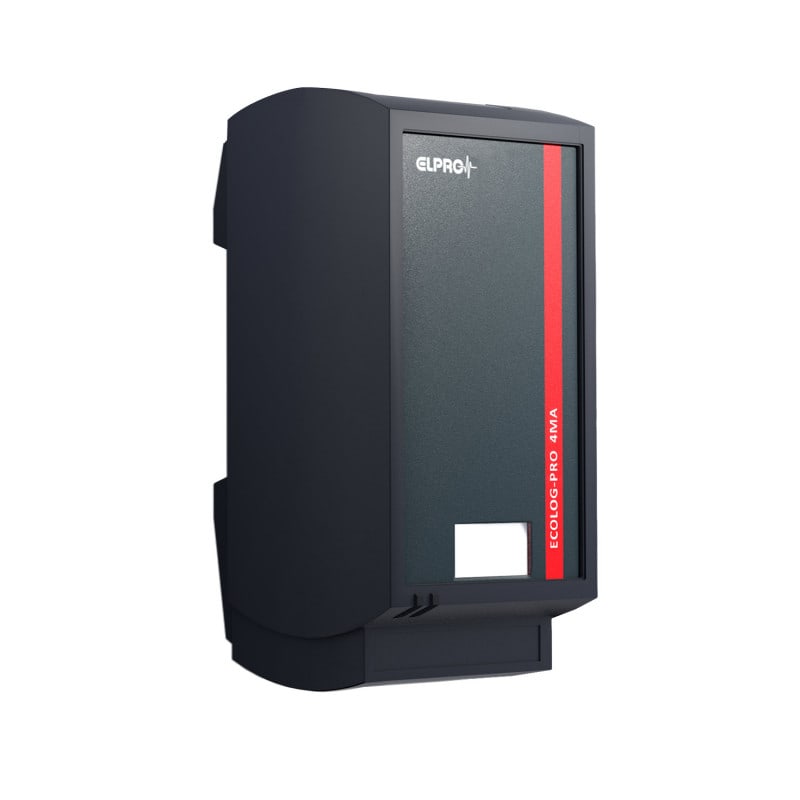

ECOLOG-PRO 4MA

• 4 inputs for 4-20 mA signals
• High measuring accuracy
• Flexible power supply
• Robust ABS housing
• Storage of 10,000 measured values

ECOLOG-PRO 4MA

The ECOLOG-PRO 4MA from Elpro is a powerful measuring module for capturing analogue signals and is ideally suited for medical applications. It features four inputs designed for standard signals of 4 to 20 mA. The connected transmitters can be powered either via the module itself or an external power supply. Thanks to its compact design and robust ABS housing, the module can be easily integrated into existing systems.

The connection is made via the system bus and four sensor ports, while the captured data remains securely stored even during network outages. The high measurement precision ensures reliable and accurate monitoring. The measurement values are recorded at individually selectable intervals, allowing for flexible data logging.

The ECOLOG-PRO 4MA meets high safety standards and can be easily configured and monitored with the elproMONITOR software. It offers a reliable and user-friendly solution for the continuous capture of analogue signals. The delivery includes the measuring module as well as connection hooks for stable mounting.

Product Details

• ECOLOG-PRO 4MA from Elpro
• Measuring module for analogue signals
• 4 inputs for 4-20 mA standard signals
• Compatible with internal or external power supply for transmitters
• Flexibly configurable recording intervals
• Robust ABS plastic housing
• Data storage even during network outages
• Connection via system bus and four sensor ports
• Easy integration into existing systems
• Includes validation certificate
• Compatible with elproMONITOR software
• Connectors not included
• Contents: measuring module, connection hooks, validation certificate, user manual

Technical Specifications

• Measuring range: 3.6 mA to 20.4 mA
• Measurement accuracy: ±0.04 mA
• Power supply: 24 VDC ±20%
• Recording interval: 1 to 60 minutes
• Material: ABS plastic
• Dimensions: 140 x 70 x 60 mm
• Storage capacity: 10,000 measurement values
• Protection class: IP20
• Weight: 200 g
