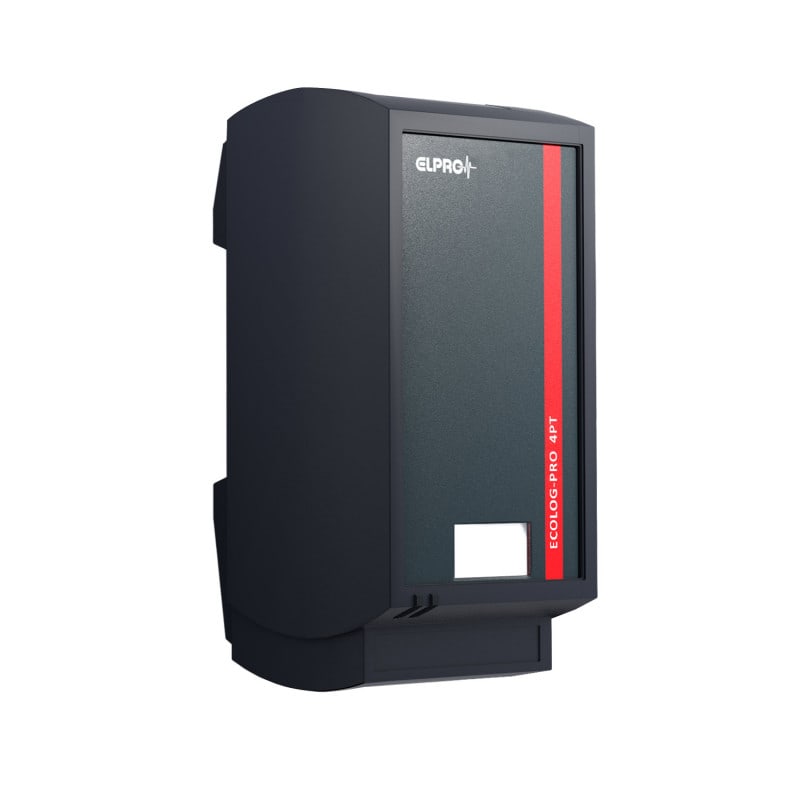

ECOLOG-PRO 4PT

• Temperature measurement module for 4 Pt100 sensors
• Stores up to 10,000 measuring points
• Power supply via system bus
• High measuring accuracy
• 1 piece

ECOLOG-PRO 4PT

The ECOLOG-PRO 4PT measuring module from Elpro is ideal for precise temperature monitoring in medical and pharmaceutical environments. It offers four connections for external Pt100 sensors and ensures safe measurements with high accuracy. The robust construction made of ABS plastic provides a long lifespan, while the simple integration via the system bus allows for quick installation.

The built-in memory ensures all relevant data is reliably stored even during network outages. The included validation certificate confirms the high quality and reliability of this product—ideal for laboratory applications and the monitoring of sensitive medical goods.

Product Details

• ECOLOG-PRO 4PT from Elpro
• Measuring module for precise temperature monitoring
• 4 inputs for external Pt100 sensors
• Ideal for laboratories and medical applications
• Data storage even during network outages
• Easy connection via system bus
• Validation certificate included
• Robust housing made of ABS plastic
• 1 ECOLOG-PRO 4PT measuring module

Technical Specifications

• Measuring range: -200 °C to +200 °C
• Measurement accuracy: ±0.2 °C
• Recording interval: 1 to 60 minutes
• Memory: 10,000 measurement points
• Power supply: Via system bus
• Dimensions: 140 x 70 x 60 mm
• Weight: 200 g
• Material: ABS plastic
