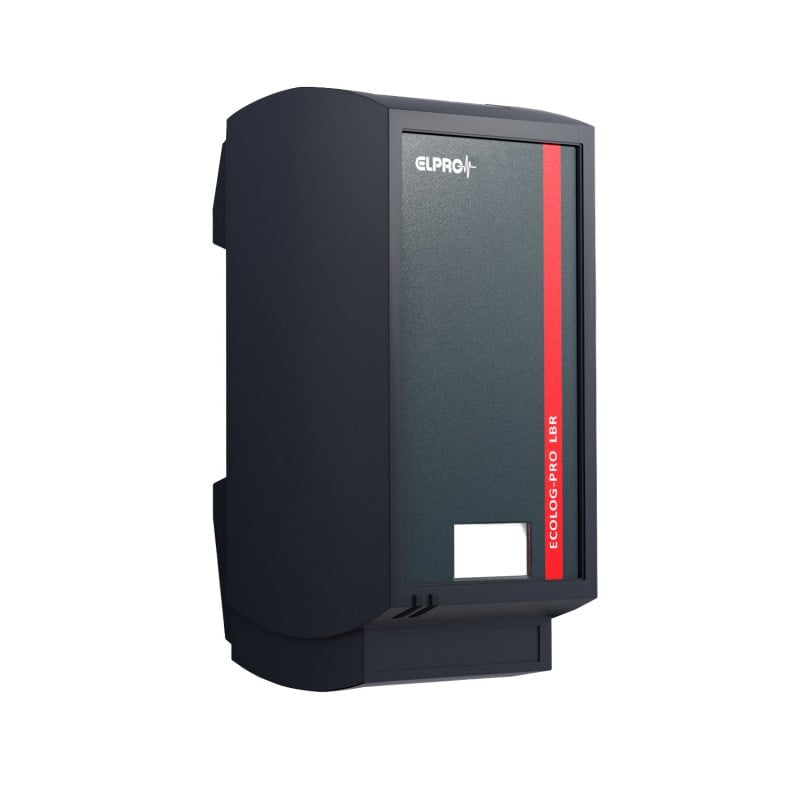

ECOLOG-PRO LBR

• Data logger
• Communication and power module
• Network connection via RJ45 (Ethernet)
• Compatible with up to 32 measuring modules
• Compact dimensions (140 x 70 x 60 mm)

ECOLOG-PRO LBR

The ECOLOG-PRO LBR from Elpro is a communication and power module particularly suitable for use in medical monitoring. It establishes the connection between measuring modules and the network while simultaneously powering the module. Data from the measuring module can be easily and securely transmitted via the network connection (RJ45).

The device features a compact housing made of robust plastic and can be easily mounted on DIN rails. It is ideal for use in laboratories or for monitoring cold chains.

Please note: AC adapter and LAN cable are not included.

Product Details

• ECOLOG-PRO LBR from Elpro
• Datalogger
• Communication and power module
• Connects measuring modules to the network
• Powers the module via system bus
• Compact and robust housing
• Easy mounting on DIN rails
• Ideal for laboratories and cold chain monitoring
• AC adapter and LAN cable are not included
• 1 ECOLOG-PRO LBR module

Technical Specifications

• Connections: 1x RJ45 (Ethernet), 1x power supply
• Material: ABS plastic
• Power supply: 24 V DC (external power supply required)
• Network connection: Ethernet 10/100 Mbit/s
• Max. number of modules: 32
• Protection class: IP20
• Dimensions: 140 x 70 x 60 mm
