ENT Diagnostic Set
ENT Diagnostic Set
Couldn't load pickup availability
- 3.0V F.O. LED otoscope and ophthalmoscope
- With dimmable LED lighting

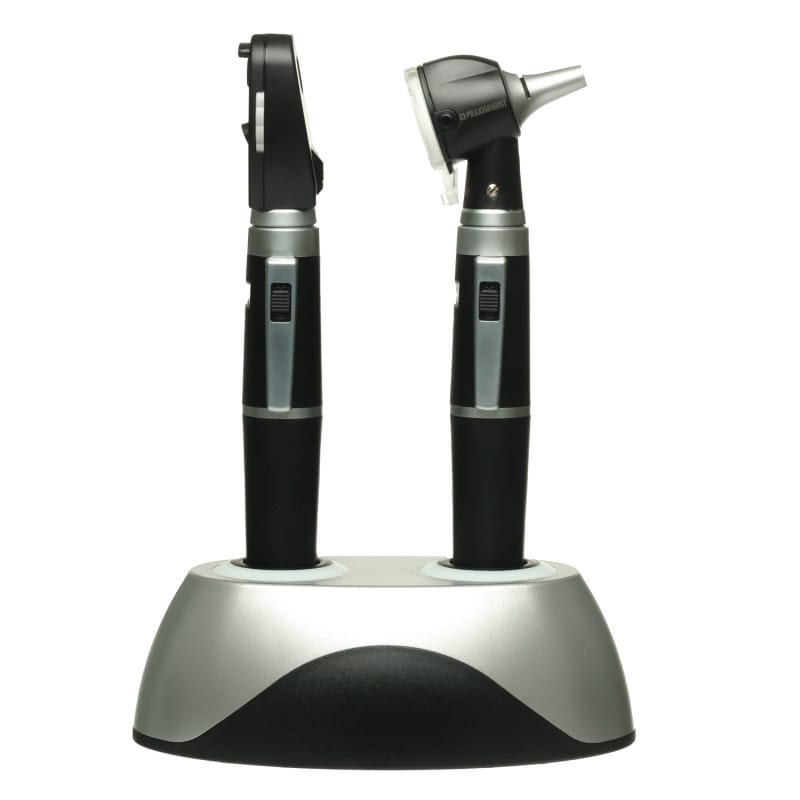

- Incl. 2 handles and dual charging station
- With charge level indicator
- Automatic switch-off after 3 minutes
ENT Diagnostic Set
The ENT diagnostic set from Orange Medical is an essential tool for performing comprehensive examinations of the eyes, ears, nose, and throat. It features adjustable illumination intensity with six levels and superior magnification, enabling the detection of the smallest details. The black instrument heads minimize reflections, ensuring clear images.
The high-performance LED ensures natural color rendition and homogeneous illumination, while the ergonomic handle with an LCD display indicates brightness level and charging status. In addition to the two instrument heads, the set includes two charging handles with rechargeable batteries, ensuring long-lasting performance. Ideal for in-depth diagnostics with a high level of patient comfort.
Product Details
- ENT Diagnostic Set from Orange Medical
- Consists of F.O. LED Otoscope and LED Ophthalmoscope
- For examination of the eyes, ears, nose and throat
- Illumination intensity adjustable in 6 levels
- 3x and 15x magnification allows recognition of the smallest details
- Black instrument head minimizes reflections
- Provides sharp images for accurate diagnostics

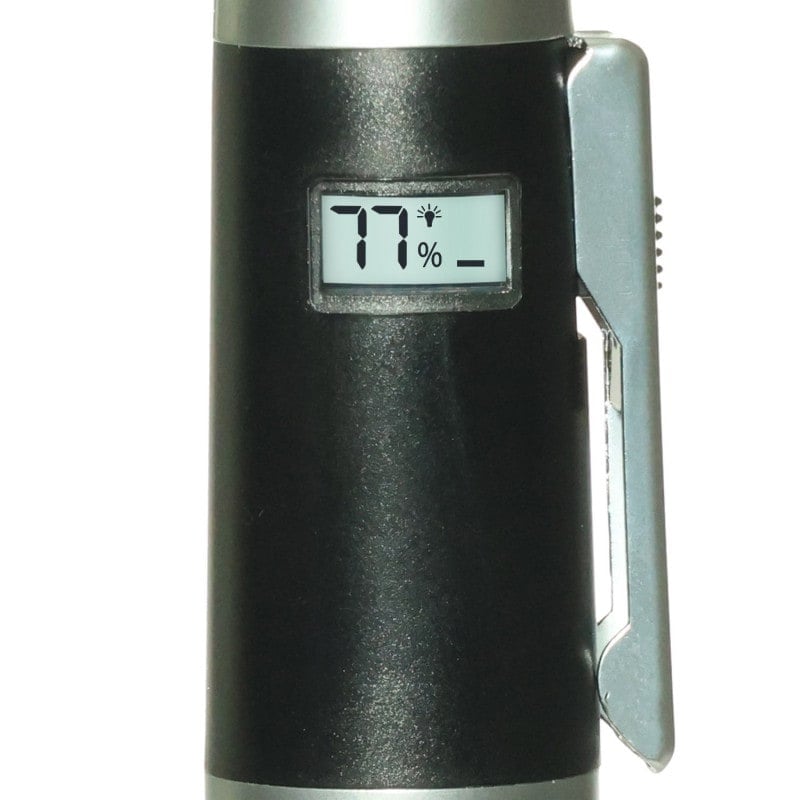

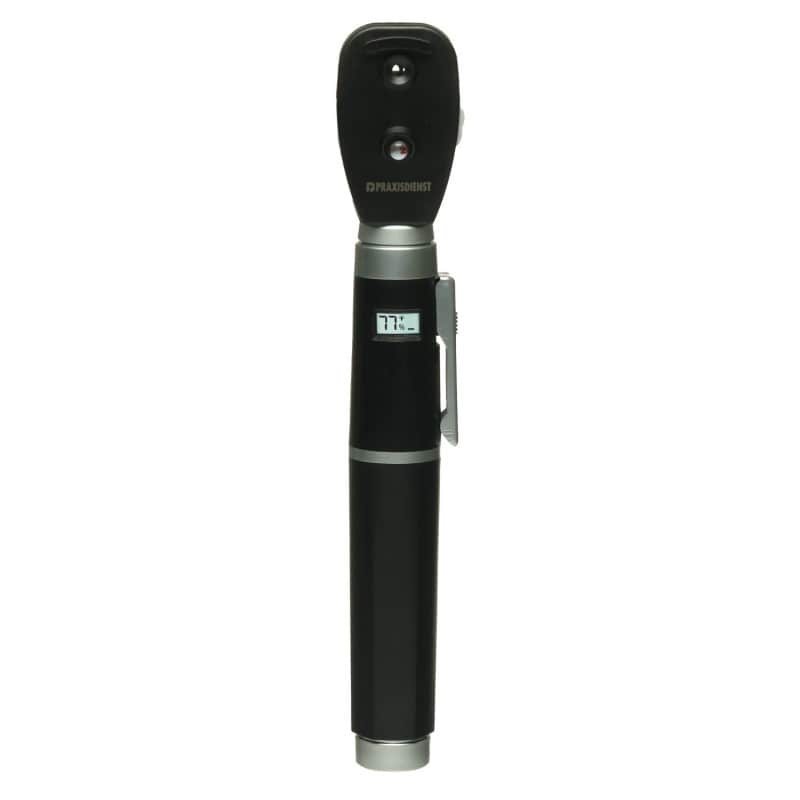

- Handle with LCD indicates brightness and charging status
- Powerful LED with a lifespan of 20,000 hours
- LED provides warm light for natural color rendition
- Homogeneous and bright illumination
- High patient comfort due to low heat generation
- Automatic shut-off after 3 minutes
- Automatically adjusts brightness at low battery level
- Battery charging via power supply or USB port
- Includes 2 charging handles with rechargeable battery
- Instrument heads with screw fitting for secure attachment to handle
- Attachment clip with integrated sliding regulator
- Compact charging handle fits comfortably in hand
- LEDs can be easily replaced
- Manufacturer's warranty: 1 year
Technical Specifications
| F.O. LED Otoscope | LED Ophthalmoscope | |
| Illumination | Fiber optic illumination | Direct illumination |
| Magnification | 3x | 15x |
| Light Source | LED 3.0V dc 60 mA | |
| LED Lifespan | 20,000 hours | |
| Illumination Intensity | 24 lumens | 14 lumens |
| Color Temperature | 3,200 K or 5,700 K (+/- 5%) | 3,500 K (+/- 5%) |
| Specula Size | ⌀ 2.4 mm / 3 mm / 4 mm / 5 mm ⌀ 4 mm / 6 mm L 60 mm (optional) |
/ |
| Power Supply | Ni-Mh 2.4V 1600 mA (rechargeable) | |
| Operating Temperature | 10-40 °C | |
| Features | - Sideward swivelling viewing window - Port for pneumatic otoscopy |
- 5 different aperture openings - Optical lenses: -20 to +20d - Includes red-free filter |
Delivery Contents

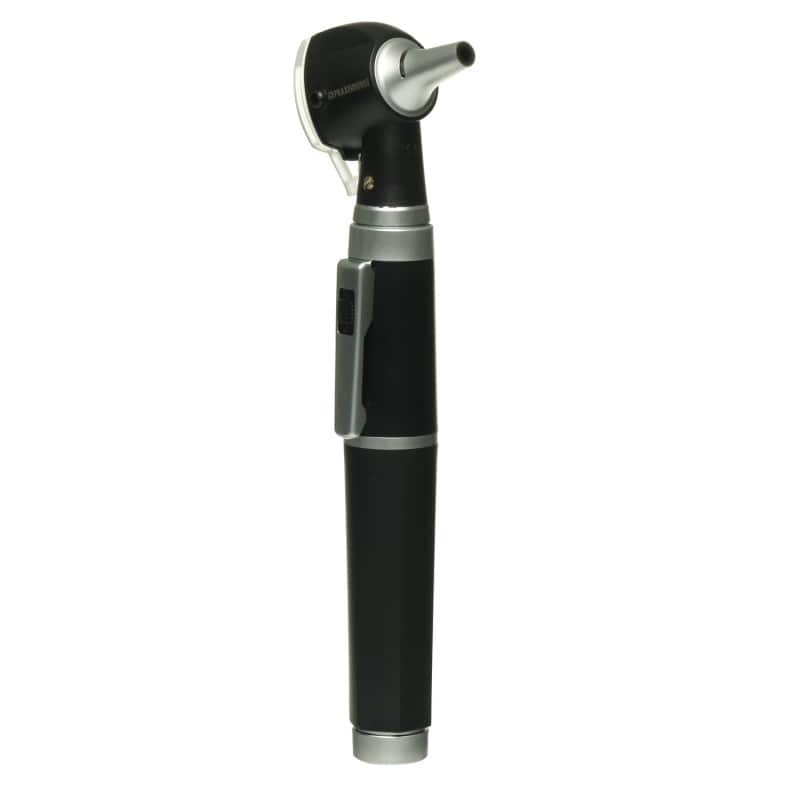

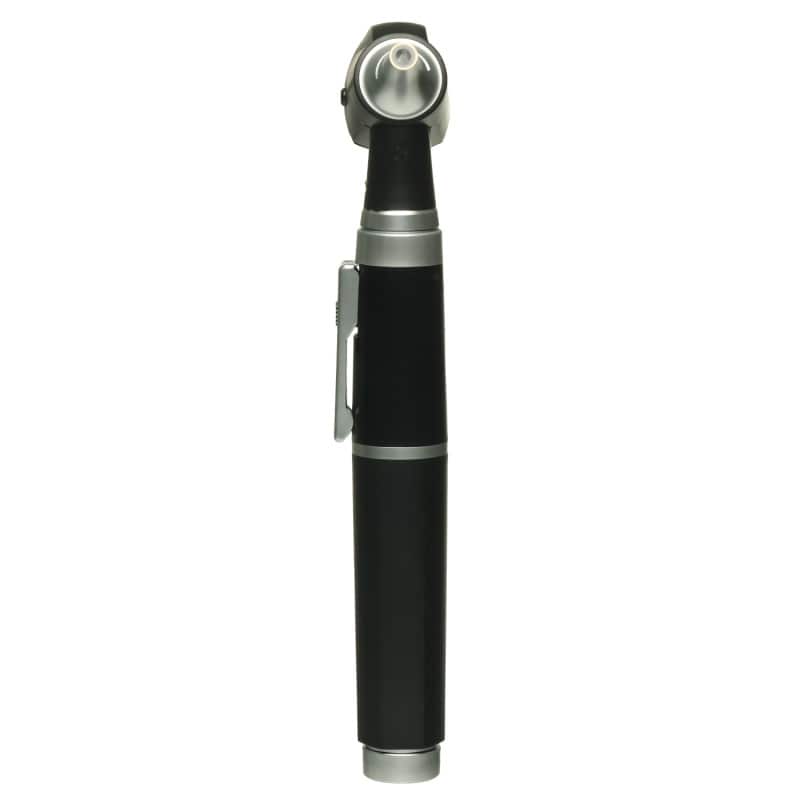

- F.O. LED Otoscope instrument head

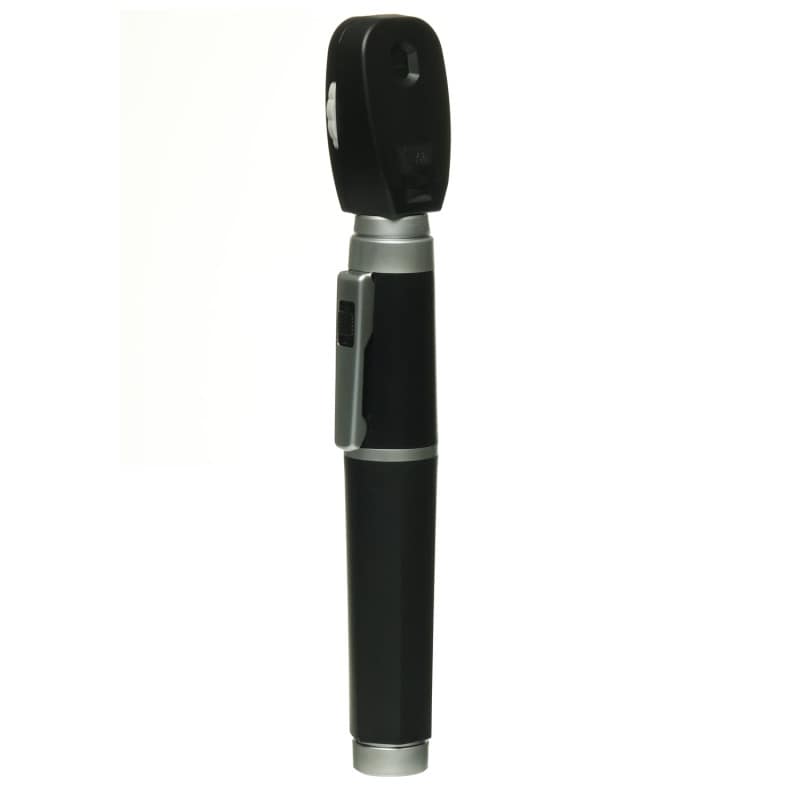

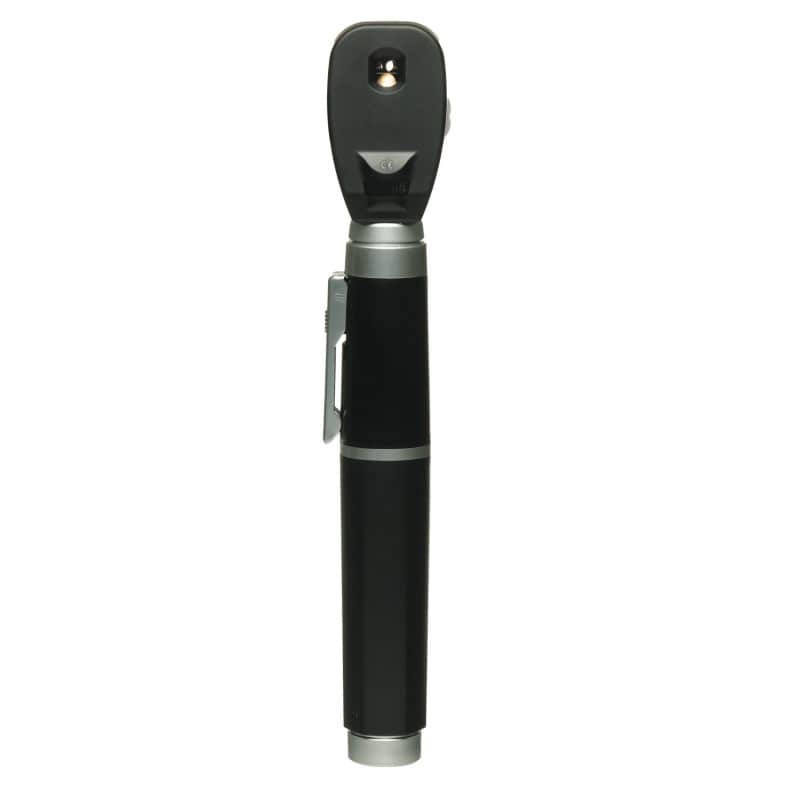

- LED Ophthalmoscope instrument head
- 2 charging handles

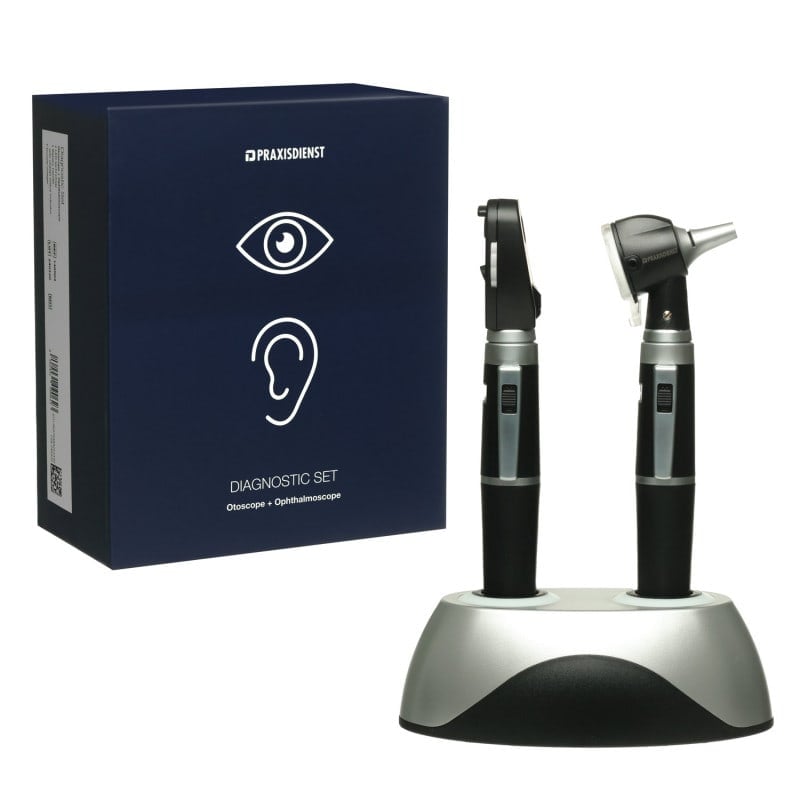

- Dual charging station

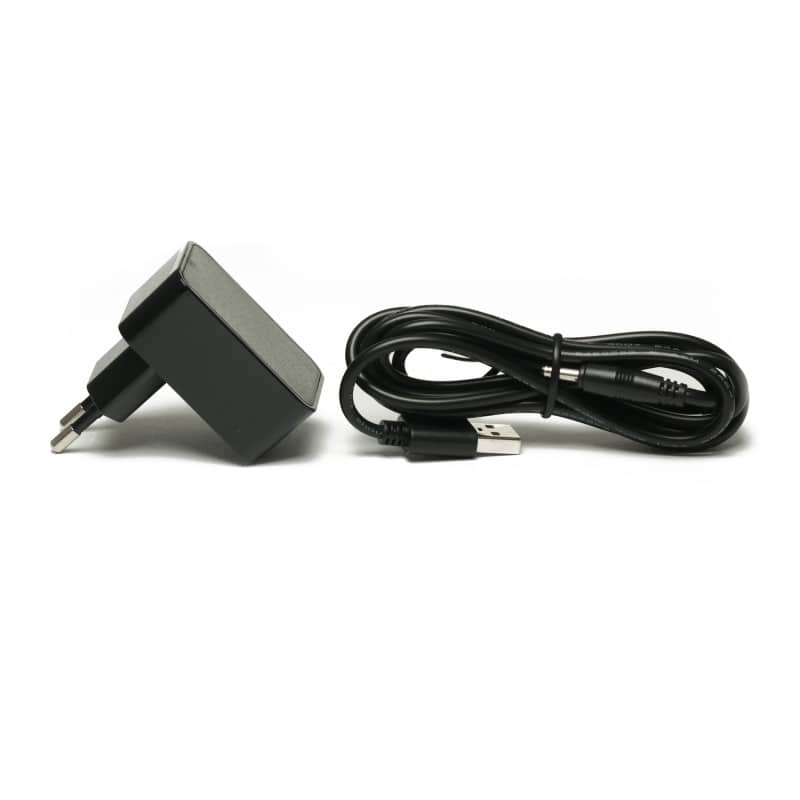

- USB cable
- Power adapter
- 8 disposable ear specula (various sizes)

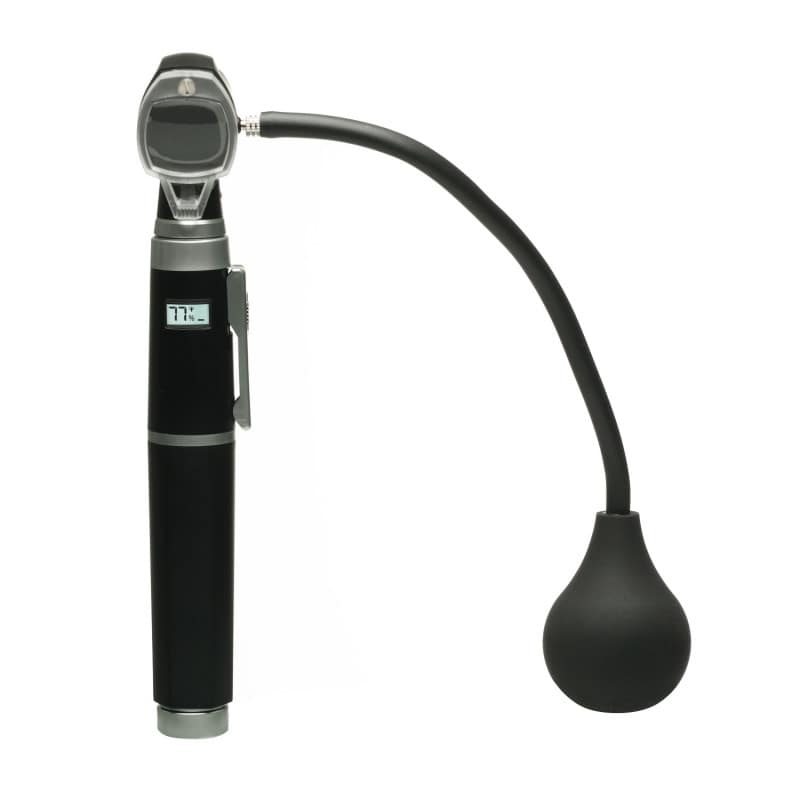

- Insufflator for pneumatic otoscopy
- Instructions for use
