Euromex EcoBlue Monocular Microscope

• With adjustable LED lighting
• Ideal for schools and educational institutions
• With coaxial coarse and fine drive
• Nose-piece for 4 lenses
• 5 year manufacturer's warranty

Euromex EcoBlue Monocular Microscope

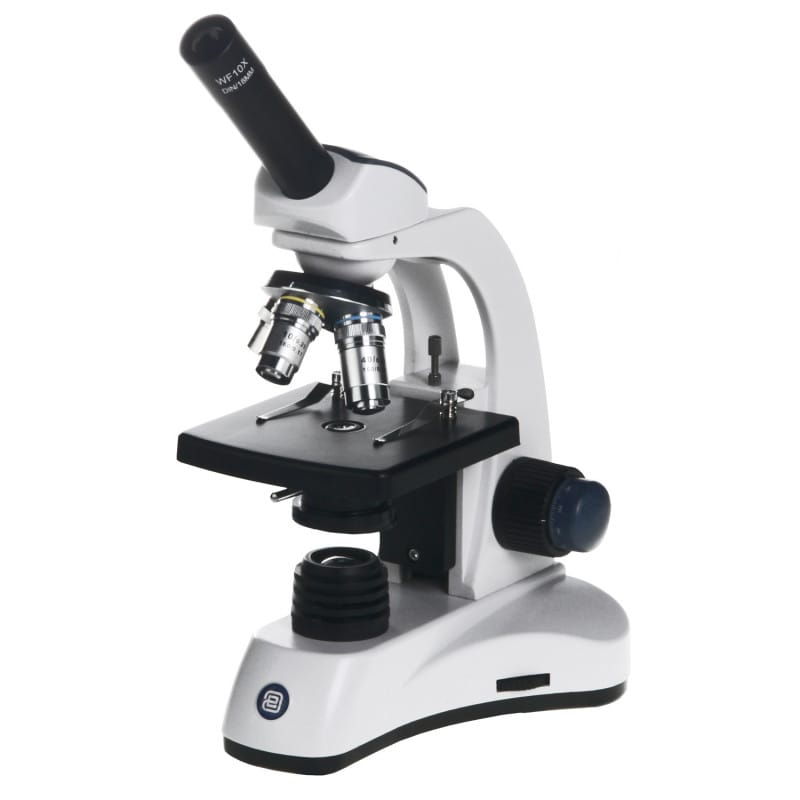

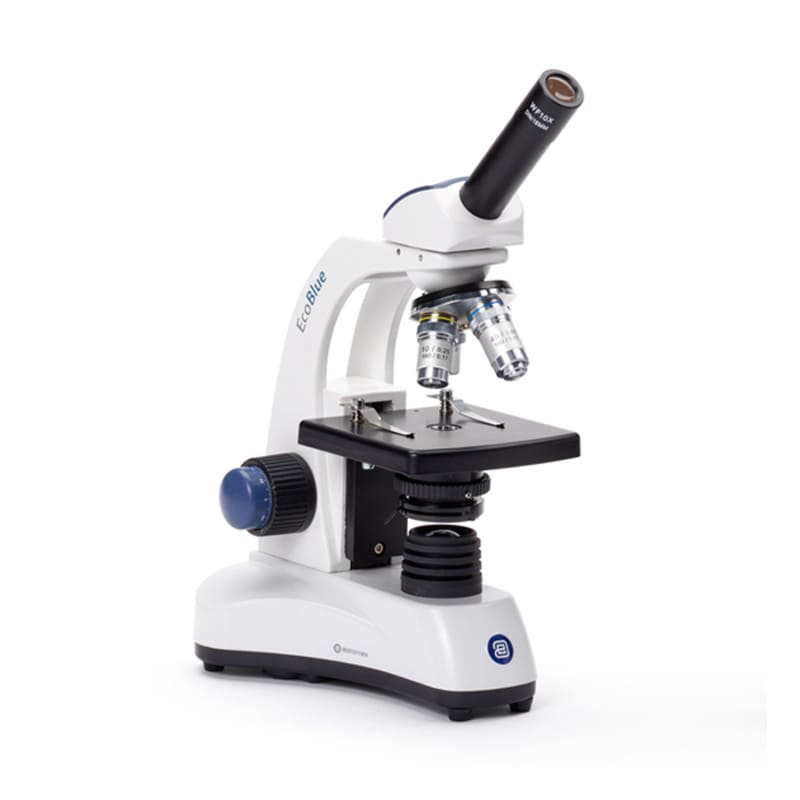

The Euromex EcoBlue EC.1001 is a monocular microscope with adjustable LED illumination, coaxial coarse and fine adjustment and nose-piece for four lenses. Its excellent price-performance ratio and the adjustable preparation protection make this LED microscope ideally suited to teaching classes.

Product Details

• Euromex EcoBlue Monocular Microscope
• Model: EC.1001
• With adjustable LED illumination
• Ideal for schools and other teaching facilities
• Ergonomic design
• Adjustable preparation protection
• Excellent price-performance ratio
• 5 year warranty

Technical Details

• Secured wide field eyepiece WF 10x/18 with fixed pointer
• Monocular tube, 45° inclination, 360° rotation, tube length 160mm
• Nose-piece for 4 lenses, ball-bearing mechanism and click-stops
• Achromatic, colour-coded DIN lenses: 4x NA 0.10, 10x NA 0.25, S40x NA 0.65 (spring mounted)
• Square stage (123 x 119 mm) with 2 lens clamps
• Coaxial coarse and fine adjustment on both sides, with 0.002 mm graduations. Adjustable focus control
• Height adjustable Abbe condenser NA 1.25 with iris diaphragm and filter folder
• LED 1 watt illumination with intensity control
• Internal 85-230 V power supply without battery

The Euromex EcoBlue EC.1001 monocular microscope is supplied with spare fuse, user manual and dust cover.
