H1300 Portable Ultrasound with convex probe C62B

• Portable ultrasound scanner in compact tablet design
• With an 8" wide-angle touch screen
• Particularly high resolution image quality
• With rechargeable and replaceable lithium-ion battery
• Including probe of your choice and carry bag

H1300 Portable Ultrasound

The modern H1300 ultrasound system in compact tablet design from BenQ has a particularly high-resolution image quality. The lithium-ion battery is rechargeable and replaceable if required. The ultrasound unit has a fully integrated image management system consisting of thumbnail image and cineloop. Data transfer can be done via Bluetooth, Wi-Fi, HDMI or USB.

The system is compatible with DICOM and has various imaging modes such as B-mode, M-mode, colour Doppler, power Doppler, PW-Doppler, CW-Doppler. The device is ideal for hospitals, medical practices, emergency services or home visits.

The delivery includes the H1300 ultrasound system, optionally a linear or convex probe and a carry bag for the H1300. In addition, further probes are available if required.

Product Details

• H1300 Ultrasound System from BenQ
• Portable ultrasound unit in compact tablet design

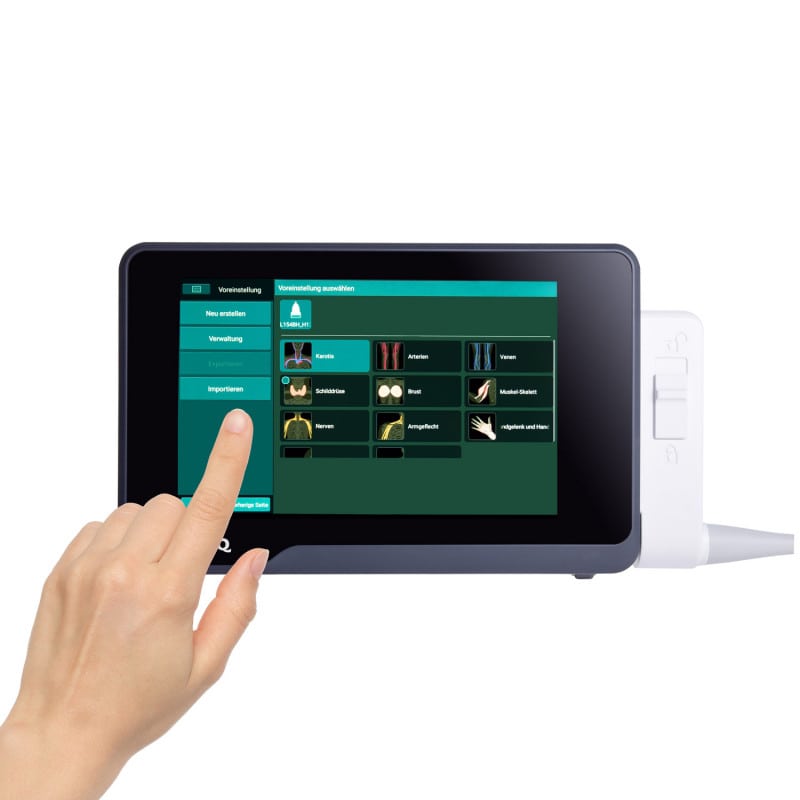

• Intuitive user interface (multi-touch)
• Extra high resolution image quality
• Features auto-IMT measurement and customized function keys
• Equipped with a rechargeable and replaceable lithium-ion battery
• Fully integrated image management system with thumbnail image and cineloop
• Data transfer via Bluetooth, USB, HDMI or Wi-Fi
• Compatible with DICOM

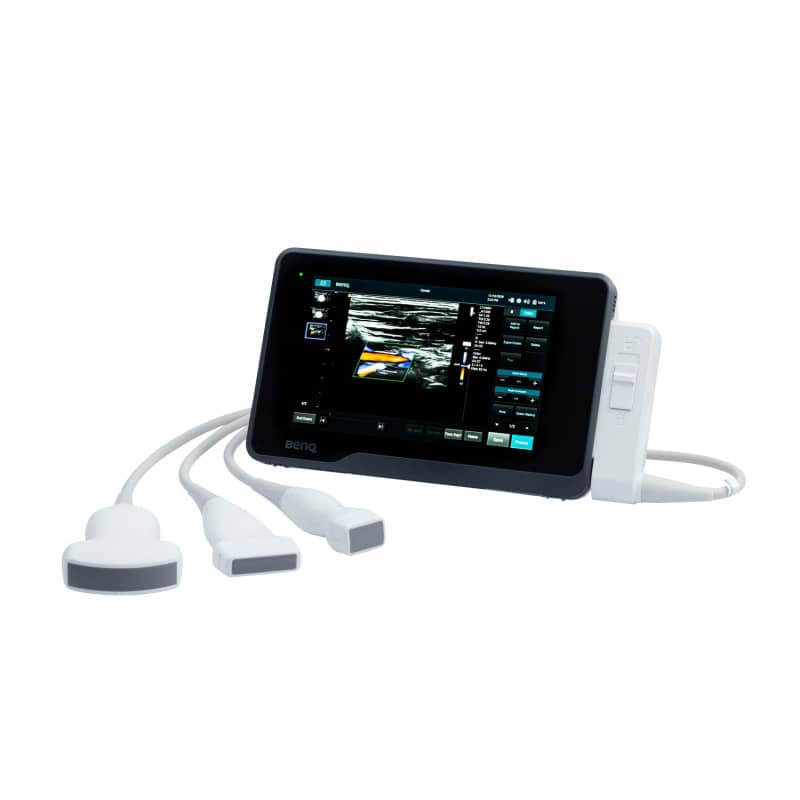

• Convex and phased array probe optionally available
• With integrated speakers

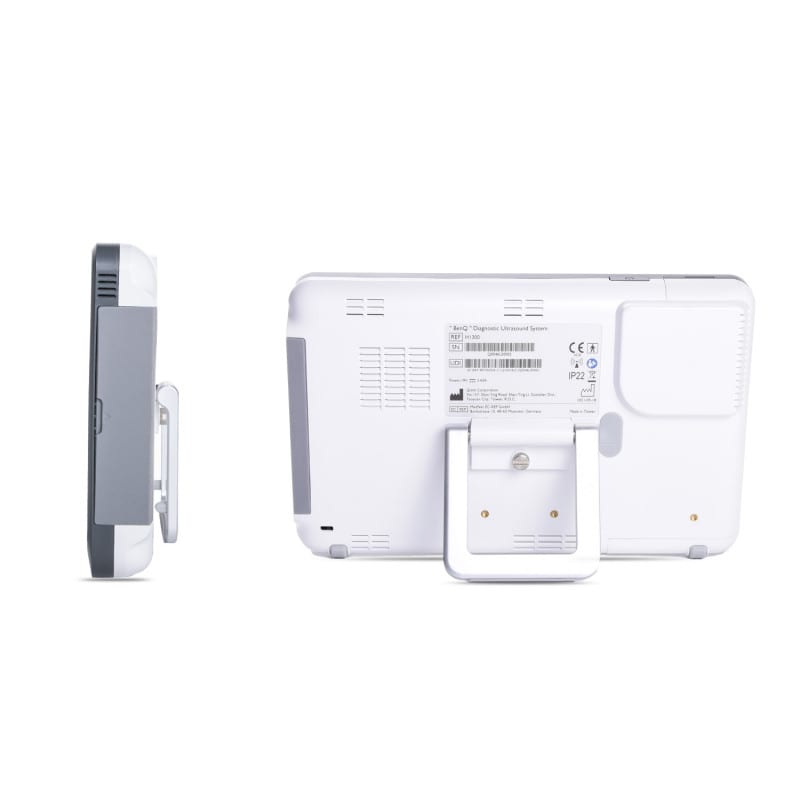

• Stand is adjustable by 135 degrees
• Ideal for hospitals, doctors' surgeries, emergency services and home visits

Technical Data

• 8-inch wide-angle LCD display with multi-touch surface
• Resolution: 1920 x 1200 pixels
• Dimensions: 242 x 253 x 35 mm (L x W x H)
• Weight: 1.2 kg (incl. battery)
• 1 x probe slot
• 256-level greyscale image display
• Frame rate: 300 frames/second
• Memory: Internal hard disk (128 GB) and USB
• Available languages: English, Chinese, French, German, Spanish, Russian

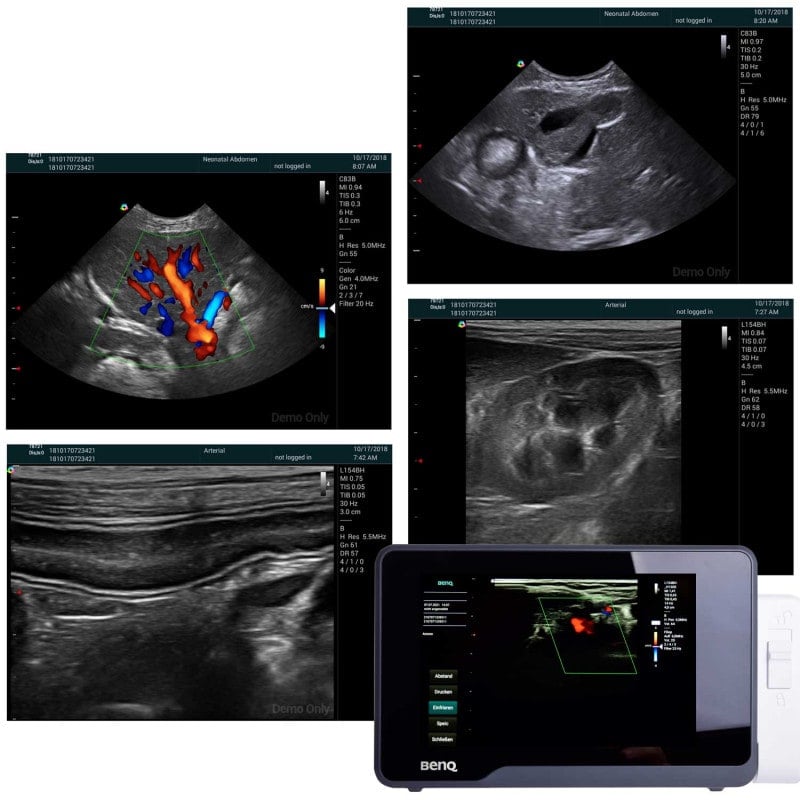

Imaging modes

• B-mode
• M-mode
• Colour Doppler
• Power Doppler
• PW Doppler
• CW Doppler

Areas of Application

Delivery Contents

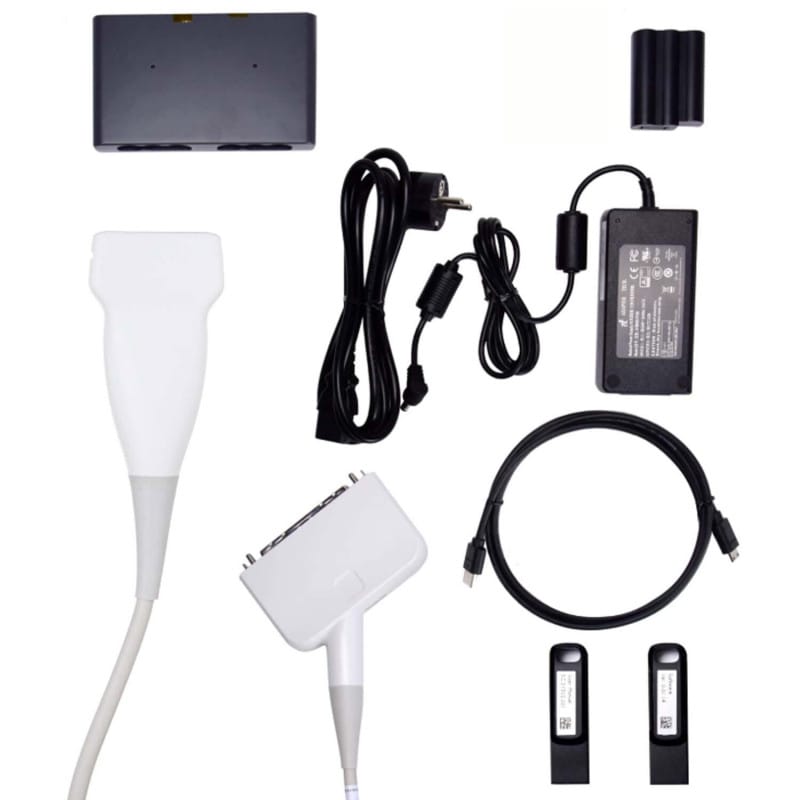

H1300 ultrasound scanner, L154BH linear probe or C63B convex probe, H1300 carry bag, charger, 1x rechargeable battery, HDMI to mini-HDMI connection cable, software (USB stick), user manual (USB stick)
