Product overview
- Mobile ECG machine
- 10.4-inch touchscreen
- Long battery life
- Comprehensive reporting functions
- High memory capacity
iMAC 120 PRO

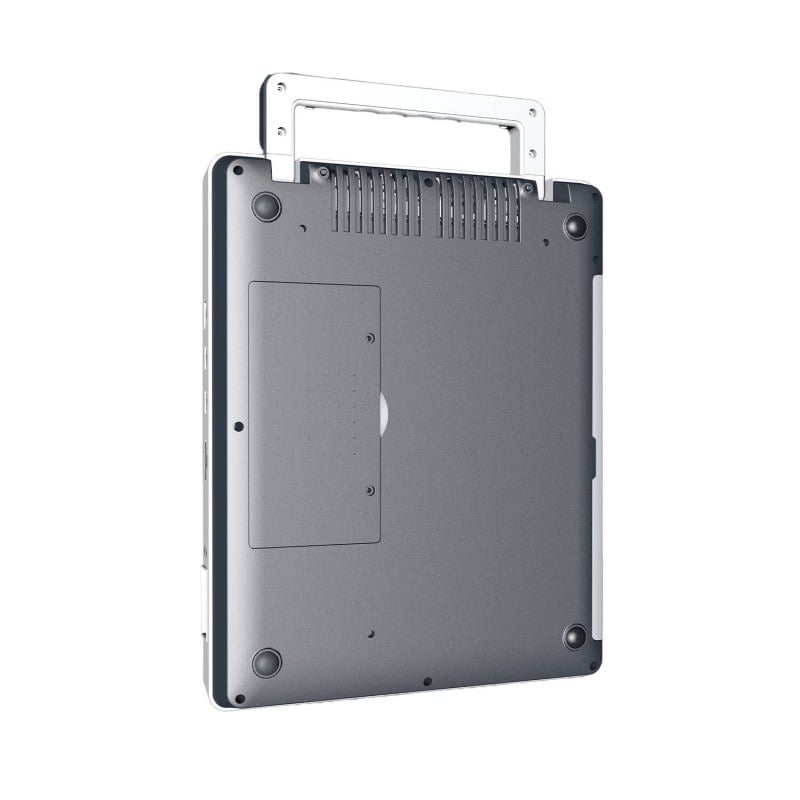

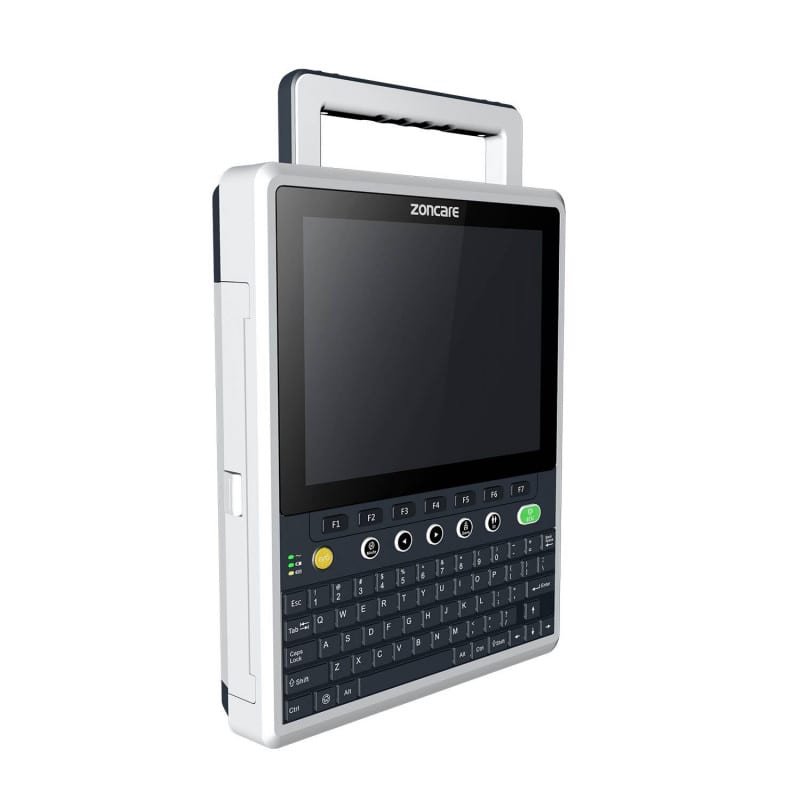

The iMAC 120 PRO Tablet ECG from Zoncare is a state-of-the-art device designed for detailed clinical diagnosis. Featuring advanced algorithms, high connectivity and extensive data storage, it is ideal for professional use in cardiology and other medical fields. Its portable design and intuitive interface offer unmatched flexibility and ease of use.
Product Details
- iMAC 120 PRO from Zoncare
- Portable ECG device
- User-friendly interface and easy operation
- Integrated thermal printer allows for immediate printing
- Carrying handle for effortless transport, also serves as a stand for better visibility
- Simultaneous 12-lead recording
- Suitable for adults and children
- Supports multiple languages
- Integrated defibrillator protection
- Automatic measurements and creation of R-R histograms/R-R diagrams
- Report templates (measurement matrix and average template)
- Alerts for bradycardia, tachycardia, lead disconnection, recorder unavailability and low battery
- Supports Wi-Fi and wired network connections
- Direct connection to third-party systems
- Storage for ≥20,000 reports
- Operation via mains power and a rechargeable Li-ion battery
- Ideal for use in fields such as cardiology, emergency medicine or intensive care
- Supplied with: 10.4-inch ECG tablet, ECG cables, battery, power cable
Technical Specifications
| LCD Touchscreen | 10.4-inch |
| Resolution | 1024 x 768 pixels |
| Connections | 2 USB ports, LAN connections, SD card slot |
| Sampling Modes | Real-time sampling, Pre-sampling, Triggered sampling, Periodic sampling |
| Sampling Rate | 32,000 samples per second (or Hz/channel) |
| A/D Conversion | 24-bit converter |
| Input Impedance | ≥ 60 MΩ (at 10 Hz) |
| Polarisation Resistance | ±950 mV ±3% |
| Frequency Response | 0.01 - 350 Hz |
| Time Constant | ≥3.2 seconds |
| Common-Mode Rejection Ratio (CMRR) | ≥115 dB |
| System Noise | RTI, Peak-to-Valley value: ≤15 μV |
| Gain Settings | 40, 20, 10, 5, 2.5, Auto mm/mV |
| Paper Speed | 5, 6, 10, 12.5, 25, 50 mm/s |
| Calibration Voltage | 1 mV ±2% |
| Filter Settings | Mains Filter: Off/50/60 Hz Base Line Drift: Off/0.01/0.05/0.3/0.6 Hz EMG Filter: Off/25/35/45/75/100/150/250/350 Hz |
| Heart Rate Range | 30 - 350 bpm |
| Power Supply | AC Input: 100V-240V, 50Hz/60Hz, 120 VA Rechargeable Li-ion battery (14.52V/5200mAh) with over 10.5 hours runtime |
| Dimensions (L x W x H) | 285 mm x 360 mm x 94 mm |
| Weight | 3.6 kg including battery |
| Diagnostic Algorithm | Glasgow |
