Kern OZL 463 Stereo Zoom Microscope OZL 463 (Binocular)

• Stepless zoom from 7x - 45x

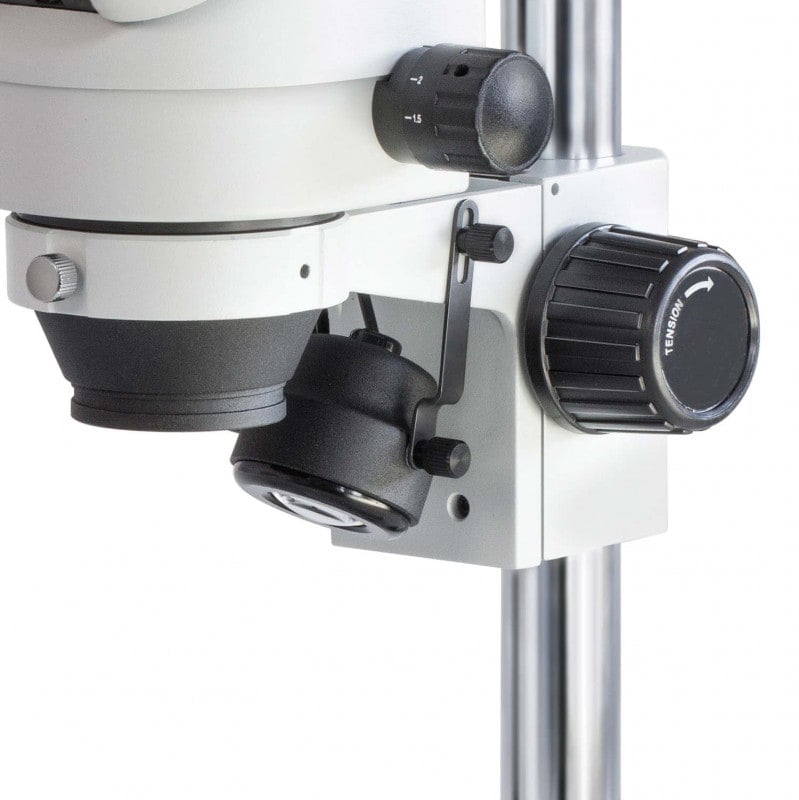

• LED ring illumination, dimmable
• Uniform, shadow-free illumination
• Diopter compensation on both sides
• Optionally available with trinocular for connecting a camera

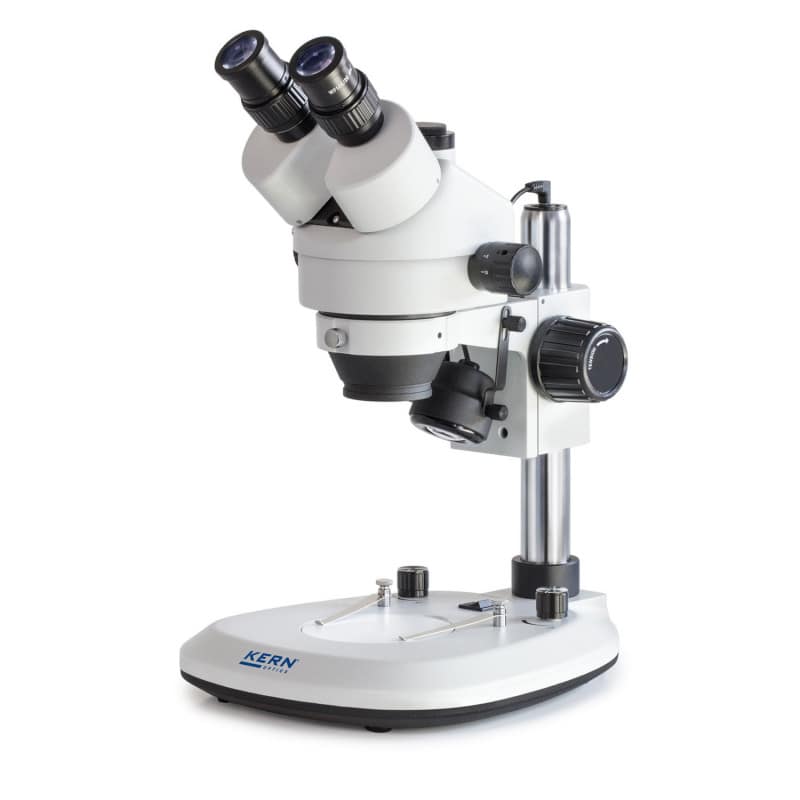

Kern OZL 463 Stereo Zoom Microscope

The stereo zoom microscope from Kern is an affordable all-rounder that is suitable for microscopy of larger biological specimens. The microscope enables an optimal three-dimensional examination of objects and a magnification of up to 45 times of specimens.

The LED incident and transmitted light illumination ensures uniform and shadow-free illumination. In addition, the stereo microscope has a high stability and is particularly easy to handle.

The zoom microscope is optionally available with a trinocular tube to which a microscope camera can be connected if required.

Product Details

• Stereo zoom microscope
• Greenough optics
• Stepless zoom: 7x - 45x
• Ring illumination independently dimmable
• Lens barrel 45° tilt
• Beam path distribution: 50:50
• Magnification ratio: 6.4:1

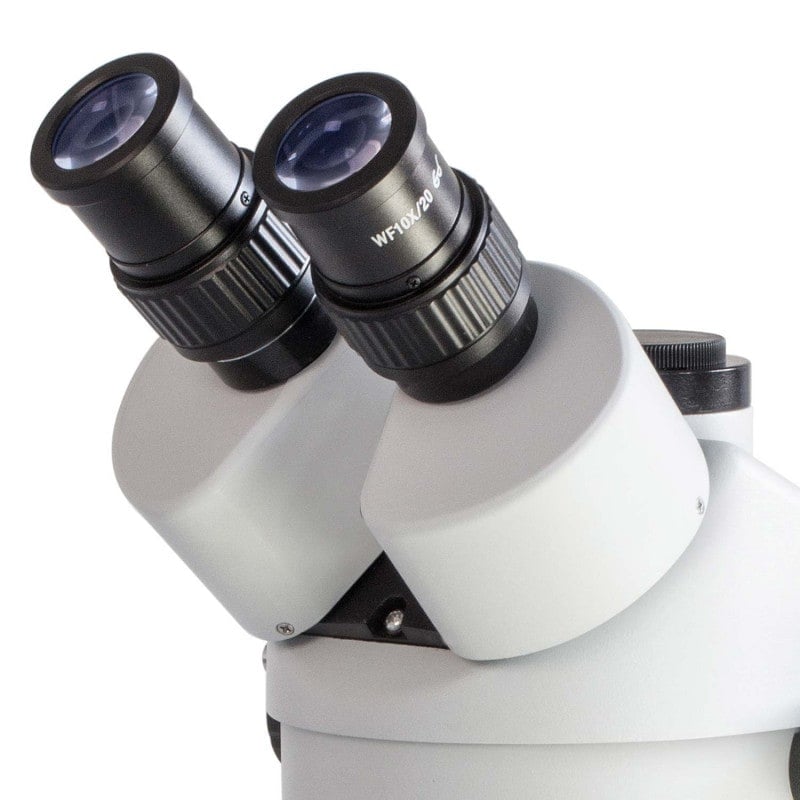

• Eyepieces: HSWF 10× Ø 20.0 mm
• Field of view: Ø 32.8 mm - 5.1 mm
• Interpupillary distance: 55 - 75 mm
• Diopter compensation on both sides
• Light source: LED, 3 W
• Dimensions (WxDxH): 30 x 24 x 42 cm
• Weight (net): approx. 4 kg
• Optionally available with binocular or trinocular tube
