KIRSCH Blood Plasma Freezer BL178

• Permanent monitoring of all performance data
• Uniform temperature regulation
• With minimum and maximum temperature memory
• Visual and acoustic alarm signal in case of malfunctions
• Medical device according to DIN ISO 13485

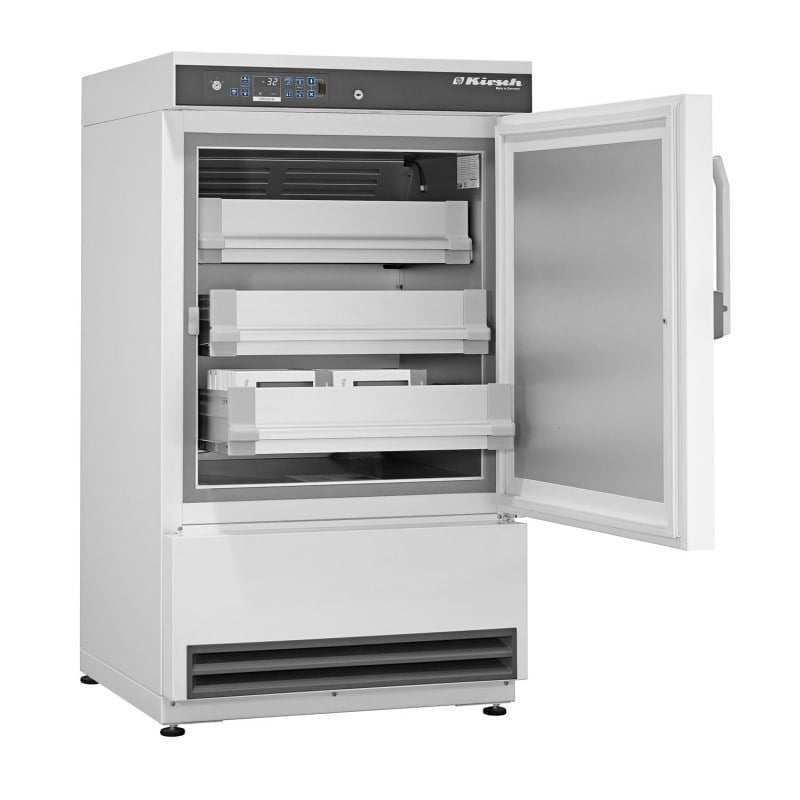

KIRSCH Blood Plasma Freezer BL178

The KIRSCH BL178 Blood Plasma Freezer, approved as a medical device in accordance with DIN 13485, has permanent, proactive monitoring of performance data thanks to the PRO-ACTIVE control system. The efficient convection cooling, which switches off automatically when the door is opened, ensures only minimal temperature deviations from the warmest to the coldest storage location inside the freezer. In addition, the recirculating air cooling ensures a constant and uniform temperature, so that the blood plasma samples are exposed to only slight temperature fluctuations at most.

To provide sufficient storage space for samples, the KIRSCH BL178 freezer is equipped with three aluminium drawers mounted on fixed roller drawer runners. They can easily be loaded with up to 50 kg. The current temperature can be easily read via a front-mounted membrane keypad with LED display. The recorded data of the minimum and maximum temperature can be transmitted digitally via a USB interface and the KIRSCH Datanet software. This feature saves time for the technical staff and avoids potential sources of error when documenting temperature data.

Product Details

• KIRSCH Blood Plasma Freezer BL178
• Equipped with the innovative PRO-ACTIVE control system
• Permanent, proactive monitoring of all performance data
• Two PT-1000 sensors guarantee accurate temperature control
• Outer casing made of galvanised and rust-protected sheet steel
• White powder-coated, particularly scratch-resistant
• Plug cable length: approx. 2.8 m
• Easy compensation for uneven floors thanks to adjustable feet
• Interior lined with smooth aluminium with protective coating
• Three aluminium drawers on fixed roller runners
• Drawer stacking height: 15 cm
• 70 mm thick insulation made of pressure-foamed material
• Insulation ensures energy-saving operation
• Self-closing and lockable door
• Replaceable plastic magnetic seal frame
• Door hinge can be changed as required (with right-hand hinge as standard)
• Recirculating air cooling switches off automatically when opened
• Uniform temperature control and low temperature gradient
• Automatic quick defrost within approx. 25 minutes
• Condensation evaporation in the refrigeration machine room
• Electronic temperature regulation protected by key switch
• Clear membrane keypad with digital temperature display
• With minimum and maximum temperature memory
• Visual and audible alarm in case of malfunction or power failure
• Door opening alarm after 60 seconds
• Alarm forwarding possible via potential-free contact
• Data can be read via USB interface (using USB stick and KIRSCH Datanet software)
• Forced-air cooling machine, hermetically sealed
• Medical device compliant with DIN ISO 13485
• Complies with DIN 58375
• With door frame heating
