KIRSCH Blood Plasma Freezer BL330 ULTIMATE

KIRSCH Blood Plasma Freezer BL330 ULTIMATE

£13,578.98
£0.00 £13,578.98
Sale Sold out
Version
Product overview
  • Medical device according to DIN ISO 13485
  • Minimum temperature gradient
  • Precise temperature control
  • Flexible interior design
  • 4 aluminium drawers for plenty of storage space

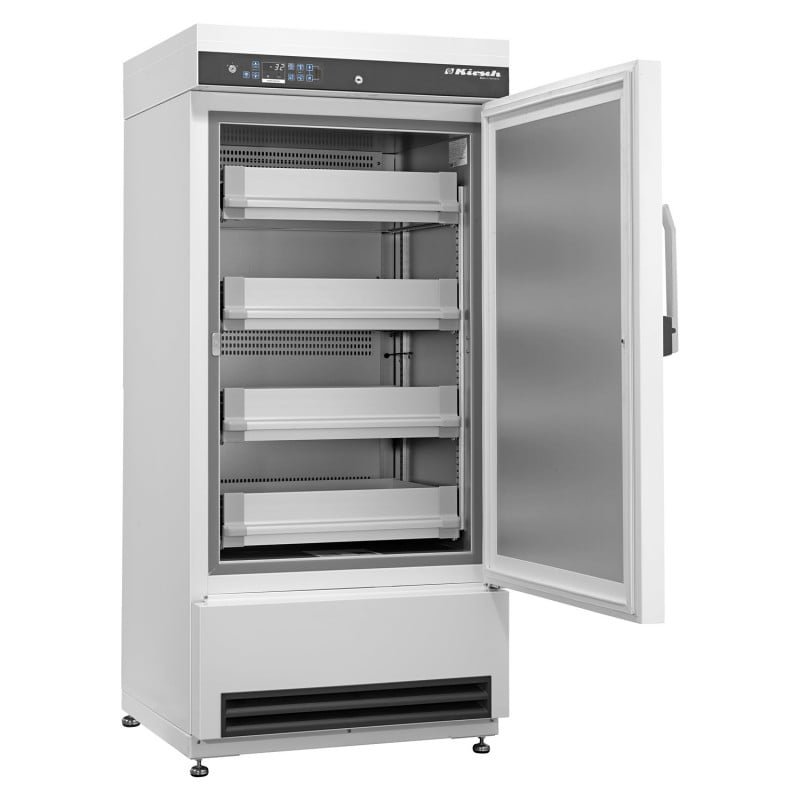

KIRSCH Blood Plasma Freezer BL330

The energy-saving KIRSCH BL330 Blood Plasma Freezer complies with DIN ISO 13485 and DIN 58375 and is equipped with the PRO-ACTIVE control system, which ensures permanent monitoring of all performance data as well as minimal temperature deviations between the warmest and coolest storage locations. In addition, an efficient recirculating air-cooling system ensures an even temperature without strong temperature fluctuations. Thus, the blood plasma samples are cooled constantly and reliably.


To protect the temperature control from unauthorised access, it is protected with a key switch or RFID/password, depending on the version. To minimise the time-consuming documentation of the minimum and maximum temperature for the specialist staff, the freezer is equipped with an integrated memory whose data can be easily read out and archived. In the event of a power failure or other malfunctions that may interrupt cooling, an acoustic and visual signal indicates the malfunction. If required, alarm forwarding to a mobile phone, for example, is also possible to receive notification of alarms anywhere and anytime.


Produkt Details

  • KIRSCH Blood Plasma Freezer BL330
  • Complies with DIN ISO 13485 and DIN 58375
  • Operates with the PRO-ACTIVE control system
  • Permanent monitoring of all performance data
  • Minimum temperature deviations between storage locations
  • Precise temperature control with the aid of second PT-1000 temperature regulators
  • 4 aluminium drawers, height-adjustable
  • Drawers on smooth-running roller runners with locking mechanism
  • Stacking height of drawers: approx. 18 cm
  • Display at eye level
  • With easy-opening ergonomics door opener
  • Recirculating air cooling ensures even temperature control
  • Adjustable feet to compensate for uneven floors
  • Energy-saving insulation (70 mm thick)
  • Self-closing and lockable door
  • Replaceable plastic magnetic seal frame
  • Interior lined with smooth aluminium
  • Outer casing made of galvanised and rust-protected sheet steel
  • White powder-coated and scratch-resistant
  • Plug cable length: approx. 2.8 m
  • Automatic quick defrost
  • Condensation evaporation in the refrigeration machine room
  • Electronic and access-protected temperature regulation
  • With minimum and maximum memory
  • Audible and visual alarm in case of power failure or malfunctions
  • Alarm forwarding can be set up
  • Forced-air cooling machine, hermetically sealed
  • With door frame heating for easy opening

Differences between PRO-ACTIVE and ULTIMATE


 PRO-ACTIVE ULTIMATE
Display Membrane keypad with digital temperature display and min./max. temperature memory. Capacitive touch display in elegant glass design. Graphic display of the temperature curve and the min./max. temperature.
Temperature Regulation Protected by key switch. Protected by RFID/password.
Alarm Forwarding Via potential-free contact (e.g. on mobile phone with GSM module or connection to central control technology). Via network and potential-free contact (e.g. connection to central control technology).
Data Documentation Reading via USB interface using USB stick and KIRSCH Datanet software. Digital - can be read out via network (PC-KIT-NET) and KIRSCH Datanet software.
Access Control No. Yes - with protocol function.
Warning Function Visual and acoustic alarm signal. Visual and acoustic alarm signal. In the event of a power failure, the monitoring unit remains in operation for approx. 30 h thanks to the rechargeable battery.
Door Frame Heating No. Yes.

Technical Specifications

  • Capacity: 300 litres
  • Temperature setting: -32 °C
  • Voltage: 220 - 240 V, 50/60 Hz
  • Power input: 550 watts
  • Standard consumption: 6.59 kWh/24 h
  • Permissible ambient temperature: +10 °C to +32 °C
  • Heat emission (max.): 713 watts
  • Outer dimensions (incl. wall clearance & door handle): 74 x 78 x 166 cm (W x D x H)*
  • Inner dimensions: 59 x 52 x 95 cm (W x D x H)
  • Outer dimensions with door open at 90°: 74 x 142 cm (W x D)
  • Light drawer size: 54 x 37 x 10 cm (W x D x H)
  • Maximum load per drawer: 50 kg
  • Weight: net 120 kg, gross 135 kg
