KIRSCH Laboratory Refrigerator LABEX® 288 ULTIMATE
KIRSCH Laboratory Refrigerator LABEX® 288 ULTIMATE
Couldn't load pickup availability
- Explosion-proof interior (Zone 2)
- Uniform temperature control through efficient convection cooling
- Visual and audible alarm in case of power failure
- Door opening alarm after 60 seconds
- Including three shelves and one drawer

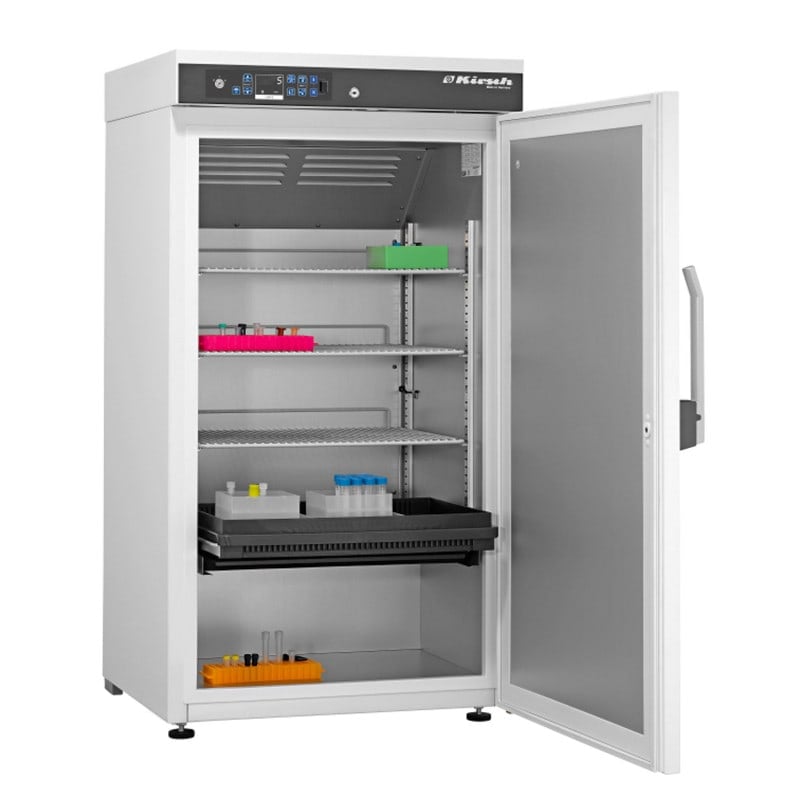

KIRSCH Laboratory Refrigerator LABEX® 288
The energy-saving KIRSCH LABEX® 288 laboratory refrigerator is used for reliable cooling of laboratory samples and complies with DIN 13277. It is equipped as standard with a lockable door with exchangeable door hinge and an efficient convection cooling system with a specially fused fan. Recirculating air cooling ensures even temperature and a low temperature gradient between the different heights of the storage spaces.
As the laboratory refrigerator is equipped with the innovative PRO-ACTIVE control, it enables precise and permanent proactive monitoring of performance data. In the event of deviations due to a power failure or malfunctions, an acoustic and visual alarm signal indicates errors in the cooling system. Data recording is ensured during a power failure by the battery operation of the monitoring unit for approx. 30 hours.
Product Details
- KIRSCH Laboratory Refrigerator LABEX® 288
- Explosion-proof interior (Zone 2)
- Permanent monitoring of the performance data thanks to PRO-ACTIVE control
- Precise temperature regulation with 2 PT-100 sensors
- Self-closing and lockable door
- With replaceable plastic magnetic sealing frame
- Uniform temperature control through efficient convection cooling
- Switches off automatically when the refrigerator door is opened
- Fan specially fused
- Low temperature gradient between storage locations
- Automatic defrost with melt water container
- Visual and audible alarm in case of power failure/malfunction
- Data recording ensured by battery operation for 30 h
- Door opening alarm after 60 seconds
- Freeze protection against minus temperatures
- Outer casing made of rust-protected and galvanised sheet steel
- White and scratch-resistant powder coating
- Interior in smooth aluminium with coating
- Adjustable slats (15 mm grid) for variable interior partitioning
- Including three shelves and one drawer
- Drawer on roller runners with locking device
- With 2 adjustable dividers lengthwise and 9 adjustable dividers crosswise
- Storage area per drawer: 0.16 m2
- Energy-saving insulation (55 mm thick)
- Complies with DIN 13277
- Length of the plug cable approx. 2.8 m
- Adjustable feet in the front area
- Easy levelling of uneven floors
Differences between PRO-ACTIVE and ULTIMATE
| PRO-ACTIVE | ULTIMATE | |
| Display | Membrane keypad with digital temperature display and min./max. temperature memory. | Capacitive touch display in elegant glass design. Graphic display of the temperature curve and the min./max. temperature. |
| Temperature Regulation | Protected by key switch. | Protected by RFID/password. |
| Alarm forwarding | Via potential-free contact (e.g. on mobile phone with GSM module or connection to central control technology). | Via network and potential-free contact (e.g. connection to central control technology). |
| Data Documentation | Reading via USB interface using USB stick and KIRSCH Datanet software. | Digital - can be read via network (PC-KIT-NET) and KIRSCH Datanet software. |
| Access Control | No. | Yes - with protocol function. |
Technical Data
- Voltage: 220 - 240 V, 50 Hz
- Power input: 100 watts
- Standard consumption: 0.76 kWh/24 h
- Permissible ambient temperature: +10 °C to +38 °C
- Heat emission (max.): 173 watts
- Outer dimensions (incl. wall clearance & door handle): 67 x 72 x 132 cm (W x D x H)
- Inner dimensions: 53 x 50 x 100 cm (W x D x H)*
- Outer dimensions with door open at 90°: 67 x 130 cm (W x D)
- Grate size: 52.7 x 39 cm (W x D)
- Clear drawer dimensions: 50.4 x 32 x 5.6 cm (W x D x H)
- Maximum load per drawer/grate: 16 kg/40 kg
- Weight: net 75 kg, gross 87 kg
