KIRSCH Laboratory Refrigerator LABO 288 PRO-ACTIVE
KIRSCH Laboratory Refrigerator LABO 288 PRO-ACTIVE
Couldn't load pickup availability
- Permanent monitoring of all performance data
- Tamper-proof temperature control
- Automatic recording of min./max. temperature
- With visual and acoustic alarm signal
- Available in various variants

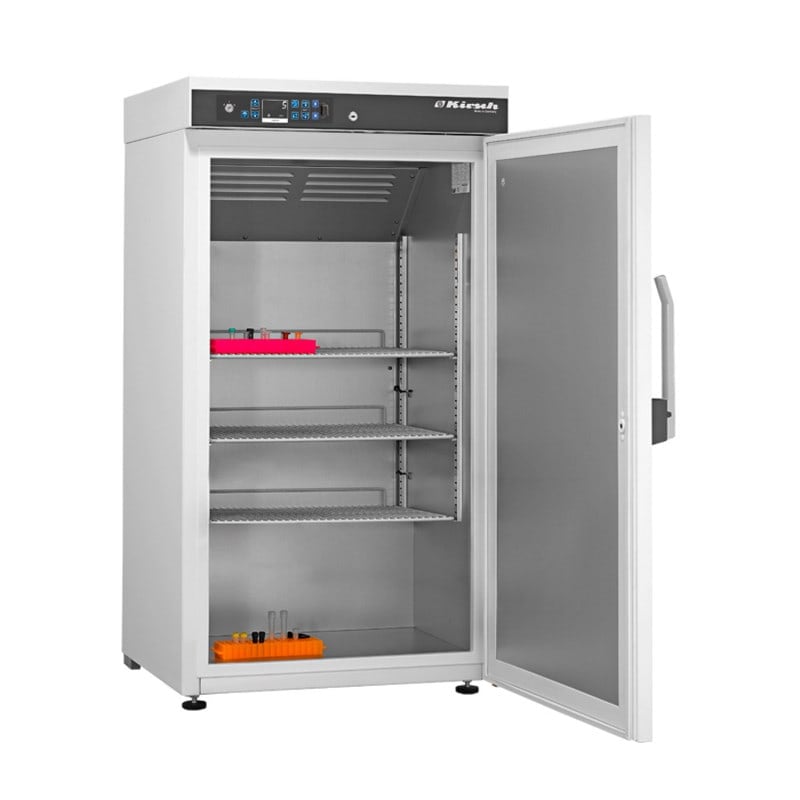

KIRSCH Laboratory Refrigerator LABO 288
The KIRSCH LABO 288 Laboratory Refrigerator with PRO-ACTIVE control is compliant with DIN 13277and is used for the reliable and safe cooling of laboratory samples. Performance data is permanently and proactively monitored. In addition, efficient recirculating air-cooling ensures even temperature control in the interior with a low temperature gradient between the different storage locations. In case of power failure or malfunction, a visual and at the same time acoustic alarm indicates the malfunction. In the event of a power failure, the monitoring unit remains in operation for a further 30 hours thanks to a rechargeable battery. If required, it is possible to set up alarm forwarding, e.g. to a mobile phone. Thanks to the minimum and maximum temperature memory, there is no need for time-consuming documentation of this data. They can be quickly read and archived.
Product Details
- KIRSCH Laboratory Refrigerator LABO 288
- Features PRO-ACTIVE control
- Permanent and proactive monitoring of performance data
- With 2 standard PT-1000 sensors
- Efficient convection cooling for even temperature regulation
- Low temperature gradient between the storage locations
- Visual and acoustic alarm signal
- Battery operation of the monitoring unit for approx. 30 h in case of power failure
- Door opening alarm after 60 seconds
- Automatic defrosting and melt water evaporation
- Freeze protection against minus temperatures
- Statically ventilated refrigerating machine
- Housing made of galvanised sheet steel (rust-protected)
- With white and scratch-resistant powder coating
- Adjustable feet in the front area
- Easy levelling of uneven floors possible
- Interior lined with smooth aluminium with coating
- Adjustable slats (15 mm) for flexible interior partitioning
- Including three plastic-coated grates
- Energy-saving insulation, 55 mm thick
- Lockable door with replaceable magnetic sealing frame
- Interchangeable door hinge (with right-hand hinge as standard)
- Compliant with DIN 13277
- Plug cable length: approx. 2.8 m
Differences Between PRO-ACTIVE and ULTIMATE
| PRO-ACTIVE | ULTIMATE | |
| Display | Membrane keypad with digital temperature display and min./max. temperature memory. | Capacitive touch display in elegant glass design. Graphic display of the temperature curve and the min/max temperature. |
| Temperature Setting | Protected by key switch. | Protected by RFID/password. Control and display sensor protected by safety barrier. |
| Alarm Forwarding | Via potential-free contact (e.g. on mobile phone with GSM module or connection to central control technology) | Via network and potential-free contact (e.g. connection to central control technology). |
| Data Documentation | Reading via USB interface using USB stick and KIRSCH Datanet software. | Digital - can be read via network (PC-KIT-NET) and KIRSCH Datanet software. |
| Access Control | No. | Yes - with log function and device documentation. |
Technical Specifications
- Capacity: 280 litres
- Temperature setting: approx. 0 to +15 °C*
- Voltage: 220 - 240 V, 50/60 Hz
- Power input: 88 watts
- Standard consumption: 0.68 kWh/24 h
- Permissible ambient temperature: +10 °C to +38 °C
- Heat emission (max.): 165 watts
- Outer dimensions (incl. wall clearance & door handle): 67 x 72 x 132 cm (W x D x H)
- Inner dimensions: 53 x 50 x 100 cm (W x D x H)
- Outer dimensions with door open at 90°: 67 x 130 cm (W x D)
- Grate size: 52 x 39 cm (W x D)*
- Maximum load per grate: 40 kg
- Weight: net 71 kg, gross 83 kg
*Values can deviate minimally depending on the variant (see product data sheet)
