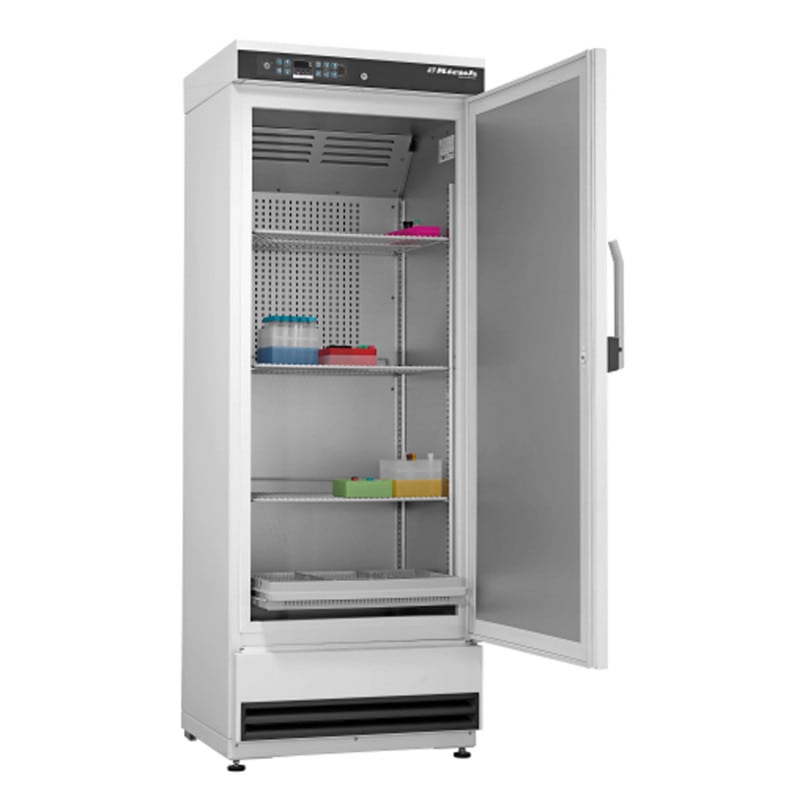

KIRSCH Laboratory Refrigerator LABO 468 PRO-ACTIVE

KIRSCH Laboratory Refrigerator LABO 468 PRO-ACTIVE

£4,580.93
£0.00 £4,580.93
Sale Sold out
Version
Product overview
  • With PRO-ACTIVE control
  • PT-1000 sensor for precise temperature control
  • Recirculating air cooling ensures constant temperature regulation
  • Low temperature gradient between storage locations
  • Audible & visual alarm in case of power failure

KIRSCH Laboratory Refrigerator LABO

The energy-saving KIRSCH LABO Laboratory Refrigerator complies with DIN 13277 and is equipped with an innovative PRO-ACTIVE control system that ensures permanent and proactive monitoring of all performance data. Two standard PT-1000 sensors ensure precise temperature regulation, while the efficient recirculating air cooling stabilises temperature control and causes small temperature differences between the individual storage spaces. The 55 mm thick insulation minimises the energy consumption of the laboratory refrigerator.


In the event of a power failure or other malfunctions, a visual and acoustic alarm indicates the malfunctions in the cooling system. Thanks to the battery, the monitoring unit remains in operation for another 30 hours despite the power interruption. The data of the integrated min. and max. temperature memory can be read via USB interface or via a network, depending on the version. This function saves the specialist staff the time-consuming manual documentation of the temperature data in everyday work.


Product Details

  • KIRSCH Laboratory Refrigerator LABO
  • With PRO-ACTIVE control (permanent monitoring)
  • Two PT-1000 sensors for precise temperature regulation
  • Recirculating air cooling ensures uniform temperature regulation
  • Low temperature gradient between the storage locations
  • Freeze protection against minus temperatures
  • Audible and visual alarm in case of power failure/malfunction
  • Door opening alarm after 60 seconds
  • Monitoring unit in operation for approx. 30 h due to rechargeable battery
  • Automatic defrosting and melt water evaporation
  • Lockable and self-closing door
  • Interchangeable door hinge (also retrofittable)
  • Energy-saving insulation (55 mm thick)
  • Housing made of galvanised sheet steel (rust-protected)
  • White powder-coated, particularly scratch-resistant
  • Adjustable feet in the front area
  • Easy levelling of uneven floors
  • Smooth aluminium interior with coating
  • Adjustable slats: 15 mm grid
  • Plug cable length: 2.8 m

Differences Between PRO-ACTIVE and ULTIMATE


 PRO-ACTIVE ULTIMATE
Display Membrane keypad with digital temperature display and min./max. temperature memory. Capacitive touch display in elegant glass design. Graphic display of the temperature curve and the min./max. temperature.
Temperature Control Protected by key switch. Protected by RFID/password.
Alarm Forwarding Via potential-free contact (e.g. on mobile phone with GSM module or connection to central control technology). Via network and potential-free contact (e.g. connection to central control technology).
Data Documentation Reading via USB interface using USB stick and KIRSCH Datanet software. Digital - can be read via network (PC-KIT-NET) and KIRSCH Datanet software.
Access Control No. Yes - with protocol function.
Warning Function Visual and acoustic alarm signal. Visual and acoustic alarm signal. In the event of a power failure, the monitoring unit remains in operation for approx. 30 h thanks to the rechargeable battery.
Silent Fan No. Yes.

Technical Specifications


 BL 340 BL 468
Capacity 330 Llitres 460 litres
Interior 1 drawer + 4 plastic-coated shelves 4 plastic-coated grates
Temperature Setting approx. 0 °C to +15 °C
Voltage 220-240 V, 50 Hz
Power Input 110 watts 170 watts
Standard Consumption 0.65 kWh/24 h
 1.00 kWh/24 h
Permissible Ambient Temperature
 +10 °C to +38 °C
Heat Emission (max.) 166 watts 280 watts
External Dimensions (incl. wall distance & door handle)
 67 x 66 x 189 cm (W x D x H) 74 x 77.5 x 189 cm (W x D x H)
Inner Dimensions 53 x 45 x 128 cm (W x D x H) 60 x 57 x 128 cm (W x D x H)
Outer Dimensions with Door Open at 90° 67 x 124 cm (W x D) 74 x 142 cm (W x D)
Grate Size
 53 x 39 cm (W x D)* 59 x 50 cm (W x D)
Max. Load Grate
 16/40 kg 40 kg
Weight 90 kg (net); 104 kg (gross) 113 kg (net); 127 kg (gross)
Refrigerating Machine
 Statically ventilated Forced ventilation

*Values can deviate minimally depending on the variant (see product data sheet)
