Product overview
*Without drying and dependent on loading and installation conditions such as mains voltage and air pressure, for example. We reserve the right to technical modifications
- Stand-alone quick steam sterilizer
- RKI-compliant sterilisation in only 7 minutes

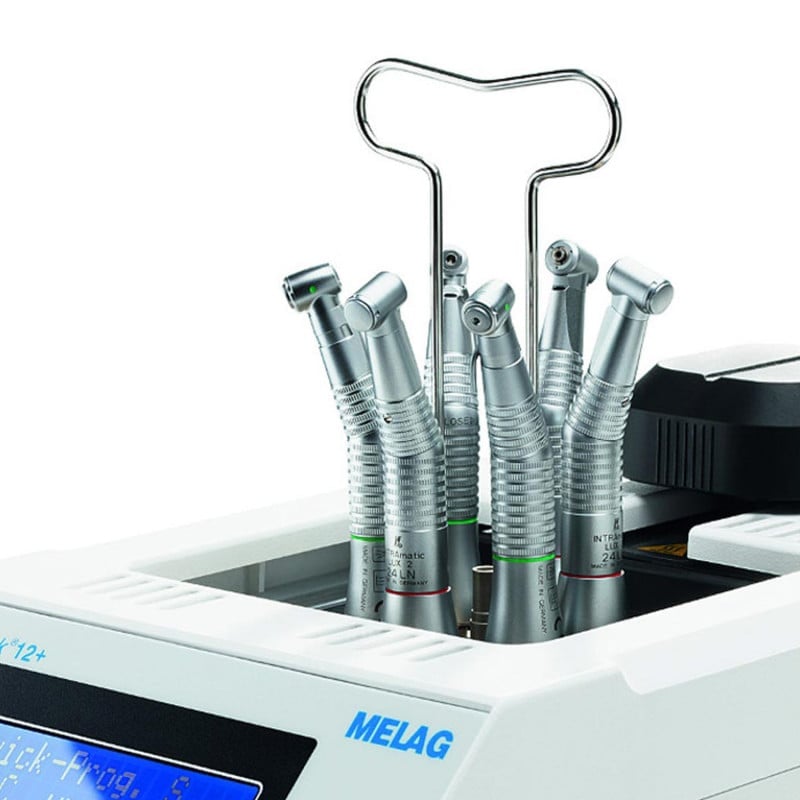

- For up to 12 transmission instruments
- Three class S programmes according to EN 13060
- With integrated compressor pump
MELAquick®12+ p

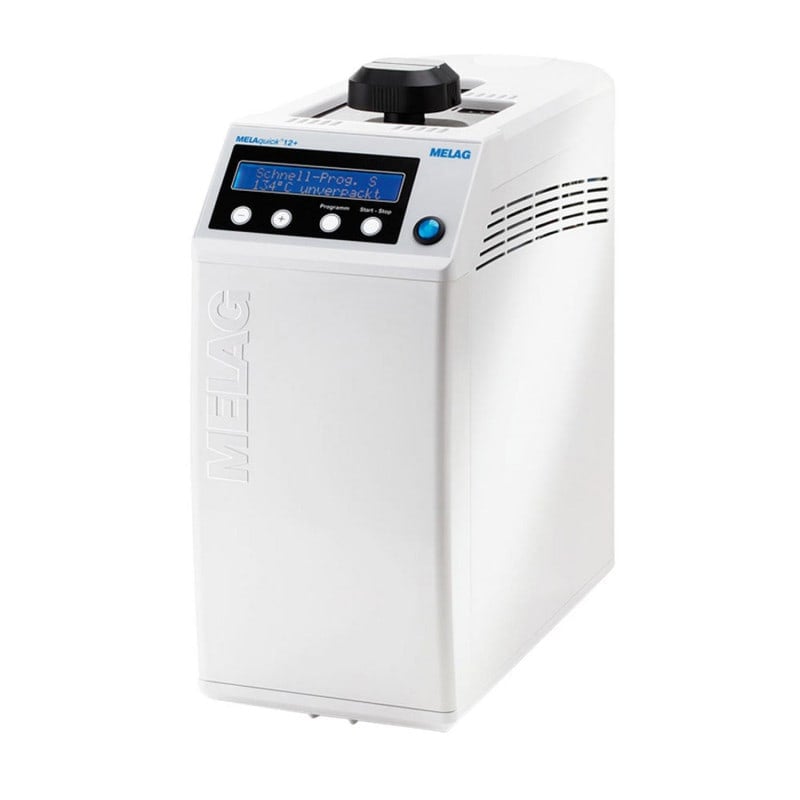

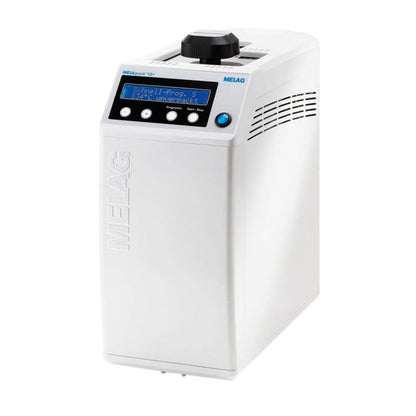

The stand-alone MELAquick®12+ p quick steam sterilizer from Melag is used for the rapid and RKI-compliant sterilization of up to 12 wrapped or unwrapped transmission instruments in only 7 minutes. It offers three class S programmes according to EN 13060, which can be easily selected via four softkeys on the display. The compact autoclave has an integrated compressor pump so that it can be used anywhere, even in rooms without a compressed air connection.
Product Details
- MELAquick®12+ p from Melag
- Stand-alone quick stream sterilizer
- Fast sterilisation within 7 minutes
- Instruments available again more quickly
- For up to 12 transfer instruments with a length < 20 cm
- Offers three class S programs according to EN 13060
- With integrated compressor pump
- Allows site-independent operation
- For RKI-compliant reprocessing of instruments
- Ideal for rooms without compressed air connection
- Compact and space-saving
- Suitable for wrapped and unwrapped instruments

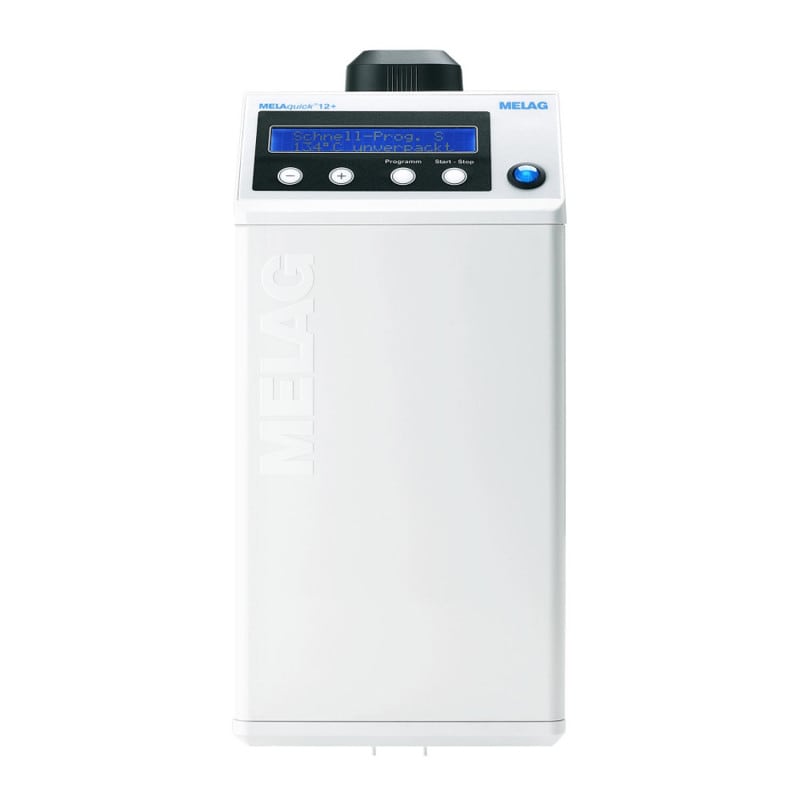

- Program can be selected via 4 softkeys on the display
- Class IIb medical device according to 93/42/EEC

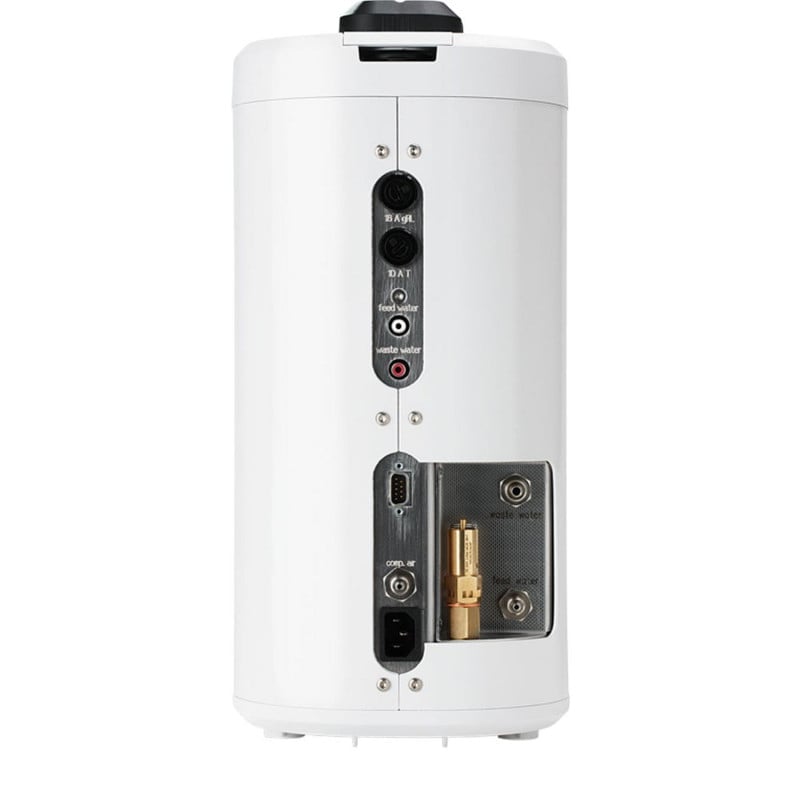

- With serial RS232 interface for documentation
Programs
| Packaging | Sterilization time | Operating time* | Drying | Loadng** | |
|
Quick-Program S |
unwrapped | 3.5 min. at 134 °C | 6-8 min. | ~ 1 min. | 1 kg |
| Universal-Program S | wrapped | 5.5 min. at 134 °C | 13-15 min. | ~ 8 min. | 1 kg |
| Prion Program S | wrapped | 20.5 min. at 134 °C | 28-34 min. | ~ 8 min. | 1 kg |
*Without drying and dependent on loading and installation conditions such as mains voltage and air pressure, for example. We reserve the right to technical modifications
**Maximum load for unwrapped instruments
Technical Details
- Air removal principle: Fractionated gravity method
- Drying: Pulsating overpressure drying
- Feed water: Aqua dem, Aqua dest
- Dimensions: 20.5 x 43 x 46 cm (W x H x D)
- Chamber (Ø x D) //Volume: 9 x 20 cm/ 1.35 l
- Weight (empty): approx. 24 kg
- Operating pressure/temperature: 2.2 bar/136 °C
- Electrical supply: 220-240 V; 50/60 Hz; 9.5 A; 2,050 W
