Neo ECG S120

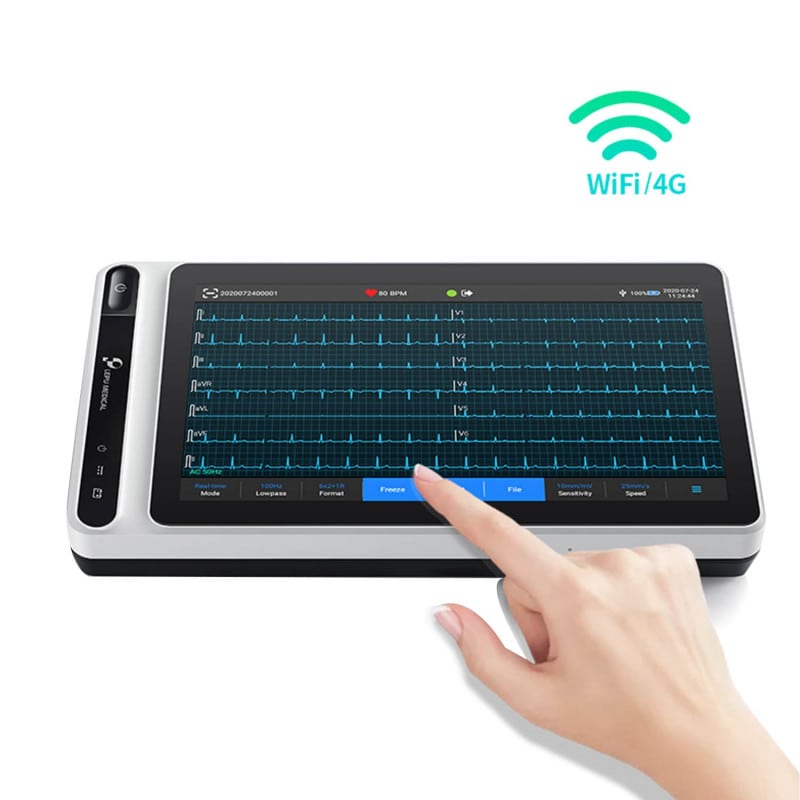

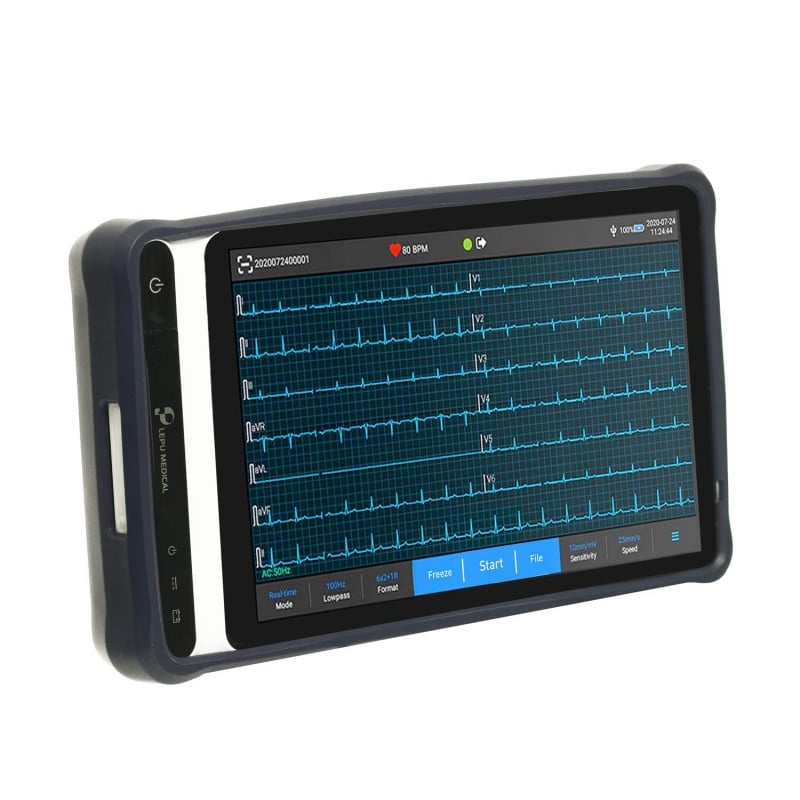

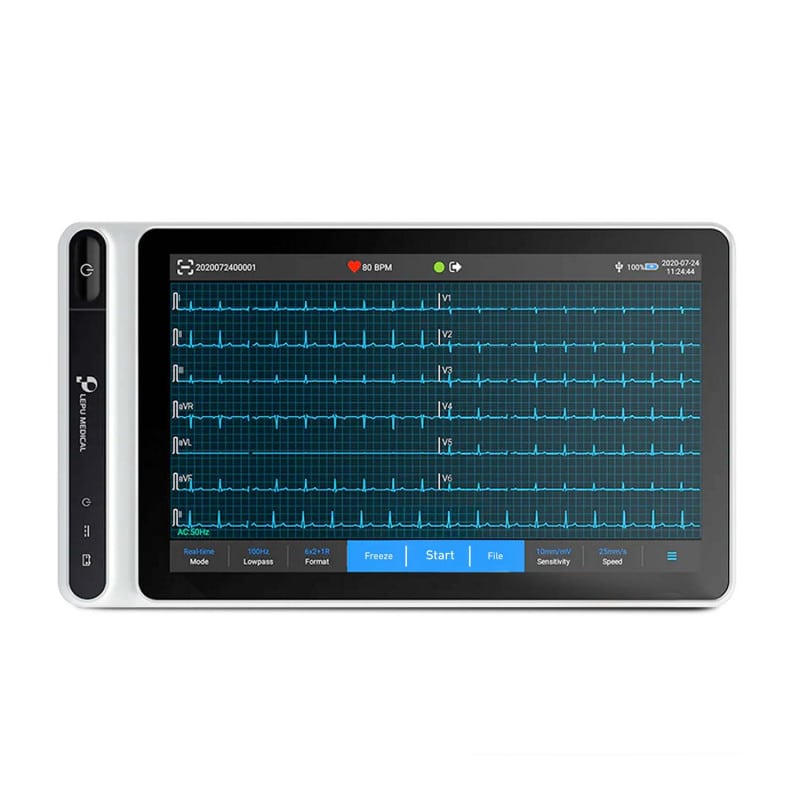

The Neo ECG S120 from Lepu Medical is a lightweight, portable medical EKG device in tablet design weighing less than 1 kg. It features a 7-inch touch screen and an integrated camera for convenient scanning of patient data. With WiFi connectivity, the device can be flexibly connected and operated using both an external DC power supply and an internal rechargeable lithium battery. The impressive battery life is 10 hours.
It supports synchronous acquisition and display of 9 and 12-lead waveforms and provides automatic pacing detection and marking for precise analysis. Patient information input can carried out via a virtual alphanumeric keyboard or barcode scanning. With versatile output options, files can be saved in various formats such as Carewell EKG, PDF, BMP, HL7, DICOM, and SCP.
Product Details
- Neo ECG S120 from Lepu Medical
- For recording resting ECGs
- Analysis algorithm: Glasgow
- 7-inch touch screen with a resolution of 1024 x 600
- High precision and analysis speed
- Can be powered by an external DC power supply or a built-in rechargeable lithium battery
- Simultaneous acquisition and display of 9/12-lead waveforms, as well as automatic heart rate detection
- Automatic pacing detection and marking
- File output in formats Carewell EKG, PDF, BMP, HL7, DICOM, SCP
- Input patient information via virtual alphanumeric keyboard and barcode scanning
- Supports automatic analysis of blood pressure, heart rate variability (HRV), medical tests, and EKG event mode
- 4 sampling modes: pre-sampling, real-time sampling, periodic sampling, and trigger sampling
- Portable ECG analysis device with integrated camera
- Up to 10 hours of battery life

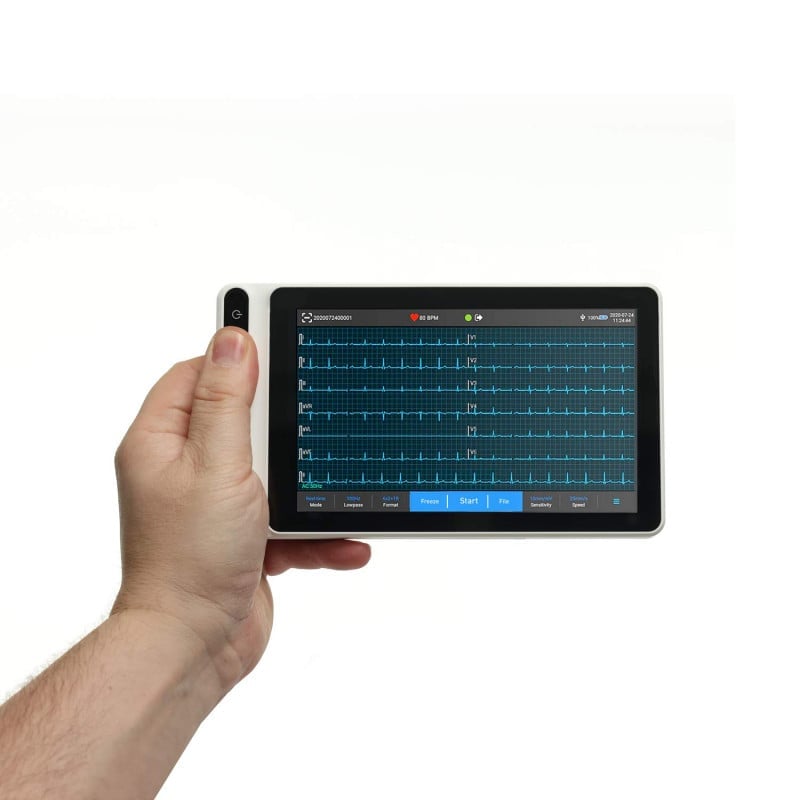

- Particularly lightweight, easy operation with touch screen
- WiFi compatible
- Dimensions (L x W x H): 197 x 112.4 x 26.1 mm
- Colour: white

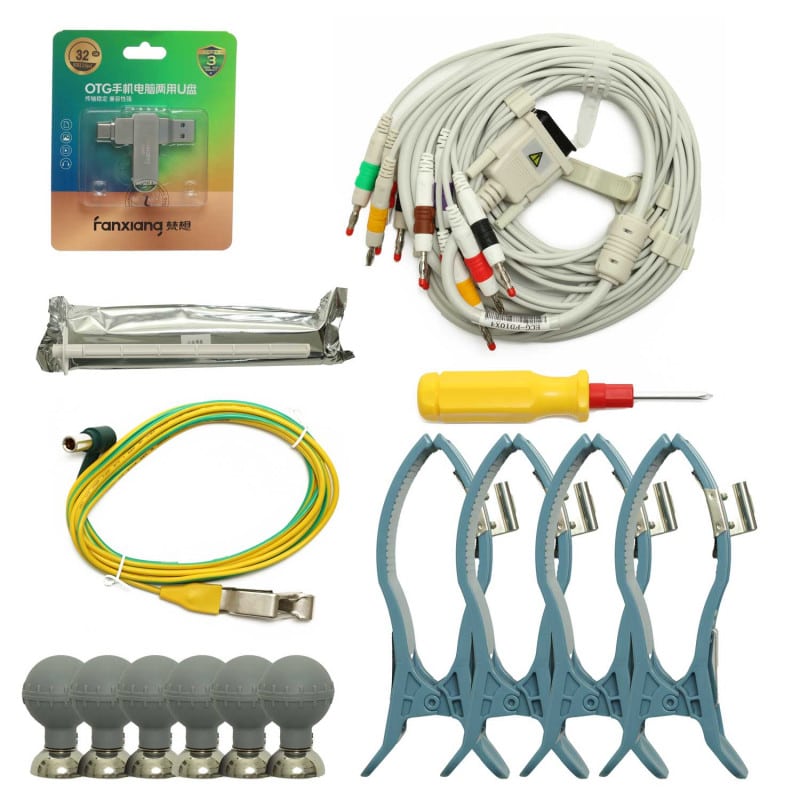

- Delivery contents: 7-inch ECG tablet, ECG cable, chest electrodes, limb electrodes, battery, power cable
Technical Details
| Display | 7-inch colour touch screen |
| Resolution | 1024 x 600 pixels |
| Size (L x W x H) | 197 x 112.4 x 26 mm |
| Weight | 0.8 kg |
| Power Supply | DC power supply or rechargeable lithium battery |
| Sampling Rate | 32,000 dots/s |
| Leads | 9-lead, 12-lead (simultaneous acquisition & analysis) |
| Analysis Algorithm | Glasgow |
| HR Range | 30 - 300 bpm |
| Accuracy | + 1 |
| Input Impedance | ≥ 100 MΩ (10Hz) |
| Input Loop Current | < 10 nA |
| Calibration Voltage | 1 mV +2 % |
| Depolarization Voltage | ± 900 mV, ± 5 % |
| System Noise | ≤ 12.5 μV |
| Amplitude Quantification | 0.95 μV / LSB |
| A/D Conversion | 24-bit |
| Common Mode Rejection Ratio (CMRR) | ≥ 140 dB (AC filter on) / ≥ 120 dB (AC filter off) |
| Time Constant | ≥ 5 s |
| Sensitivity | Auto, 2.5 mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV, 40 mm/mV Accuracy ± 5 % |
| Frequency Response | 0.01 Hz ~ 350 Hz (+0.4dB - 3.0 dB) |
| Filters | - AC Filter 50Hz, 60Hz, Off - EMG Filter: 25Hz, 35Hz, 45Hz, off - ADS Filter: 0.01Hz, 0.05Hz, 0.32Hz, 0.67Hz - Low Pass Filter: 75Hz, 100Hz, 150Hz, 300Hz, off |
| Electrode Polarization Recovery Time | < 10 s |
| Pace Pulse Display | Display ECG signal for pacing pulses with an amplitude of ±2mV to ±700mV, a duration of 0.1 ms to 2.0 ms, a rise time of less than 100 μs, and a frequency of 100/min |
