PanOptic Basic Ophthalmoscope

PanOptic Basic Ophthalmoscope

£973.04
£0.00 £973.04
Sale Sold out
Product overview
  • High-quality ophthalmoscope instrument head
  • Long-lasting and powerful LED illumination
  • Provides up to 20x larger field of view
  • With focus wheel and standard apertures
  • Greater working distance for enhanced comfort

PanOptic Basic Ophthalmoscope

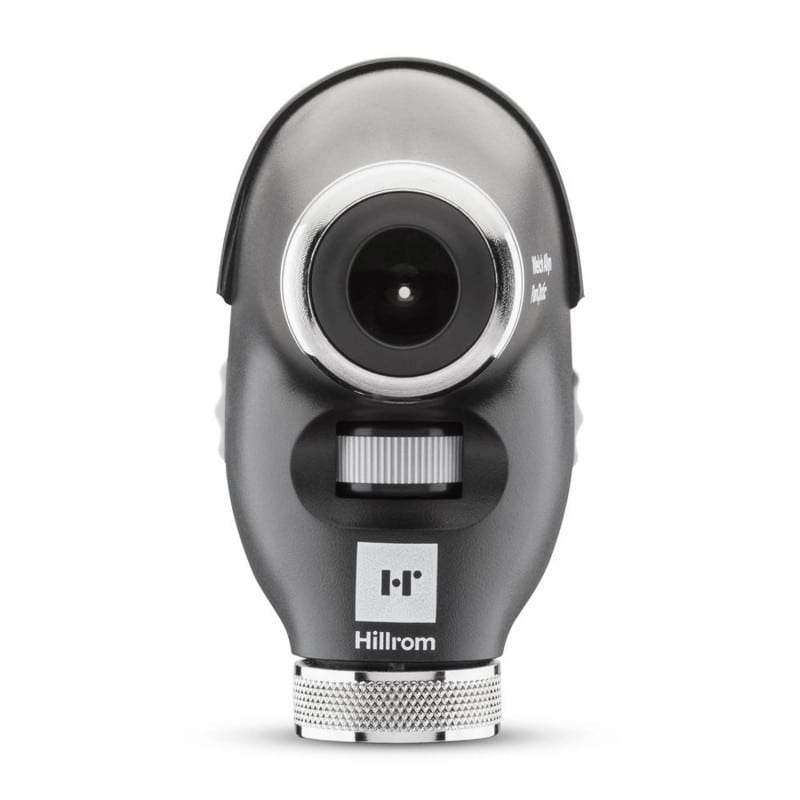

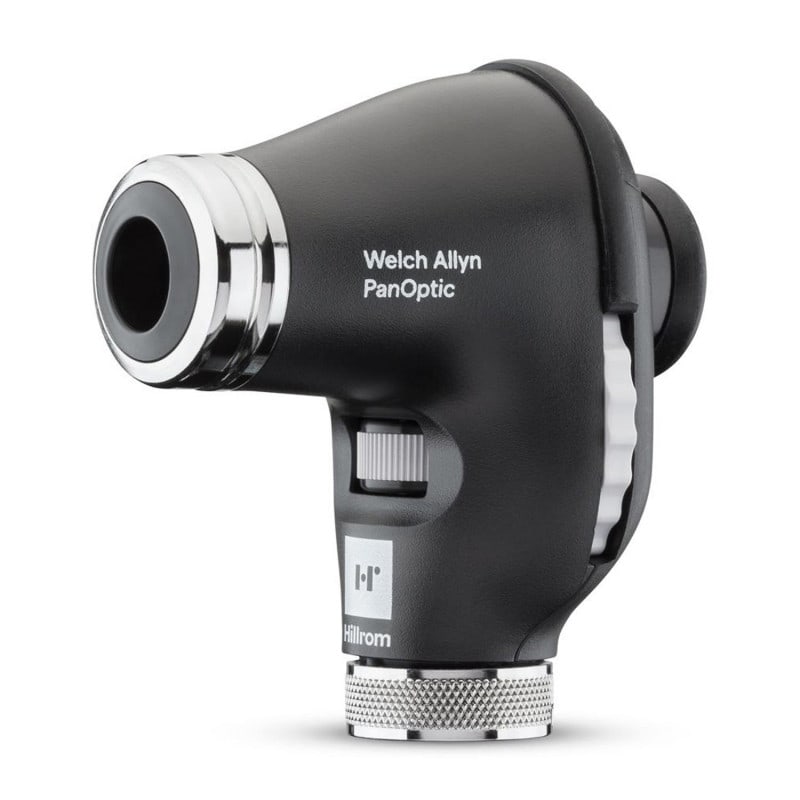

The 3.5 V LED PanOptic Basic Ophthalmoscope from Welch Allyn is a high-quality instrument head equipped with powerful, long-lasting LED illumination and protective DuraShock technology for added reliability. It offers a 20x larger viewing area than standard ophthalmoscopes and includes familiar focus wheel and standard apertures. Its greater working distance enhances comfort for both practitioner and patient. Please note, a handle must be ordered separately.



Product Details

  • 3.5 V LED PanOptic Basic Ophthalmoscope from Welch Allyn
  • High-quality ophthalmoscope instrument head
  • Equipped with a durable and powerful LED light source
  • 20x larger field of view compared to standard ophthalmoscopes
  • Includes familiar focus wheel and standard apertures
  • Features DuraShock technology
  • Provides a greater working distance between doctor and patient
  • Handle not included (must be ordered separately)
  • Compatible with handles from other manufacturers
  • Compatible with all 3.5V power sources and wall transformers from Welch Allyn
  • Manufacturer's warranty: 1 year



Technical Specifications

Dimensions (H x W x D) 8 x 4.5 x 7.5 cm
Weight 130 g
Apertures Small, large, red-free, slit, fixation cross, cobalt blue
Dioptre Range -20 to +25 D
Dioptre Steps -20, -15, -12, -10, -9, -8, -7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 15, 20, 25
Cross-linear polarisers Yes
Lamp Type and Warranty SureColor™ LED, 7 years warranty
Colour Colour Rendering Index (CRI): 95 (typical); R9: 85 (typical); Colour Temperature: 2,700 K – 3,500 K
Lamp Life Min. 80 years (typical)
Field of View 20°
