Prime Line Vacuclave® 323 (23 Litres)

Prime Line Vacuclave® 323 (23 Litres)

£8,581.63
£0.00 £8,581.63
Sale Sold out
Version
Product overview
  • Stand-alone class B autoclave made in Germany
  • Powerful vacuum process according to EN 13060
  • Safe sterilisation of instruments and textiles
  • DRYtelligence drying finished after 5 minutes
  • Data documentation via USB or network

Prime Line Vacuclave®

The stand-alone Prime Line Vacuclave® class B autoclave is used for reliable sterilisation of instruments and textiles on 5 trays or in up to 3 MELAstore sterilisation containers - in only 15 to 32 minutes. Thanks to the algorithm-controlled DRYtelligence function, drying time is reduced by up to 80%. The cost- and resource-saving entry-level model also impresses with smart operating and documentation concepts and ensures super efficient hygiene workflows in human, dental and veterinary medicine.


Product Details

  • Prime Line Vacuclave® from Melag
  • Stand-alone class B autoclave for up to 8 kilos
  • Powerful vacuum process according to EN 13060

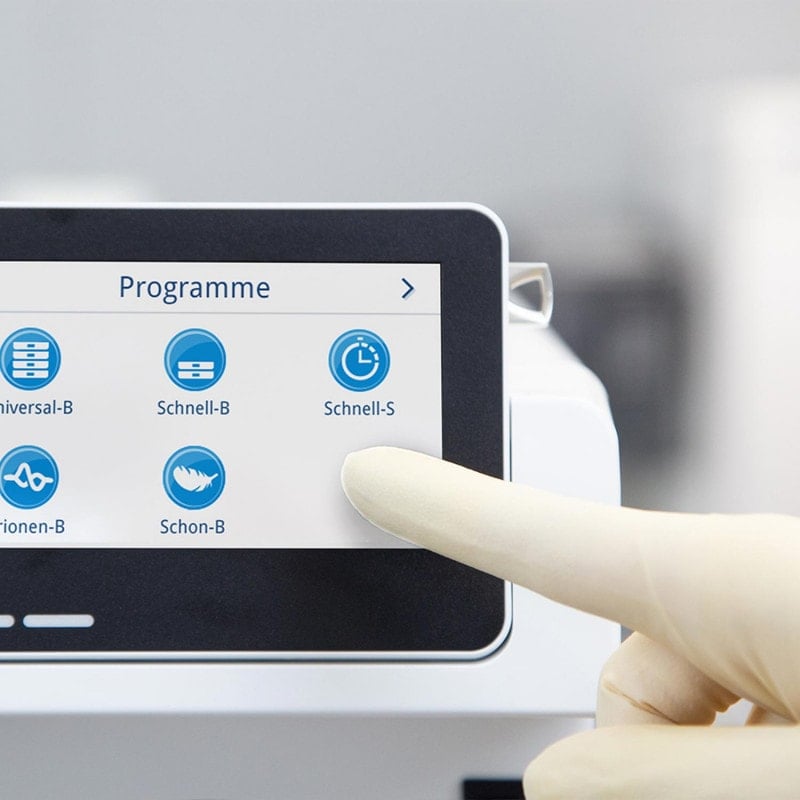

  • With 4.3" smart-touch display with intuitive menu
  • Batch release and user authentication directly on the display
  • Reliable sterilisation on 5 trays within 15-32 minutes
  • Provides sufficient storage space for up to 3 MELAstore sterilisation containers
  • Up to 80% shorter, algorithm-controlled drying (DRYtelligence)
  • Ideal drying results protects against recontamination and corrosion
  • Smart documentation concept for complete and legally compliant verification
  • Logging of sterilisation data via USB stick or network
  • With integrated water tanks and efficient air cooling
  • Site-independent operation possible without cooling water
  • With Power Save energy-saving mode (heating and display in sleep mode)
  • Ensures high energy efficiency
  • User-friendly filter exchange, tank cleaning and water supply
  • For convenient and resource-saving sterilisation
  • Compatible with additional water treatment systems
  • Developed and manufactured in Germany
  • Optionally available with 17 or 23 litre capacity

Unbeatable Price-Performance Ratio

MORE PERFORMANCE LESS COST
35% shorter cycle times

15% more load

100% intuitive operation		 25% cheaper

50% less maintenance

96% less water consumption


Programs

Programs of Prime Line Vacuclave 318 operating times* Vacuclave 323 operating times* DRYtelligence Drying (time controlled)
Universal-B 134 °C - 5.5 min.** 22-27 minutes 24-31 minutes ab 5 minutes 20 minutes
Quick-S 134 °C - 3.5 min.** 15-18 minutes 16-20 minutes ab 5 minutes 5 minutes
Quick-B 134 °C - 5.5 min.** 22-25 minutes 24-27 minutes ab 5 minutes 10 minutes
Gentle-B 121 °C -20.5 min.** 37-42 minutes 39-47 minutes ab 5 minutes 20 minutes
Prion-B 134 °C - 20.5 min.** 37-42 minutes 37-48 minutes ab 5 minutes 20 minutes
Heavy Duty-B 134 °C - 5.5 min.** 22-32 minutes 24-35 minutes ab 5 minutes 30 minutes

*At minimum to maximum load

**Hold time


Technical Specifications


 Vacuclave 318 Vacuclave 323
Chamber size ø 25 cm x 35 cm lang ø 25 cm x 45 cm lang
Chamber volume 17 Liter 23 Liter
Max. load max. 7 kg instruments/ 1.8 kg textiles max. 8 kg instruments/ 2 kg textiles
Dimensions (W x H x D) 47 x 50 x 64 cm (fits on 60 cm table tops)
Weight 48 kg 49 kg
Power suppy 220-230 V/ 50-60 Hz
Power consumption 2.100 watts
Maintenance cycles 2.000 cycles or 2 years
