Radiation Protective Shield OT94001

• Unobstructed view
• Rounded corners and edges
• High level of resistance against breaking
• Perfect adaptation to the patient's body
• Reduces scattered radiation exposure

Radiation Protective Shield OT94001

The Radiation Protective Shield OT94001 from MAVIG is specifically designed for use during femoral and radial accesses in coronary angiographies and interventions. It provides excellent visibility with maximum radiation protection efficiency, ensuring clear visibility during procedures. The shield offers high break resistance with rounded corners and edges to minimize the risk of injury.

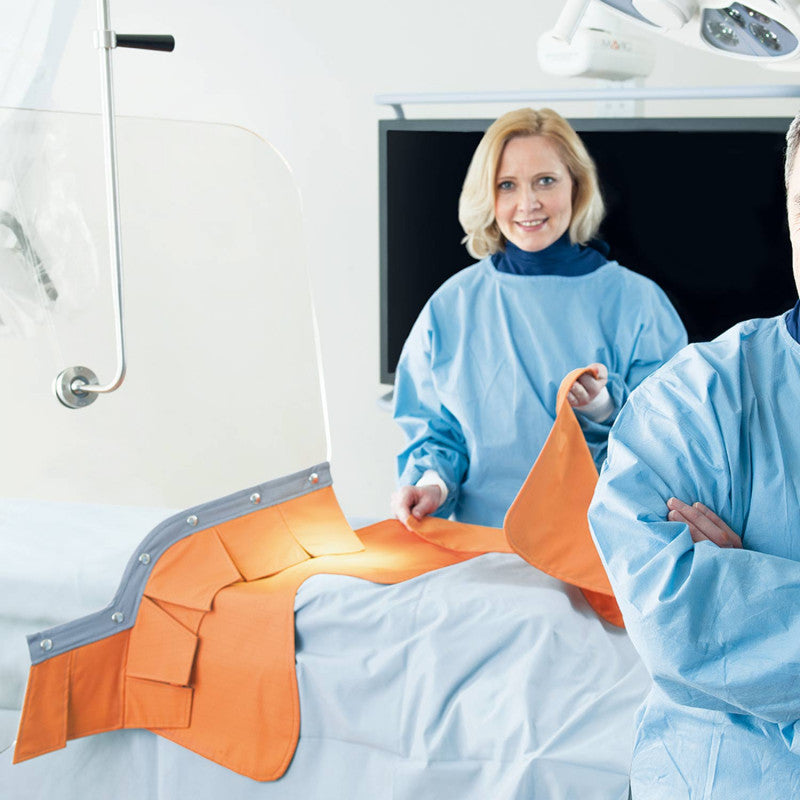

The Radiation Protective Shield OT94001 features a lamellar curtain that conforms perfectly to the patient's body, effectively reducing scattered radiation exposure. It can be easily removed and cleaned, similar to an X-ray apron. With a lead equivalent of Pb 0.50 mm and a total weight of 15.0 kg, this shield provides robust protection, while the extension arm and spring arm ensure flexible positioning.

Product Details

• Radiation Protective Shield OT94001 from MAVIG
• Tabletop scattered radiation protection
• For femoral and radial access
• Provides unhindered visibility with optimal transmission
• Easy to clean
• Minimizes injury risk with rounded corners and edges
• High break resistance
• Curtain ensures perfect adaptation to the patient's body
• Reduces scattered radiation exposure that might reach the examiner

Technical Specifications

• Lead acrylic shield: H x W 90 x 78 cm
• Weight: 15.0 kg (including curtain)
• Lead equivalent: Pb 0.50 mm (shield, lamellar curtain)

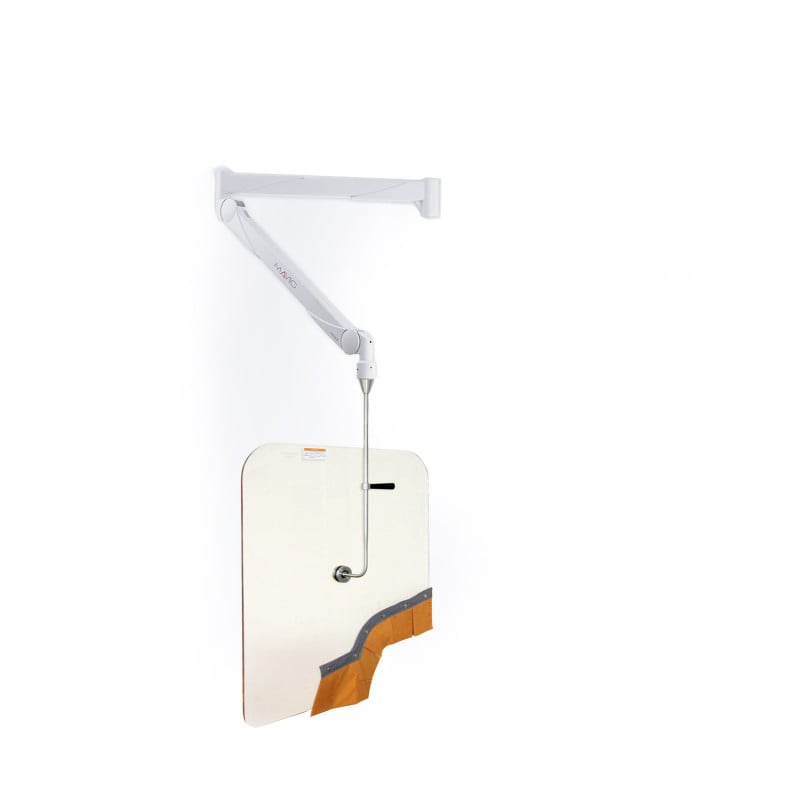

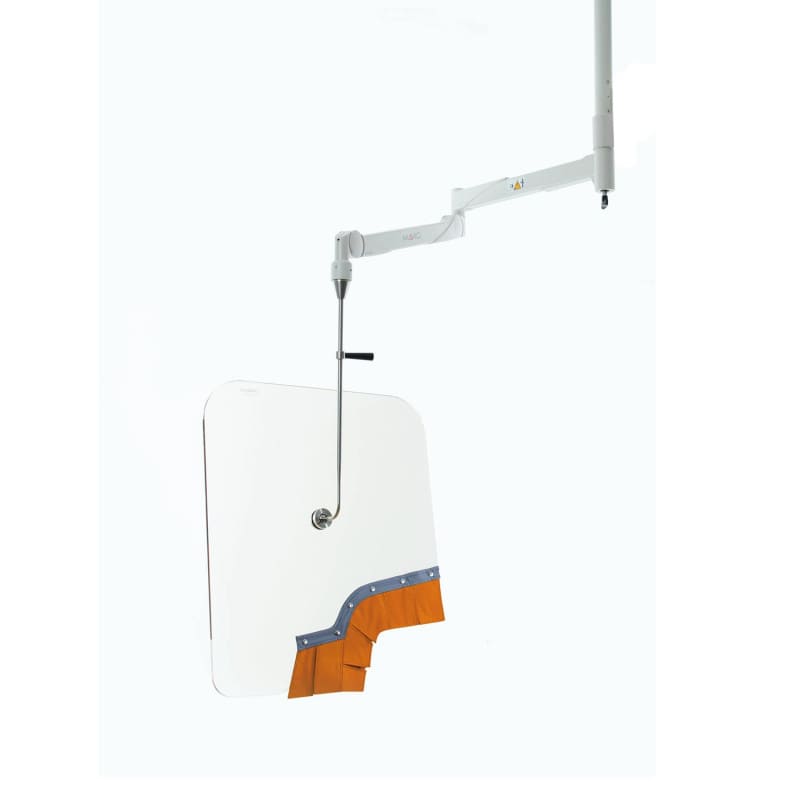

• Extension arm / spring arm: Lengths 95 cm / 91 cm
