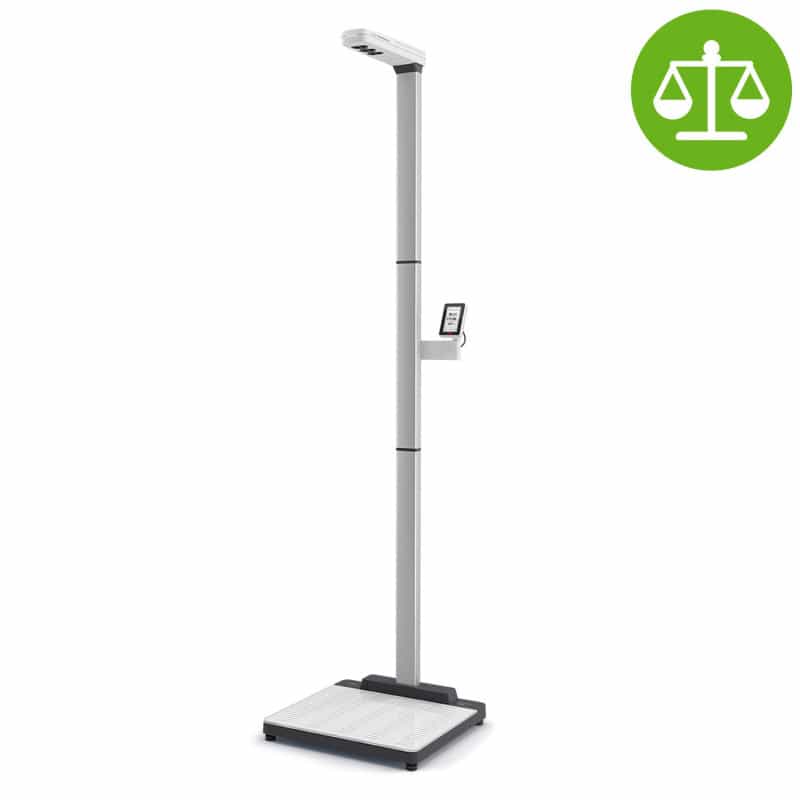

seca 655 Scale-up Measuring Station without standing aid

• Calibration class III
• Weighing and measuring in one step
• With large, rotating display
• Break-resistant platform made of Bearclaw Glass®
• Optionally available with standing aid

seca 655 Scale-up Measuring Station

The seca 655 Scale-up ultrasonic measuring station from the Scale-up series is suitable for hygienic and convenient determination of height, weight and BMI in just one step. Using three pairs of sensors, the measurement is not only exact, it can be done completely hands-free. In addition, it is possible to facilitate the measurement with the automatic voice guidance feature and the illuminated footprint-shaped LEDs integrated in the platform.

The particularly large weighing platform made of break-resistant Bearclaw Glass® is extremely robust. Thanks to the sealed surface it is also particularly hygienic. The measuring station has smooth-running rubber castors and, if necessary, can be conveniently transported to the desired place of use.

The calibrated measuring station can be fully integrated into common EMR systems and allows the measured values to be saved in the digital patient file. This guarantees an efficient and safe workflow.

Product Details

• seca 655 Scale-up ultrasonic measuring station
• From the seca Scale-up Line
• Calibration class III
• Weighing and measuring in just one step
• For combined determination of height, weight, BMI and auto-BSA (body surface area)
• Contactless measurement thanks to three pairs of sensors
• Automatic voice guidance possible
• Large weighing platform made of Bearclaw Glass®, particularly robust and break-resistant
• Sealed platform surface for optimal hygiene
• With footprint-shaped LEDs for correct positioning of the patient during measurement

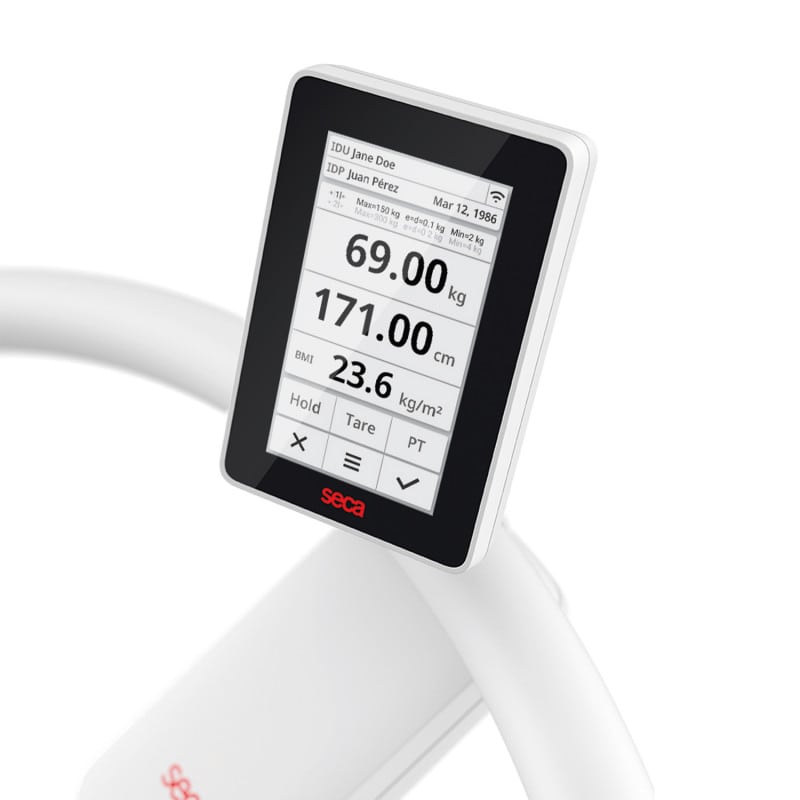

• With intuitive ID display - can also be used with gloves on
• Can be fully integrated into common EMR systems
• User-friendly transmission of measured values to the digital patient file
• Mobile use thanks to smooth-running rubber castors
• With water level for horizontal positioning
• With LAN, WLAN and USB interface (e.g. for barcode scanner)
• Power supply via mains unit
• Dimensions: 600 x 2387 x 614 mm (W x H x D)
• Optionally also available with standing aid (handrail)

Technical Details: Weighing

• Calibration class III
• Load capacity: 300 kg
• Scale: 50 g < 150 kg < 100 g
• Display of name or ID of user and patient
• TARE function
• Pre-TARE
• Mother-child function
• HOLD, Auto-HOLD
• Auto-BMI
• Auto-BSA (body surface area)
• CLEAR, Auto-CLEAR
• Auto weighing range switching
• Adjustable damping
• Standby mode
• Platform dimensions: 600 x 70 x 467 mm (W x H x D)

Technical Details: Measuring

• Measuring range: 60 - 220 cm
• Graduation of measuring range: 1 mm
• Automatic calibration
