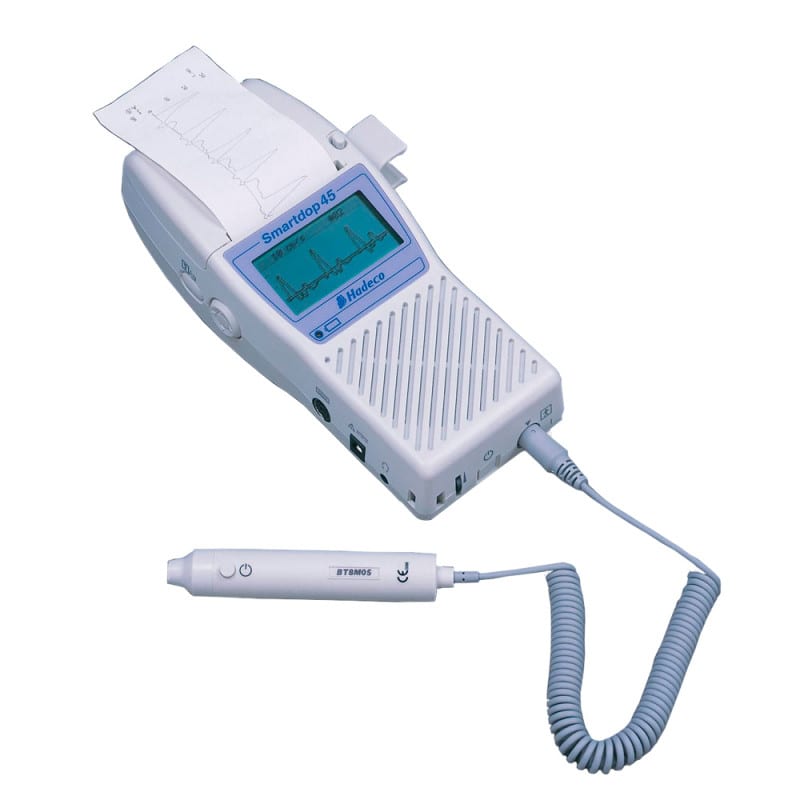

Smartdop 45 Bi-Directional Doppler

• With thermal printer and speaker
• Wide spectrum of use
• Internal memory
• Battery operated
• Automatic transponder recognition

Smartdop 45 Bi-Directional Doppler

The Smartdop 45 bi-directional doppler is a diversely applicable CW pocket doppler with an integrated thermal printer, adjustable speaker and an easy-to-read LCD display. The USB port allows the date from the Smartdop 45 to be easily transferred to a computer. The compatible Smart-V-Link software is available as a separate accessory.

Whether it is for use in paediatrics, obstetrics, internal medicine or angiology, this bi-directional doppler is suited for the widest range of disciplines.

Product Details for the Smartdop 45

• Bi-directional doppler
• Model: Smartdop 45
• CW pocket doppler
• Integrated thermal printer
• LCD display
• Speaker (adjustable volume)
• Patient data input via the navigational button
• Internal memory for up to 30 wave forms
• Display and printout of wave forms, measurement values and foetal heart rate
• Various transponders applicable (2, 4, 5, 8 and 10 MHz)
• Delivery incl. 8 MHz transponder (additional transponders available upon request)

• Automatic transponder recognition
• USB port for data transfer to PC
• Data printout on thermal paper, 5.8 cm (W) x 2.5 cm (L), print speed: 25 mm/s
• Freeze and printout with the push of a button
• Automatic switchoff
• Multilingual software (English, Deutsch, Français, Español, Italiano)
• Optional mit Smart-V-Link Software (zur Bestimmung von ABI, TBI und Blutflussgeschwindigkeit)

• NiMH battery (operating time approx. 2.5 hours)
• Ports: headphones, USB, PS/2 for PC keyboard

• FFT analysis by the optional Smart-V-Link software (not included in delivery)
• Dimensions: 11.5 x 21 x 6 cm (W x D x H)


Areas of Application:

• Peripheral vascular examinations
• Determination and display of the foetal heart beat (with 2 MHz transponder)
• Estimate of the venous return flow (PPG), optional

• Maximum venous flow (PV), optional

• Segmental blood pressure examinations
• Systolic pressure from the penis, toes and fingers
• Pulse examination of the feet

Measurement Values:

• Systolic, middle and diastolic speed
• Resistance
• Perfusion index
• Systoles/Diastoles (S/D)
• Ratio
• Heart rate


The Smartdop 45 bi-directional doppler will be delivered to you including an 8 MHz transponder, AC adapter, ultrasound gel, thermal printer paper and carrying case.
