SmartScript BT ECG System

• Complete set including 12" notebook
• For administering 12-lead resting ECGs
• Ideal for ECG exams on house calls
• Automatic evaluation (Glasgow ECG Program)
• Simple reporting

SmartScript BT ECG System

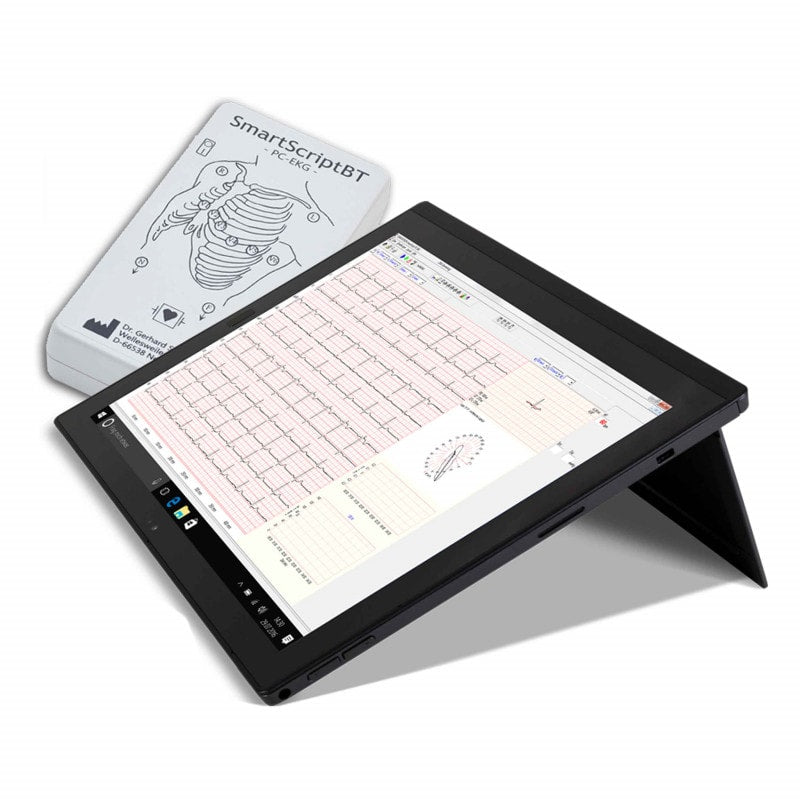

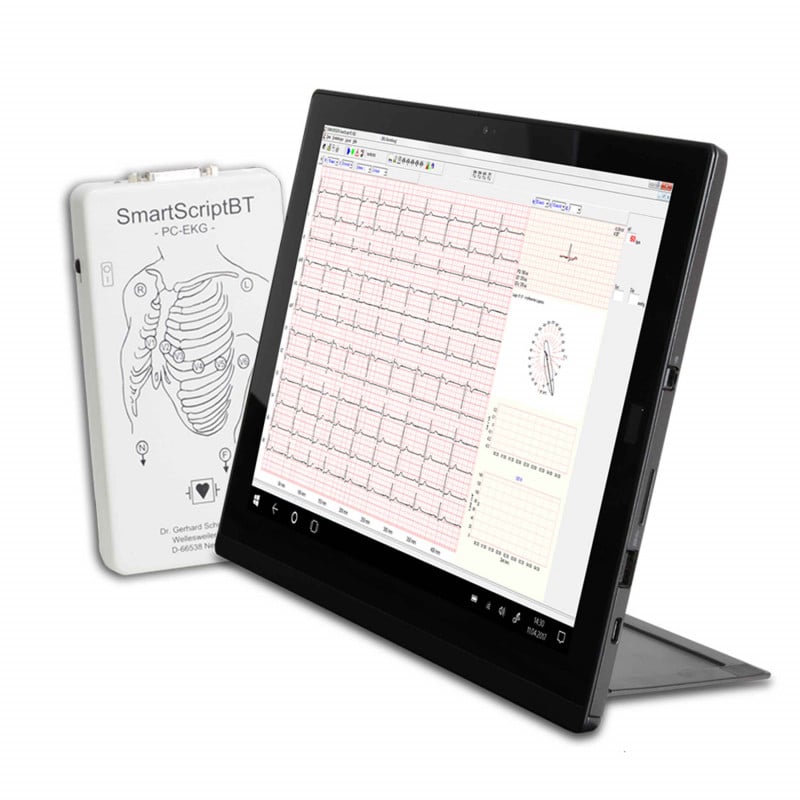

The SmartScript BT ECG system from Dr. Gerhard Schmidt is a ready-to-use set with which resting ECGs can be carried out during house calls. In addition to the SmartScript Bluetooth ECG module, this set contains a patient cable, 60 adhesive electrodes and an ultra-compact 12" notebook with touch functionality and the compatible ECG software.

Since the notebook has 3G LTE mobile technology, the ECG exam can be sent directly from the patient to the surgery via PDF. This makes it possible for a medical employee to carry out the ECG during a consultation, for example.

The SmartScript BT ECG system also comes with a high-end interpretation software (Glasgow ECG Program) with automatic evaluation and interpretation, which can generate reports in various formats. If necessary, the BT ECG system can be extended with other options, such as a GDT interface or an ergometer option.

Product Details for the SmartScript BT ECG System

• PC-based 12-lead resting ECG
• Complete set for administering resting ECGs on house calls
• Real-time curve representation
• Automatic evaluation of axes, intervals and amplitudes
• Electronic ECG ruler for evaluation directly on the monitor
• High-end interpretation software for automatic evaluation with diagnostic tips (Glasgow ECG Program)
• Intuitive operation (ECG recorded with only 2 clicks)
• Simple reporting (such as PDF format)
• Comprehensive storage possibilities
• Emergency ECG module (records without previously input patient data)
• Data transmission via Bluetooth
• Modularly expandable

Advantages of Bluetooth ECG Transmission:

• Better mobility
• Higher signal quality
• Range in closed spaces: 10-15 metres
• No isolating transformer required

Technical Data for the Notebook

• TERRA PAD 1270
• Intel® Core™ m3-7Y30 processor (4 MB cache, 2.60 GHz)
• Windows 10 Pro

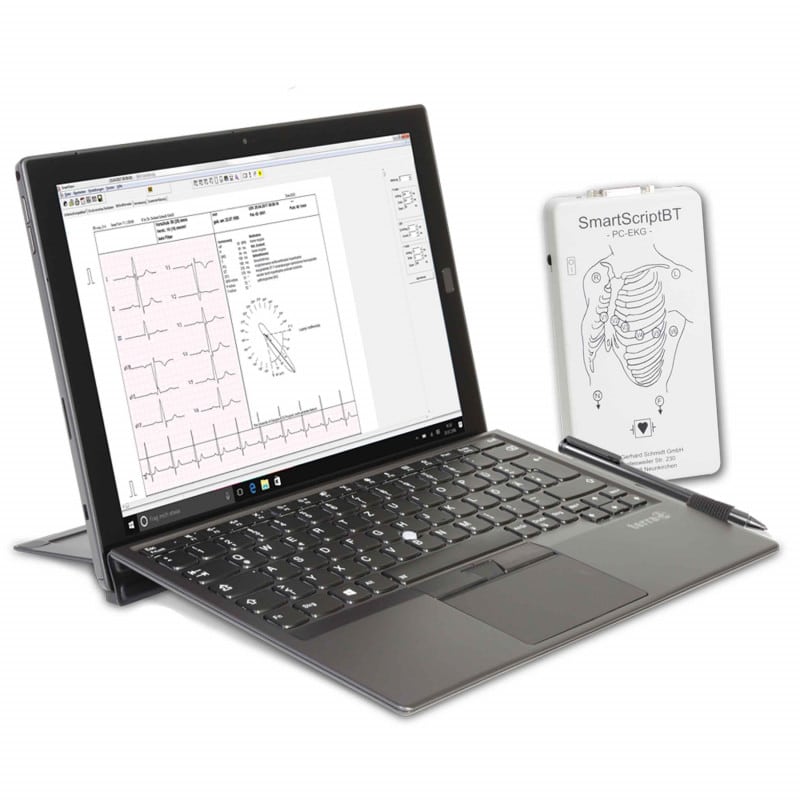

• Keyboard included
• Multi-touch FHD display
• 4 GB RAM
• Ports: 1x USB 3.0, 1x USB type-c mini-DP card reader (microSD), nanoSIM, 1x headset (Kensington Lock)
• Approx. 9 hours battery life (with full charge)
• Internal storage space: 128 GB
• WLAN standard: IEEE 802.11 a/b/g/n/ac
• Bluetooth 4.2
• With back and front camera
• 8.75 x 29.1 x 20.95 cm (H x W x D)
• 783 g

Contents of the SmartScript BT Kit:

• High-quality, ultra-compact 12" notebook with touch functionality, active pen and LTE option
• Bluetooth ECG enhancer
• Patient cable
• Evaluation and interpretation software
• Emergency ECG option

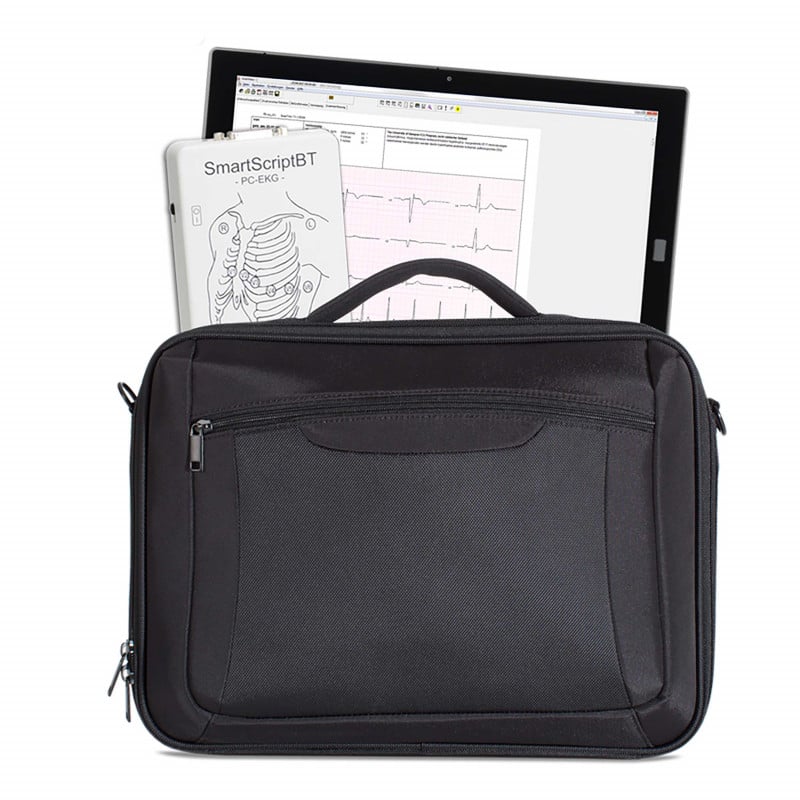

• Bag for storing notebook and ECG enhancer
• User manual
• 60 adhesive electrodes
