SmartScript PC-ECG System USB | Premium

SmartScript PC-ECG System USB | Premium

Regular price £3,619.55
Regular price £0.00 Sale price £3,619.55
Sale Sold out
Variant
Option
Product overview
  • 12-lead, PC-ECG for resting ECGs
  • Intuitive operation
  • Comprehensive storage options
  • Delivered as a set, incl. cable, electrodes and software
  • With GDT interface

SmartScript PC-ECG System

The expandable SmartScript PC ECG system from Dr. Gerhard Schmidt can be easily expanded from a 12-lead resting ECG to an ergo-spirometry system with the help of the appropriate modules. The recorded patient and ECG data are archived in an SQL-capable client/server database and can be accessed and subsequently edited from any workstation to which the ECG system is connected.


Thanks to the GDT and HL7 interface, it is possible to integrate data securely and quickly into the existing practice EDP. If required, the CE-marked software can be freely combined with other Dr. Gerhard Schmidt products such as the Smartholder24 or SmartScan24.


The SmartScript PC ECG system is available in three different complete packages, with either a USB cable or with Bluetooth.


Product Details

  • SmartScript PC ECG system from Dr Gerhard Schmidt
  • Can be upgraded from a resting ECG to an ergo-spirometer
  • Archiving of patient and ECG data in SQL-compatible client/server database
  • Examinations can be viewed from any integrated workstation
  • Subsequent editing and transmission via GDT and HL7 interface possible
  • Variable channel selection of ECG
  • Recording duration resting ECG: 10 seconds
  • Options: Rhythm ECG, electronic measurement, automatic interpretation
  • Recorded data can be evaluated digitally or printed out as desired
  • CE-marked software can be freely combined with other products (e.g.: Smartholder24 or SmartScan24)
  • Particularly economical
  • Optionally available with USB cable or Bluetooth
  • Various complete packages available

Ordering Information


Basic Basic Plus Premium
Delivery Contents SmartScrip ECG Module
Connection cable SmartScript ECG module

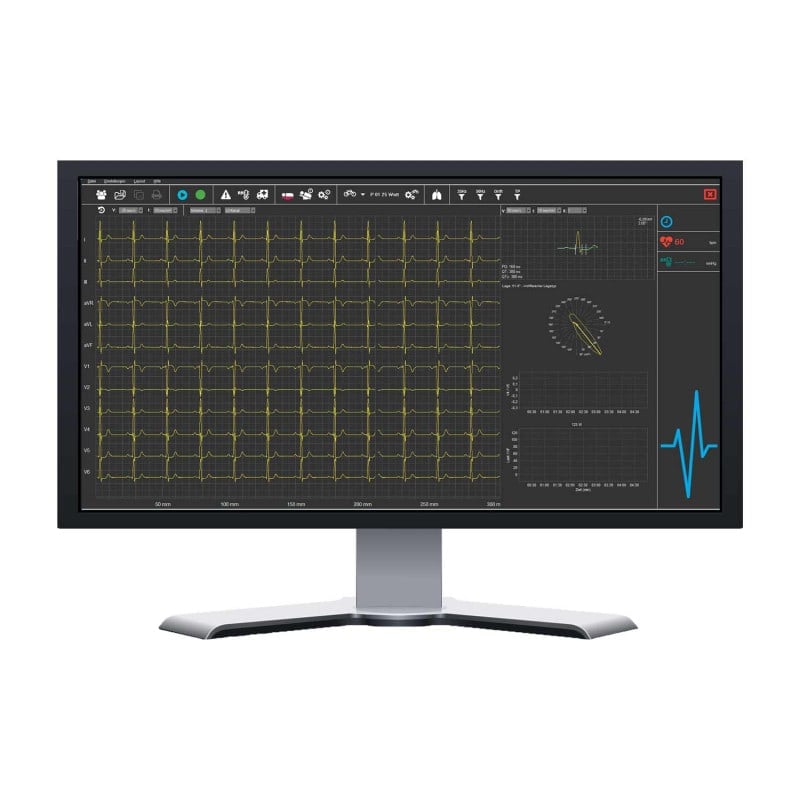

Resting ECG software
SmartSoft Software (USB stick)

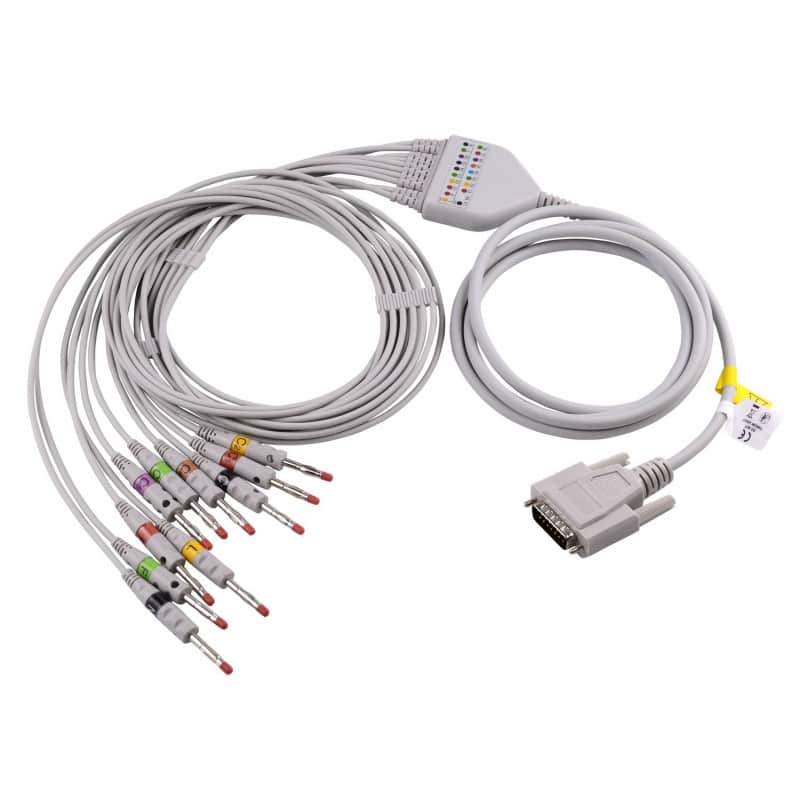

10-wire patient cable

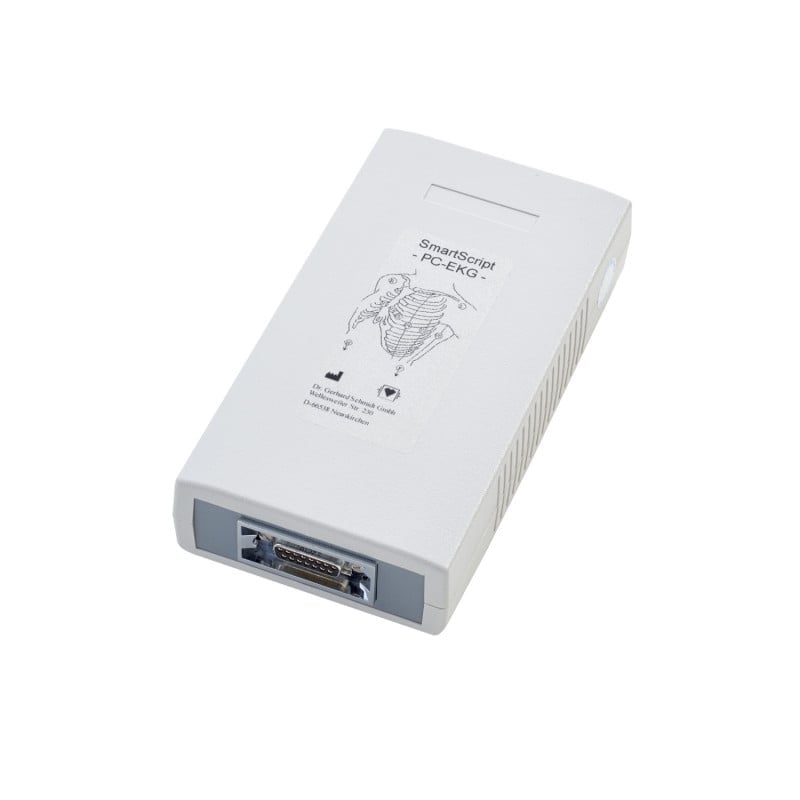

SmartScript ECG module
Connection cable SmartScript ECG module
Operating instructions
SmartSoft Software
ECG interpretation software
10-wire patient cable
ECG fleece electrodes (30 pieces)
ECG measurement option

SmartScript ECG module
Connection cable SmartScript ECG module
Operating instructions
10-wire patient cable

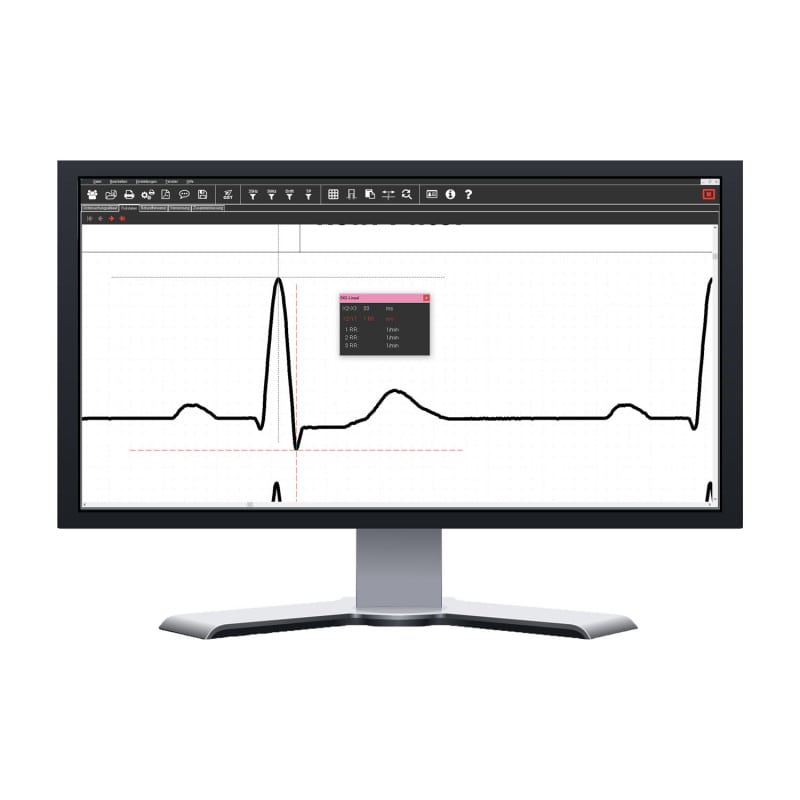

ECG measurement + ECG ruler
ECG interpretation software
ECG fleece electrodes (30 pieces)
Network licence large (5 workstations)
Practice EDP interface large GDT/BDT


Technical Details

  • Recording speed: 5, 10, 25, 50 mm/s
  • 12 leads simultaneously
  • Sensitivity: 5, 10, 20 mm/mV
  • Filter: 35 Hz, low-pass filter, anti-drift
  • Pacemaker-proof
  • Sampling rate: 600 Hz
  • Resolution: 12 bit
  • Input impedance: > 20 MOhm
  • Common mode rejection: > 105 dB
  • Classification: IIa
  • Power consumption: < 2 Watt (BSC: 0.5 Watt)
  • Dimensions (USB): 188 x 98 x 45 mm (L x W x H)
  • Dimensions (Bluetooth): 162 x 85 x 31 mm (L x W x H)
  • Weight: approx. 350 g
  • Power supply: via PC (USB); via battery (Bluetooth)

Hardware Recommendations

  • Processor > 2 GHz
  • Working memory > 512 MB
  • Hard disk > 40 GB
  • Monitor > 19
  • Operating system: Windows 7/8/8.1/10 (32 or 64 bit)

Available Extension Options

Extension Option Function
Rhythm ECG Software Recording of up to 99 minutes
Vectorcardiography Software Representation of the P, QRS and T loops in the frontal plane during recording and reporting
ECG interpretation at rest incl. measurement ECG measurement incl. ECG ruler, additional automatic evaluation of the ECG signals with indication of findings
