smokeSTAR

• Surgical smoke evacuation
• Efficient 4-fold filter with a lifetime of 35 h
• Protects against toxic compounds
• Minimises unpleasant odours
• Particularly quiet operation

smokeSTAR

The compact and lightweight smokeSTAR smoke evacuation system is a state-of-the-art device that is used to remove surgical smoke from the operating room during surgical procedures improving the safety of both patients and staff. It is equipped with a 4-fold filter system and filters out large particles, liquids, smoke gases and odours. With a filter lifetime of 35 hours, the smokeSTAR is a highly cost efficient solution. In addition, it operates with remarkable efficiency and produces minimal noise.

The smoke extraction system can be combined with all units used for high-frequency, radiofrequency, and laser surgeries. By effectively removing surgical smoke and odours from the operating room, the smokeSTAR helps to maintain a clear view of the surgical field throughout the procedure. Extraction is automatic via trigger cable, foot pedal or remote control. Thanks to the tube or pen holder on the handpiece, any gases that occur during surgery can be extracted directly at the surgical site.

Product Details

• smokeSTAR from Meyer-Haake
• Professional smoke extraction

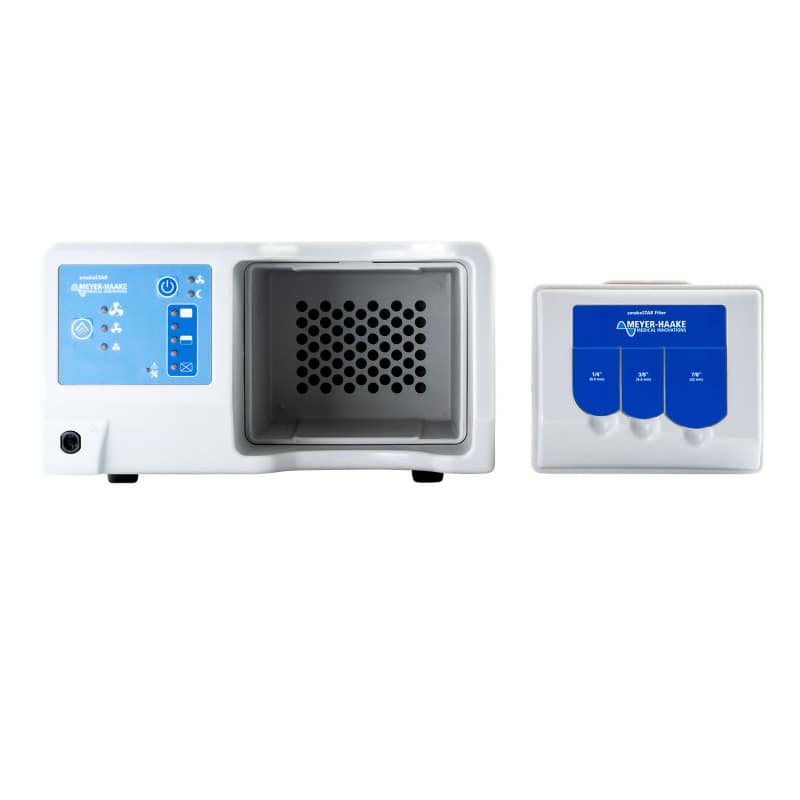

• 4-fold filter captures large particles, liquids, fumes and odours
• Filters even particles of 0.1-0.2 µm at an efficiency of 99.999 %
• Particularly economical thanks to long filter life of 35 hours
• Quiet and efficient operation enables concentrated work
• Reduces odour nuisance in operating rooms
• Provides reliable protection against toxic substances
• Suitable for all high-frequency, radiofrequency, and laser surgery units
• Automatic suction via trigger cable, foot pedal or remote control
• Can be placed on equipment trolleys thanks to its compact design

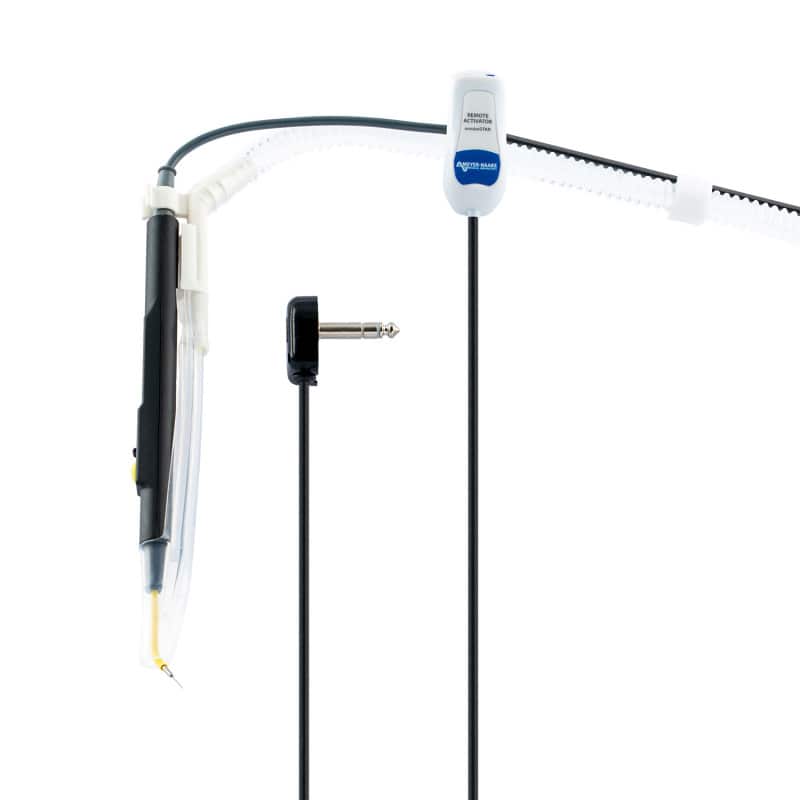

• Direct suction via tube or pen holder on the handpiece
• Does not impair the view of the operating field
• 1 unit smokeSTAR without any accessories

Specifications

• Suction capacity: max. 708 l/min
• Voltage: 220-240 VAC / 100-120 VAC
• Dimensions: 152 x 279 x 394 mm (H x W x D)
• Weight: 4.4 kg (without filter); 5.5 kg (with filter)
• Sound pressure level: <55 dB (A)
• Device class according to MPG: I
