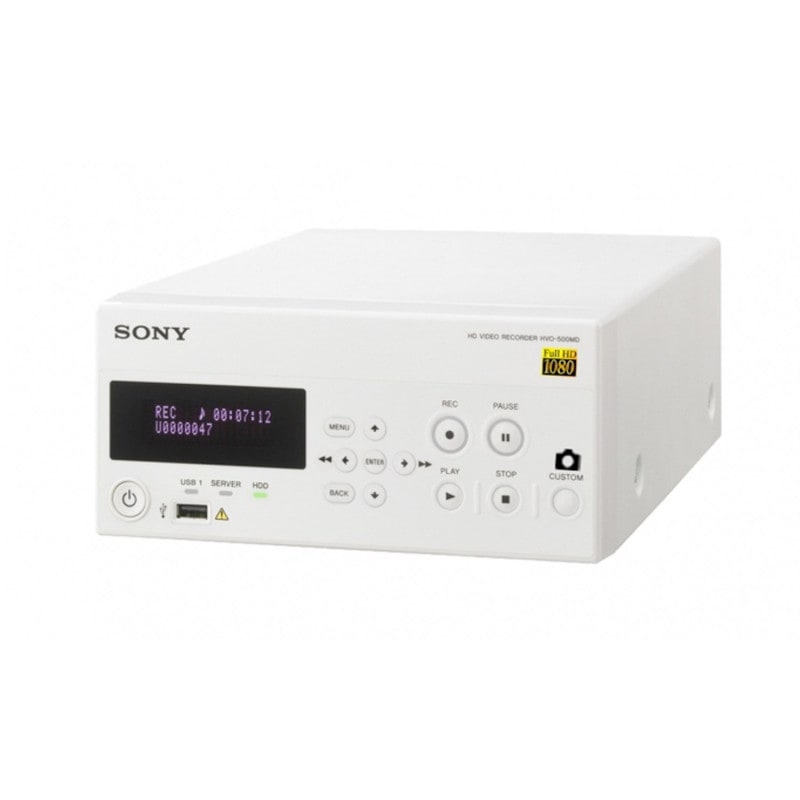

SONY HVO-500MD Full-HD Medical Recorder
SONY HVO-500MD Full-HD Medical Recorder
Couldn't load pickup availability
- High-resolution, HD videos
- For diagnostic/surgical imaging systems
- Extensive interface selection
- Easy to use
- Complies with medical standards
SONY HVO-500MD Full-HD Medical Recorder
The Sony HVO-500MD HD recorder allows simultaneous recording of HD video to the internal hard drive as well as to external USB and NAS media. These recordings are ideal as teaching and training tools, but are also stored as patient records and needed for referrals to other doctors. The HVO-500MD network digital recorder is used in a variety of clinical environments such as hospitals, operating rooms and medical practices.
Due to the long recording time, you can easily record lengthy surgeries. Since the recorder features an extensive number of interfaces, it can be connected in a versatile way to many modern, but also older devices. The "Pre-record" function ensures that no important moments are missed. If the function is active, recording starts five seconds before the recording impulse is triggered.
Product Details
- Sony HVO-500MD Full-HD medical recorder
- Full HD video recording
- Simultaneous recording on internal hard disk and external media
- Long recording time even in HD
- Large number of interfaces
- "Pre-record" function
- Easy operation
- Meets medical safety standards
Technical Details
|
Recording Features |
|
| Video Format of the Recording |
MPEG4 AVC/H.264 |
| Audio Format of the Recording |
AC-3/AAC LC |
| Recording File Format |
AVCHD/MP4 |
| Recording Media |
Internal hard disk (500 GB), external USB mass storage, network (CIFS) |
| Resolution |
1.920 x 1.080/50 i, 1.920 x 59.94 i, 1.280 x 720/59.94 p 1.280 x 720/50 p, 720 x 480/59,94 i, 720 x 576/50 i |
| Recording Bit Frequency (HD) | 14 Mbit/s (best), 8 Mbit/s (high), 4 Mbit/s (standard) |
|

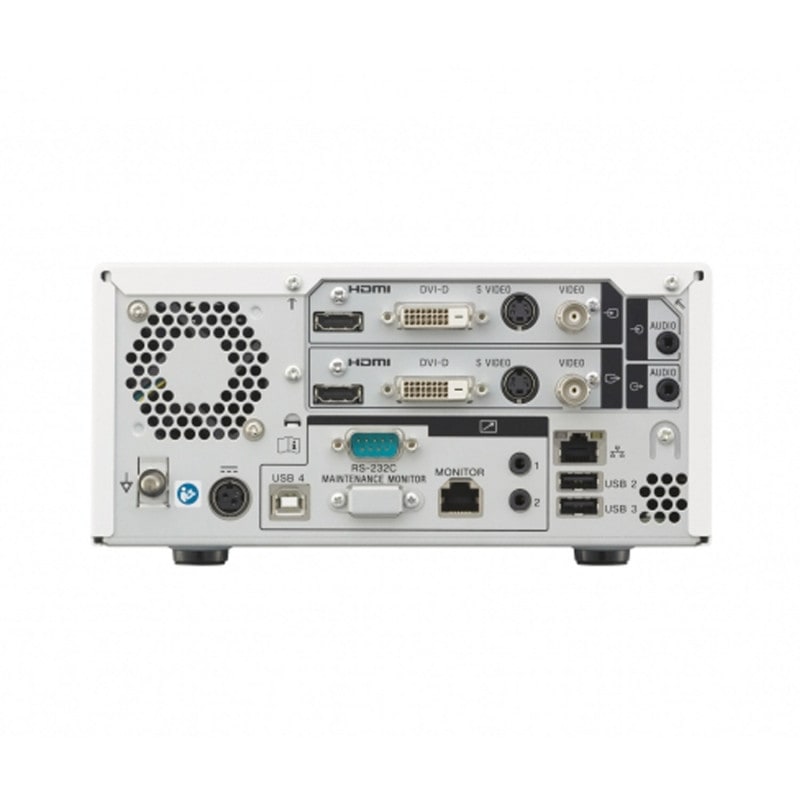

Connections |
|
| Input |
HDMI (type A)(1), DVI-D (DVI, 19-pole)(1), S-VIDEO (Mini-DIN, 4-pole)(1), VIDEO (BNC)(1) AUDIO (stereo jack socket)(1) DC-IN (DIN, 3-pole) |
| Output |
HDMI ( type A)(1), DVI-D (DVI, 19-pole)(1), S-VIDEO (Mini-DIN,
4-pole)(1), VIDEO (BNC)(1) AUDIO (stereo jack socket)(1) |
| Other Interfaces |
USB port (type A)(3), USB (type B)(1), network (RJ-45, 1000 Base-T/100 Base-TX)(1) REMOTE RS-232C (D-Sub 9-pole)(1), REMOTE contact switch (stereo jack socket)(2), REMOTE MONITOR (RJ-45)(1), equipotential |
| General Information | |
| Operating Voltage |
+12 V to +24 V DC (supply via power supply unit) |
| Input Current |
3.2 A to 1.6 A |
| Operating Temperature |
5 °C to 40 °C |
| Operating Humidity | 20 % to 80 % (max. wet bulb temperature: 30 °C) (non-condensing) |
| Operating Air Pressure | 700 to 1060 hPa |
| Weight | 2.9 kg |
| Dimensions | 212.0 x 287.7 x 105.5 mm |
