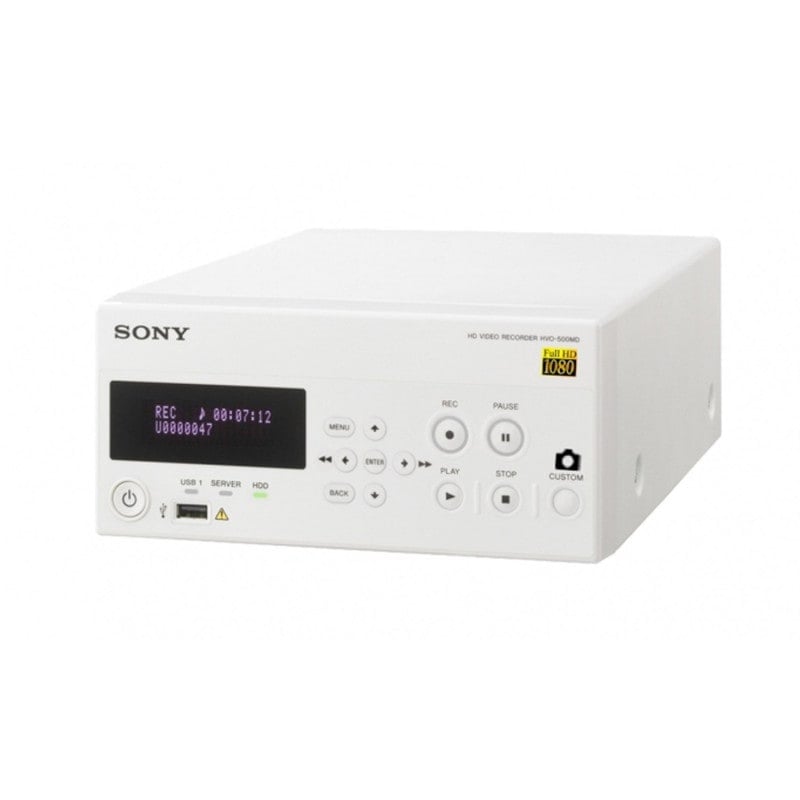

SONY HVO-500MD Full HD Medical Recorder (Surgical)
SONY HVO-500MD Full HD Medical Recorder (Surgical)
Couldn't load pickup availability
- Full HD video recording
- Specially designed for surgical procedures
- With freeze function
- Conforms to medical safety regulations
- Simultaneous recording on internal hard disk and external medium
SONY HVO-500MD Full HD Medical Recorder (Surgical)
The HVO-500MD medical recorder is suitable for storing full HD video from laparoscopic and endoscopic cameras as well as other image recording systems such as ultrasound equipment. It has a variety of connections, which is why it can be used in a versatile way with modern and older devices.
Especially for use during surgical procedures, the Full HD recorder features the ability to record and play back colour photos. Simultaneous recording on the internal hard drive and an external storage medium such as a USB drive or network server eliminates the need to export after recording and minimizes the risk of accidental data loss.
Due to the high capacity of the internal hard disk, particularly long video recordings are possible without interruption, even with Full HD picture quality. The maximum duration of a single recording is 24 hours.
Product Details
- Sony HVO-500MD Full HD medical recorder (Surgical)
- Full HD video recording
- Simultaneous recording on internal hard disk and external media such as USB drive or NAS media
- Long recording time even at the highest image quality setting
- Variety of network transmission and interfaces
- Optimized for surgical use
- User-friendly menu selection
- With freeze-frame function in colour (also possible with optional foot switch)
- Export of videos in high quality or as MP4 possible
- Meets medical safety standards
Technical Details
|
Recording Features |
|
| Video Format of the Recording |
MPEG4 AVC/H.264 |
| Audio Format of the Recording |
AAC LC |
| Recording File Format |
MP4 |
| Recording Media |
Internal hard disk (500 GB), external USB mass storage, network (CIFS) |
| Resolution |
1.920 x 1.080/59.94 i, 1.280 × 720/59.94 p, 1.280 × 720/50 p, 720 × 480/59.94 i, 720 × 576/50 i |
| Recording Bit Frequency (HD) | 20 Mbit/s (best), 12.5 Mbit/s (high), 6 Mbit/s (standard) |
|

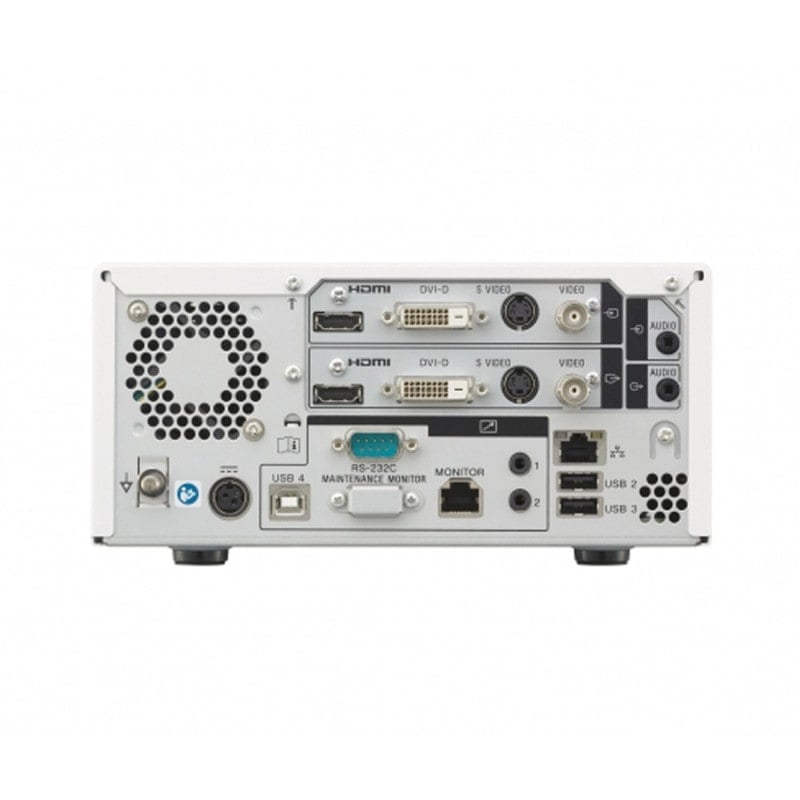

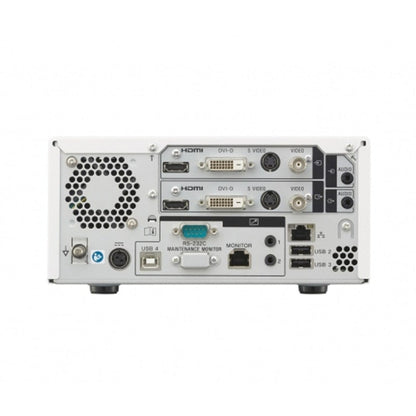

Connections |
|
| Input |
S-VIDEO (mini DIN, 4-pole)(1), VIDEO (BNC)(1) AUDIO (stereo jack socket)(1) DC-IN (DIN, 3-pole) |
| Output |
HDMI ( type A)(1), DVI-D (DVI, 19-pole)(1), S-VIDEO (Mini-DIN, 4-pole)(1), VIDEO (BNC)(1) AUDIO (stereo jack)(1) |
| Other Interfaces |
USB connection (type A)(3), USB (type B)(1), Network (RJ-45, 1000 Base-T/100 Base-TX)(1) REMOTE RS-232C (D-Sub 9-pole)(1), REMOTE contact switch (stereo jack socket)(2), REMOTE MONITOR (RJ-45)(1), equipotential |
| General Information | |
| Operating Voltage |
+12 V to +24 V DC (supply via power supply unit) |
| Input Current |
3.2 A to 1.6 A |
| Operating Temperature |
5 °C to 40 °C |
| Operating Humidity | 20 % to 80 % (max. wet bulb temperature: 30 °C) (non-condensing) |
| Operating Air Pressure | 700 to 1060 hPa |
| Weight | 2.9 kg |
| Dimensions | 212.0 x 287.7 x 105.5 mm |
