SONY HVO-500MD HD Medical Recorder

SONY HVO-500MD HD Medical Recorder

£3,607.88
£0.00 £3,607.88
Sale Sold out
Product overview
  • HD video recording
  • Simultaneous recording on internal hard disk and external media
  • Large selection of interfaces
  • Long recording time
  • Compliance with medical safety standards

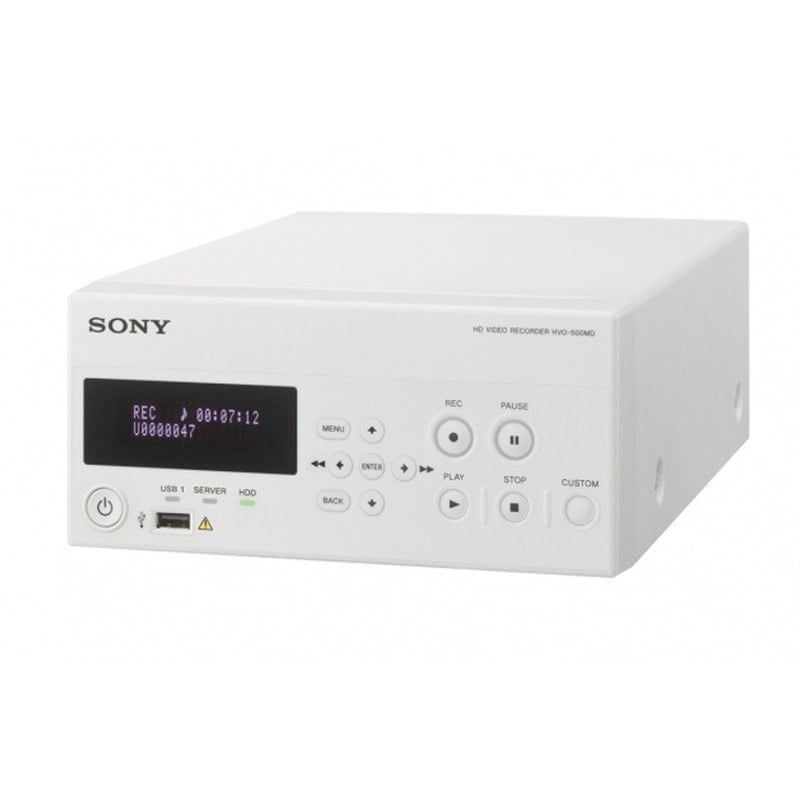

SONY HVO-500MD HD Medical Recorder

With the HVO-500MD video recorder from Sony, you can store video from diagnostic and surgical imaging systems such as ultrasound machines, digital X-ray systems, and endoscopic and laparoscopic cameras. Simultaneous HD video recording on internal and external media, as well as on network systems, eliminates the need to export videos to another device after recording. In addition, this function minimizes the risk of data loss.


With a wide range of interfaces, the Sony video recorder is compatible with many systems, making it versatile. Due to the long recording time, recordings with a duration of 60 - 194 hours can be made in high-resolution quality. A single recording is limited to a duration of 24 hours. After recording, videos can be exported in AVCHD or MP4 formats.


Product Details

  • SONY HVO-500MD HD medical recorder
  • High-definition video recording
  • Pre-record function
  • For connection to diagnostic and surgical image recording systems
  • Connection option for a wide range of current and older devices
  • Backup to internal hard disk as well as to external USB drive or network server
  • Secure high-resolution recording with long recording time
  • Compliance with medical safety standards

Technical Details

Recording Features
Video Format of the Recording
 MPEG4 AVC/H.264
Audio Format of the Recording
 AC-3/AAC LC
Recording File Format
 AVCHD/MP4
Recording Media
 Internal hard disk (500 GB), external USB mass storage, network (CIFS)
Resolution
 1.280 × 720/59.94 p, 1.280 x 720/50 p, 720 × 480/59.94 i, 720 x 576/50 i
Recording Bit Frequency (HD) 14 Mbit/s (best), 8 Mbit/s (high), 4 Mbit/s (standard)

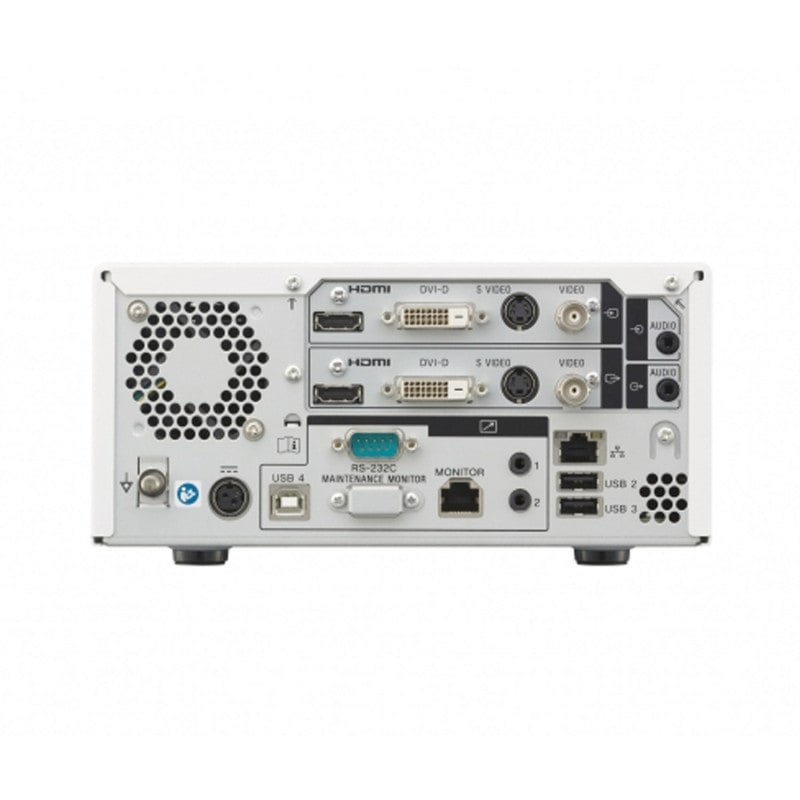

Connections
Input
 HDMI (Type A)(1), DVI-D (DVI, 19-pole)(1), S-VIDEO (Mini-DIN, 4-pole)(1), VIDEO (BNC)(1)
AUDIO (stereo jack)(1)
DC-IN (DIN, 3-pole)
Output
 HDMI ( Type A)(1), DVI-D (DVI, 19-pole)(1), S-VIDEO (Mini-DIN, 4-pole)(1), VIDEO (BNC)(1)AUDIO (stereo jack)(1)
Other Interfaces
 USB connection (type A)(3), USB (type B)(1), Network (RJ-45, 1000 Base-T/100 Base-TX)(1) REMOTE RS-232C (D-Sub 9-pin)(1), REMOTE contact switch (stereo jack)(2), REMOTE MONITOR (RJ-45)(1), equipotential
General Information
Operating Voltage
 +12 V to +24 V DC (supply via power supply unit)
Input Current
 3.5 A to 1.8 A
Operating Temperature
 5 °C to 40 °C
Operating Humidity 20 % to 80 % (max. wet bulb temperature: 30 °C) (non-condensing)
Operating Air Pressure 700 to 1060 hPa
Weight 2.9 kg
Dimensions 21.0 x 287.7 x 105.5 mm
