Sony LMD-2435MD 24IN Full HD 2D LCD Medical Monitor

Sony LMD-2435MD 24IN Full HD 2D LCD Medical Monitor

£3,493.09
£0.00 £3,493.09
Sale Sold out
Product overview
  • Simple and intuitive operation
  • Clear and high resolution Full HD images 24"
  • Ergonomic design with comfortable grip
  • Easy to connect
  • Complies with medical regulations

Sony LMD-2435MD 24IN Full HD 2D LCD Medical Monitor

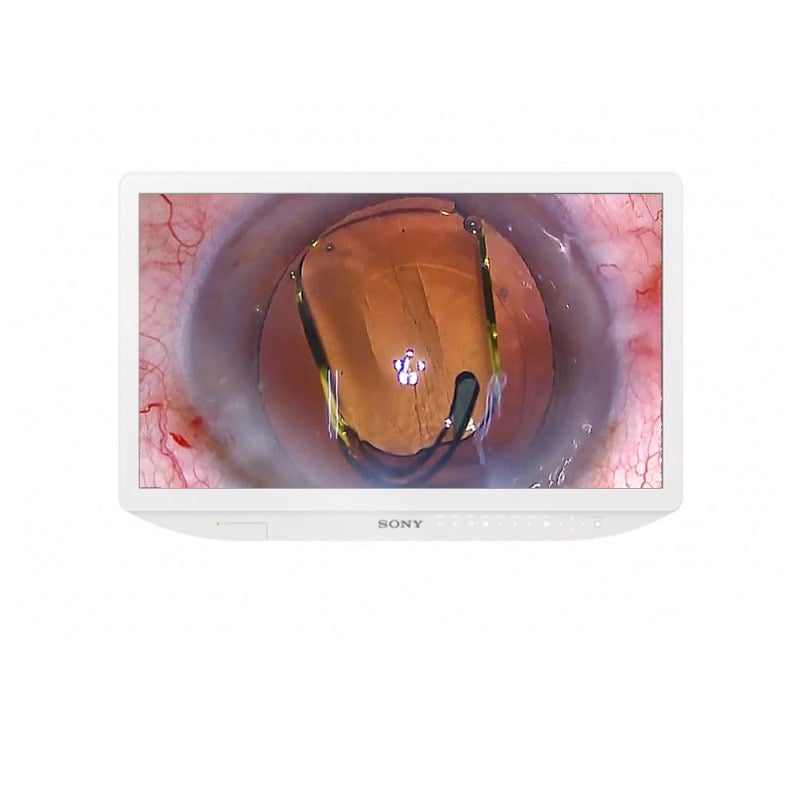

This LCD monitor is ideal for displaying clear and high resolution Full HD images in operating theatres, surgical centres, clinics and consulting rooms. The 24" LMD-2435MD shows you 2D video and still images from medical imaging systems, such as endoscopes and laparoscopic cameras.


The monitor is designed to be integrated in modern environments, e.g. operating rooms. It can be mounted either on the ceiling or on a medical trolley. Analog and digital interfaces simplify connection with a wide range of HD and Standard Definition imaging sources.

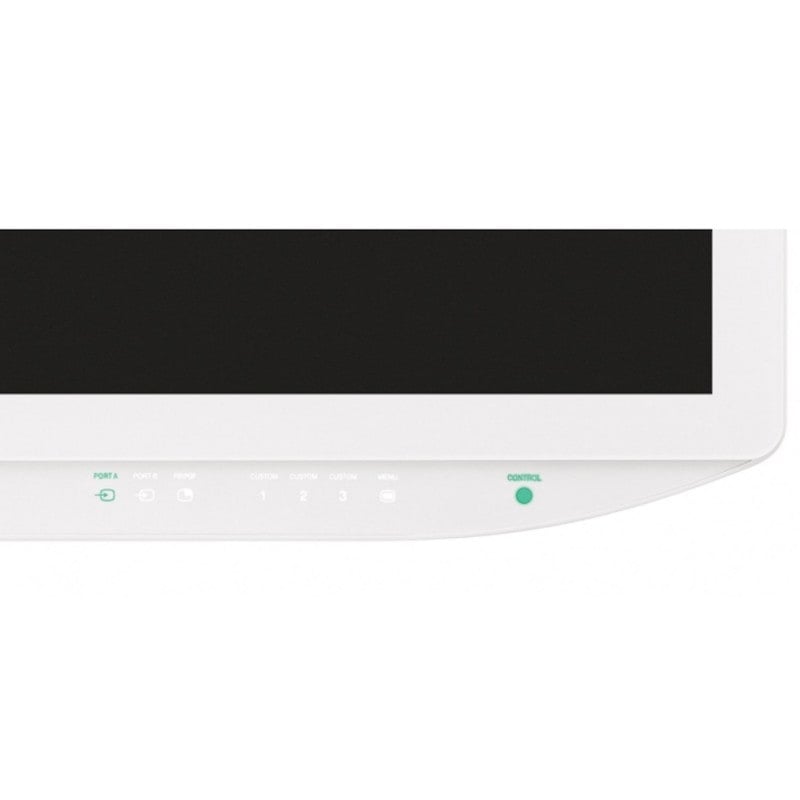

Operation is simplified by the monitor's intuitive, easy to use control panel. Coloured LED backlighting highlights active control buttons, guiding the user and reducing the risk of inadvertent operation, especially in dark environments.


Product Details

  • LMD-2435MD Medical Monitor 24" Full HD 2D LCD from Sony
  • High resolution Full HD images
  • 24" screen
  • Simple & user-friendly operation
  • Various digital and analogue signal inputs
  • With input labelling function
  • Energy-saving mode
  • With operation lock
  • Ergonomic design and comfortable grip
  • Narrow frame and larger screen
  • Easy cleaning thanks to seamless design
  • Custom settings
  • Flexible AC power options
  • Monitor can be easily connected to equipment
  • Complies with medical regulations (e.g. IEC 60601-1)
  • Dimensions: 572 x 376 x 78 mm

Technical Data

Picture Performance
Panel a-Si TFT Active Matrix LCD
Picture Size (Diagonal) 604.7 mm
Effective Picture Size (H x V) 527.0 x 296.5 mm
Pixel pitch  0.2745 x 0.2745 mm
Resolution (H x V) 1920 x 1080 pixels (Full HD)
Aspect 19:9
Pixel Efficiency 0.9999
Backlight LED
Panel Technology LCD with IPS
Luminance (Panel Specification)
 300 cd/m2 (typical)
Contrast Ratio
 1.000: 1
Colours Approx.16.7 million colours
Viewing Angle (Panel Specification) 89°/89°/89°/89° (typical) (up/down/left/right contrast > 10:1)
Gamma 1.8, 2.0, 2.2, 2.4, 2.6, DICOM

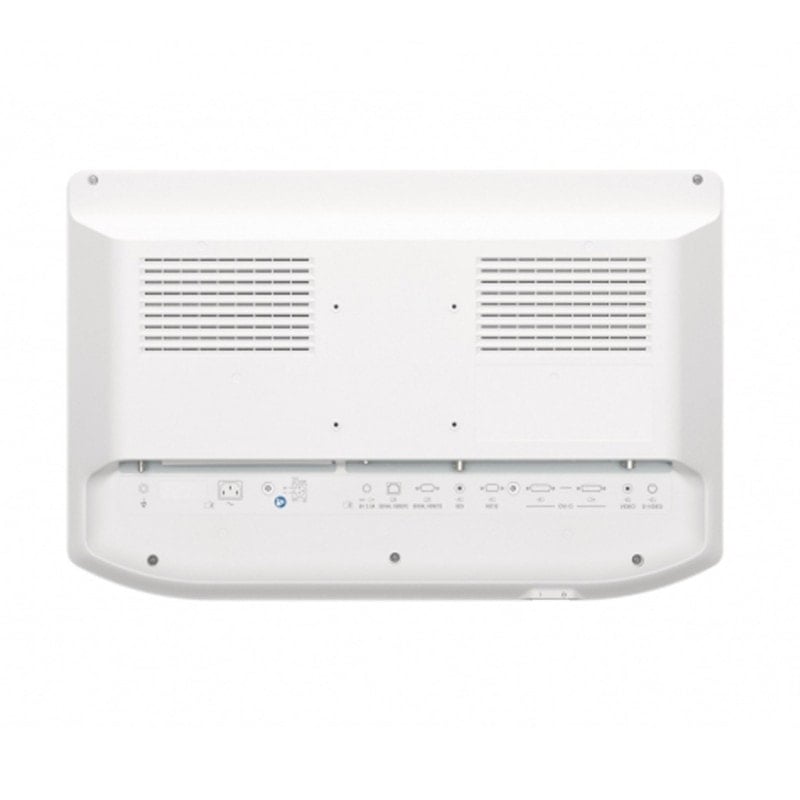

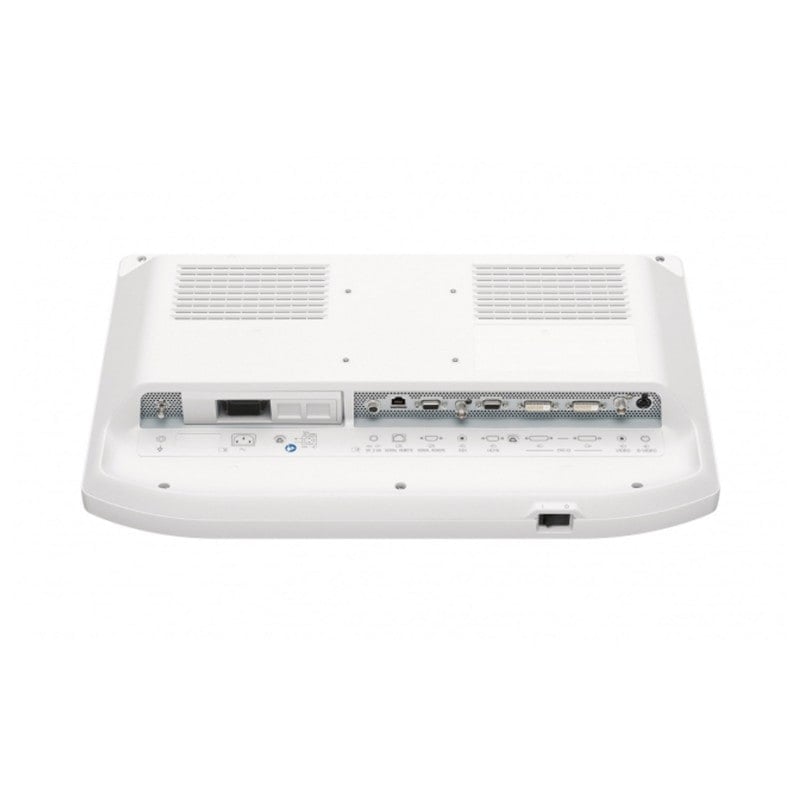

Input
Composite Input BNC (1x)
Y/C Input Mini-DIN 4-pin (x1)
Y: 1.0 Vp-p (75 Ω)
C: 0.286 Vp-p (75 Ω, NTSC burst)
0.3 Vp-p (75 Ω, PAL burst)
RGB, Component Input RGB: Via HD-15 connector (D-sub 15-pin)*
0.7 Vp-p (75 Ω) (when Sync On Green, 0.3 Vp-p sync)
* Needs SMF-405 sold separately

Component: Via HD-15 connector (D-sub 15-pin)*
Y: 1.0 Vp-p (75 Ω) (including 0.3 Vp-p sync)
Pb: 0.7 Vp-p (75 Ω), Pr: 0.7 Vp-p (75 Ω)
* Needs SMF-405 sold separately
DVI-D Input DVI-D (1x)
TMDS single link
SDI Input BNC (1x)
HD/SD-SDI
HD15 Input D-sub 15-pin (x1)
RGB: 0.7 Vp-p (75 Ω)
H/V Sync: Total level (polarity free)
Plug & Play function : corresponds to DDC2B
External Sync Input Via HD-15 connector
(D-sub 15-pin) *
* Needs SMF-405 sold separately
0.3 Vp-p to 4.0 Vp-p (75 Ω)
Serial Remote (LAN) D-sub 9-pin (RS-232C) (x1), RJ-45 (x1) (Ethernet, 10BASE-T/100BASE-TX)
DC Input XLR-type 3-pin (male) (x1), 24 V DC (output impedance 0.05 ohms or less)
Output
DVI-D Output DVI D (1x)
DC 5 V Output (x1), up to 2.0 A
General Information
Power Requirements 100-240V, 50-60Hz, 0.6 - 0.3 A
- DC Input: 24 V, 2.2A (Supplied from AC adaptor)
AC adaptor (Sony, AC-120 MD): *Optional
- AC Input: 100 V - 240 V, 50/60 Hz, 0.6 - 0.3 A
- DC Output: 24 V 2.2 A
Power Consumption Approx. 57 W (max.)
Operating Temperature 0 °C to 35 °C
Operating Humidity 30-85 % (no condensation)

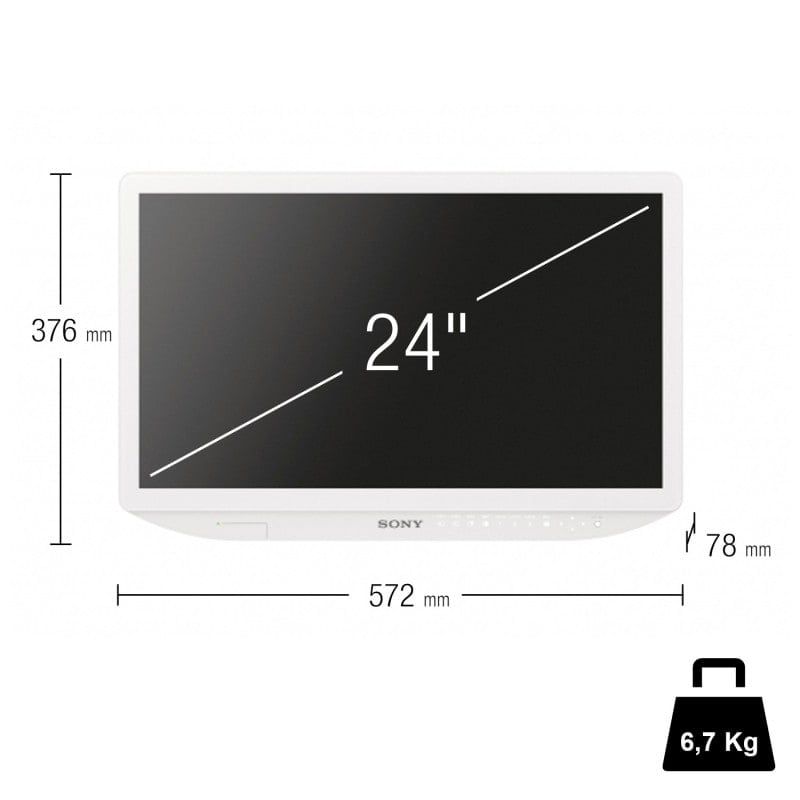

Dimensions (W x H x D) *1 572 x 376 x 78 mm

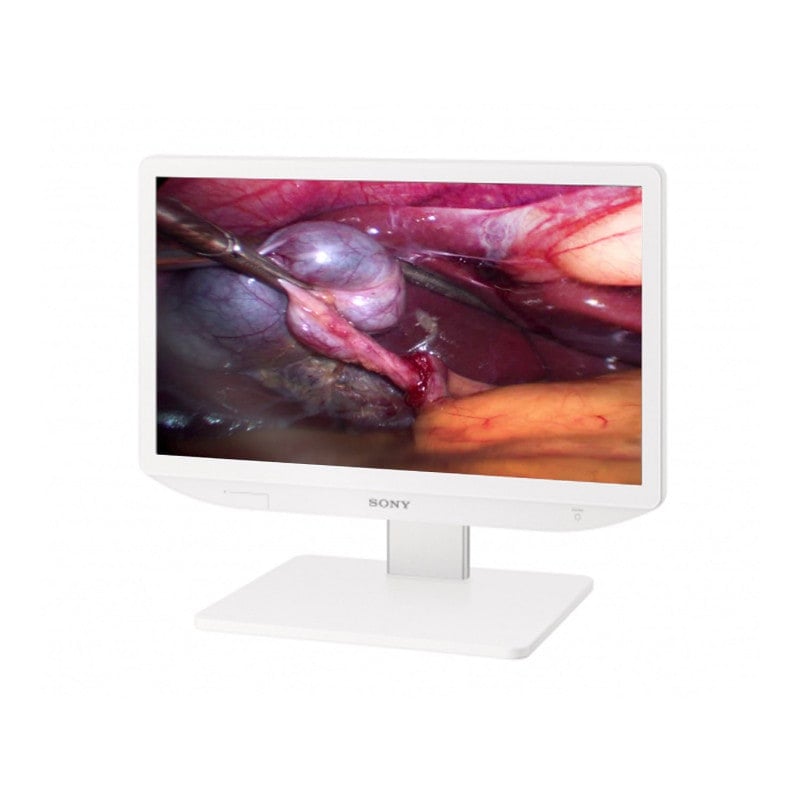

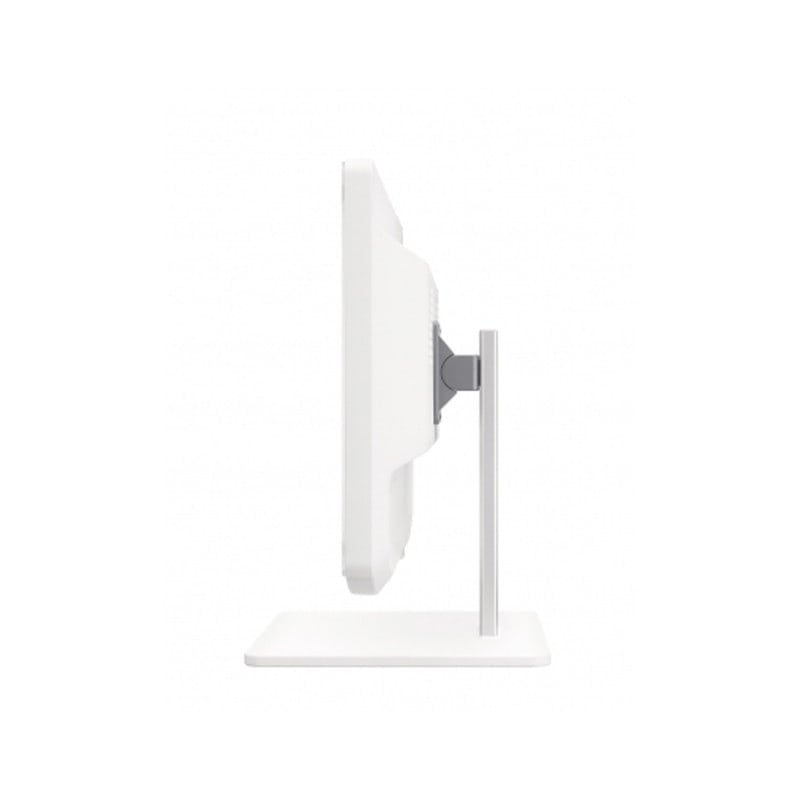

572 x 481 x 319 mm (with SU-600MD optional stand)
Weight Approx. 6.7 kg
Supplied Accessories AC plug holder (2)
Instructions for first-time use (1x)
CD-ROM (1x)
List of service contacts (1x)

*1 The values for dimensions are approximate.
