Sony LMD-2735MD 27IN Full HD 2D LCD Medical Monitor
Sony LMD-2735MD 27IN Full HD 2D LCD Medical Monitor
Couldn't load pickup availability
- LCD monitor with high-resolution Full HD images
- Flexible touch operation, intuitive user interface
- Many analogue and digital interfaces
- Resistant to moisture and water
- Simple cabling and easy connection
Sony LMD-2735MD 27IN Full HD 2D LCD Medical Monitor

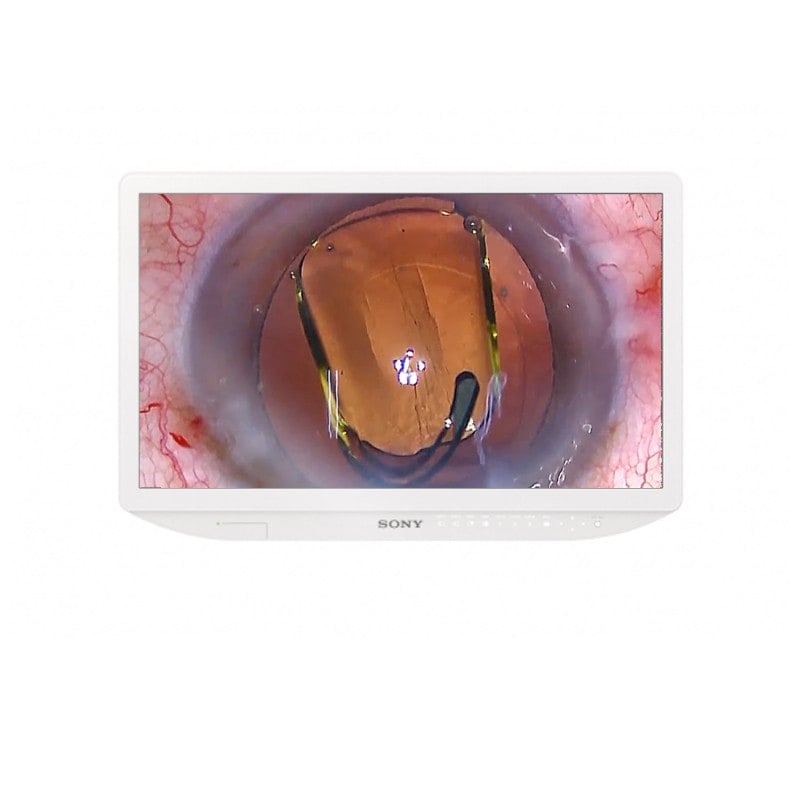

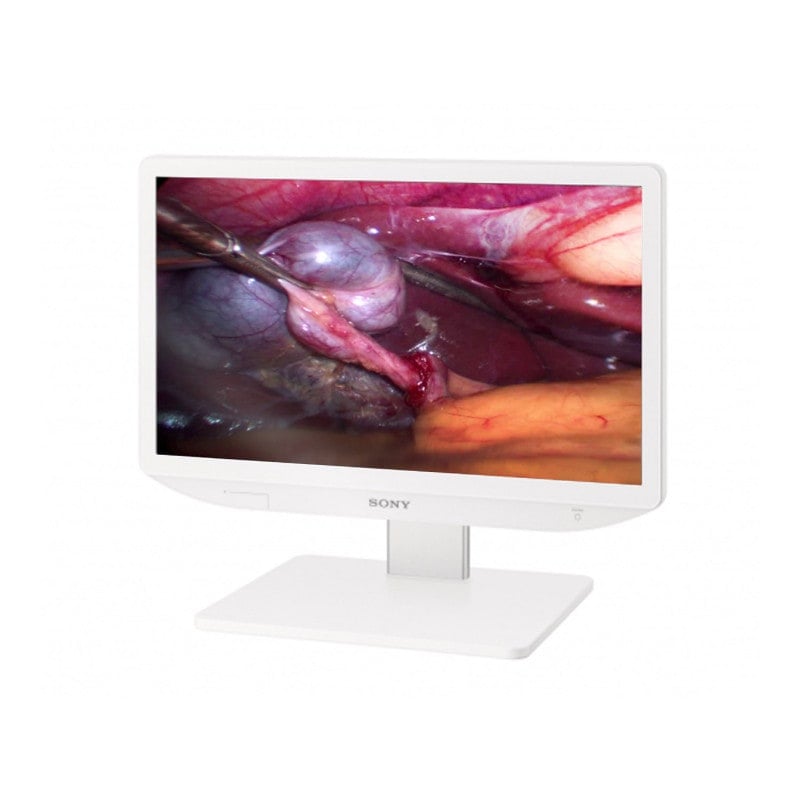

This LCD monitor is ideal for displaying clear and high resolution Full HD images in operating theatres, surgical centers, clinics and consulting rooms. The 27" LMD-2435MD monitor displays video and still images in 2D from surgical endoscopes, laparoscopic cameras and other compatible medical imaging systems.

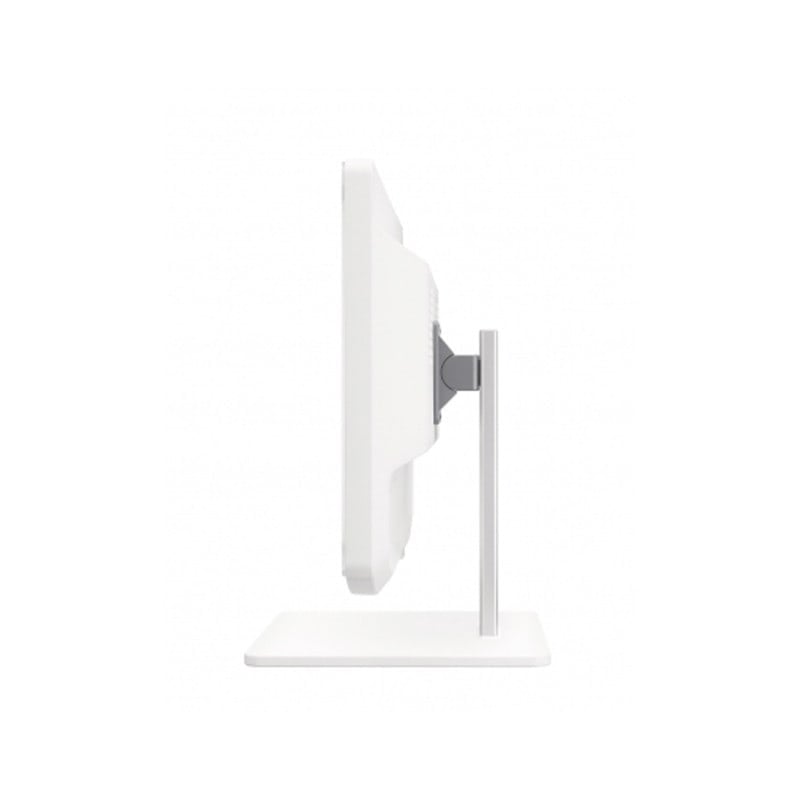

The ergonomic and slim design allows for easy adjustment of the monitor position and the smaller frame maximizes the screen size. The seamless design and water and moisture resistance make the monitor easy to clean and disinfect.

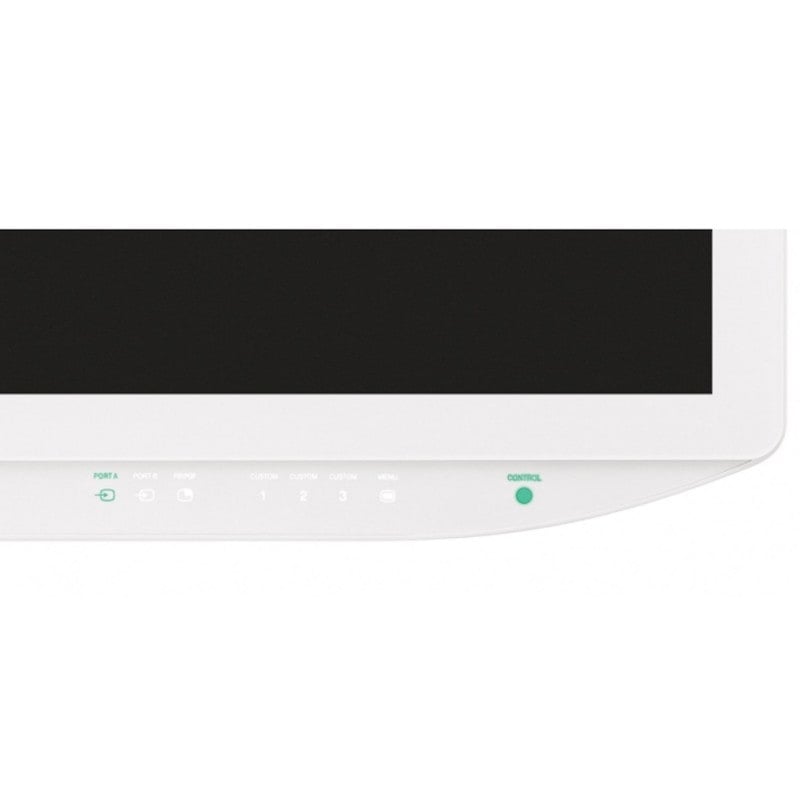

Coloured LED backlighting highlights active control buttons, guiding the user and reducing the risk of inadvertent operation, especially in dark environments. To prevent unintentional operation of control buttons and menu functions, the medical monitor has a control lock. Three custom buttons allow you to store and quickly recall image settings. This saves time and makes everyday work easier.
Product Details
- Sony LMD-2735MD Medical Monitor 27" Full HD 2D LCD
- High resolution Full HD images
- 27" screen
- Simple & user-friendly operation - ergonomic design
- Digital and analogue signal inputs for easy connection
- With power save mode and operation lock
- With numerous digital and analogue signal inputs
- Narrow bezel makes screen even larger
- Seamless design - easy cleaning
- User-defined settings possible
- Fulfils medical regulations such as IEC 60601-1
- Dimensions: 660 x 427 x 78 mm
Technical Data
|
Picture Performance |
|
| Panel | a-Si TFT Active Matrix LCD |
| Picture Size (Diagonal) |
686 mm |
| Effective Picture Size (H x V) |
597.9 x 336.3 mm |
| Pixel pitch |
0.3114 x 0.3114 mm |
| Resolution (H x V) |
1920 x 1080 pixels (Full HD) |
| Aspect |
16:9 |
| Pixel Efficiency |
0.9999 |
| Backlight |
LED |
| Panel Technology |
LCD with IPS |
| Luminance (Panel Specification) |
300 cd/m2 (typical) |
| Contrast Ratio |
1.000: 1 |
| Colours | Approx. 16.7 million colours |
| Viewing Angle (Panel Specification) |
89°/89°/89°/89° (typical) (up/down/left/right contrast > 10:1) |
| Gamma | 1.8, 2.0, 2.2, 2.4, 2.6, DICOM |
|

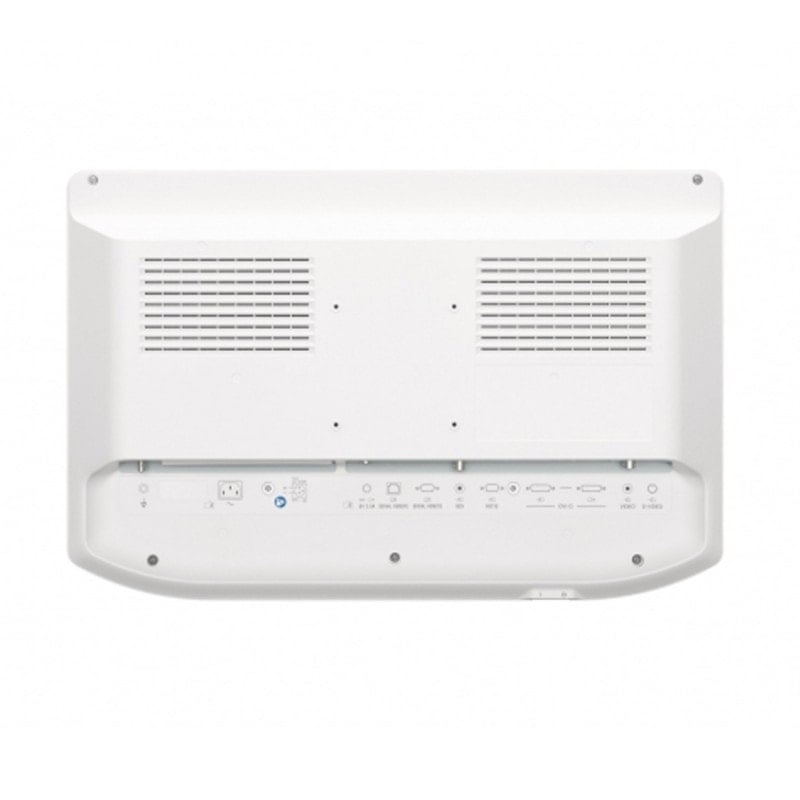

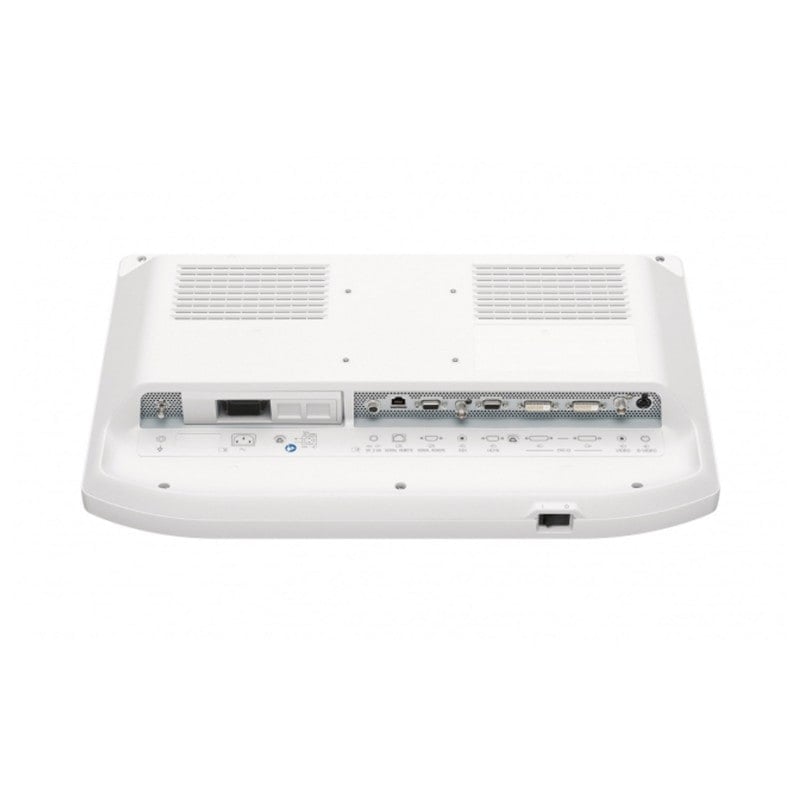

Input |
|
| Composite Input |
BNC (1x) |
| Y/C Input |
Mini-DIN 4-pin (x1) Y: 1.0 Vs-s (75 Ω) C: 0.286 Vs-s (75 Ω, NTSC burst) 0.3 Vs-s (75 Ω, PAL burst) |
| RGB, Component Input |
RGB: Via HD-15 connector (D-sub 15-pin)* 0.7 Vp-p (75 Ω) (when Sync On Green, 0.3 Vp-p sync) * Needs SMF-405 sold separately Component: Via HD-15 connector (D-sub 15-pin)* Y: 1.0 Vp-p (75 Ω) (including 0.3 Vp-p sync) Pb: 0.7 Vp-p (75 Ω), Pr: 0.7 Vp-p (75 Ω) * Needs SMF-405 sold separately |
| DVI-D Input |
DVI-D (1x) TMDS single link |
| SDI Input |
BNC (1x) HD/SD-SDI |
| HD15 Input |
D-sub 15-pin (x1) RGB: 0.7 Vp-p (75 Ω) H/V Sync: Total level (polarity free) Plug & Play function : corresponds to DDC2B |
| External Sync Input |
Via HD-15 connector (D-sub 15-pin) * * Needs SMF-405 sold separately 0.3 Vp-p to 4.0 Vp-p (75 Ω) |
| Serial Remote (LAN) |
D-sub 9-pin (RS-232C) (x1), RJ-45 (x1) (Ethernet, 10BASE-T/100BASE-TX) |
| DC Input |
XLR-type 3-pin (male) (x1), 24 V DC (output impedance 0.05 ohms or less) |
|
Output |
|
| DVI-D Output |
DVI-D (1x) |
| DC 5 V Output |
(x1), up to 2.0 A |
|
General Information |
|
| Power Requirements |
100-240 V, 50-60 Hz, 0.6 - 0.3A - DC Input: 24 V, 2.2 A (Supplied from AC adaptor) AC adaptor (Sony, AC-120MD): *Optional - AC Input: 100 V - 240 V, 50/60 Hz, 0.6 - 0.3 A - DC Output: 24 V 2.2 A |
| Power Consumption |
Approx. 57 W (max.) |
| Operating Temperature |
0 °C to 35 °C |
| Operating Humidity |
30-85 % (no condensation) |
| Dimensions (W x H x D) *1 |
660 x 427 x 78 mm (with SU-600MD optional stand) |
| Weight | Approx. 8.7 kg |
| Supplied Accessories |
AC plug holder (2) Instructions for first-time use (1x) CD-ROM (1x) List of service contacts (1x) |
*1 The values for dimensions are approximate.
