SONY LMD-X2700MD 27IN 4K 2D LCD Medical Monitor

SONY LMD-X2700MD 27IN 4K 2D LCD Medical Monitor

£6,018.61
£0.00 £6,018.61
Sale Sold out
Product overview
  • High-resolution and clear images with 4K picture quality
  • Intuitive operation and flexible installation
  • With upscaling function to enhance lower resolution images
  • Wide colour gamut according to BT.2020 colour standard
  • Complies with medical regulations

SONY LMD-X2700MD 27IN 4K 2D LCD Medical Monitor

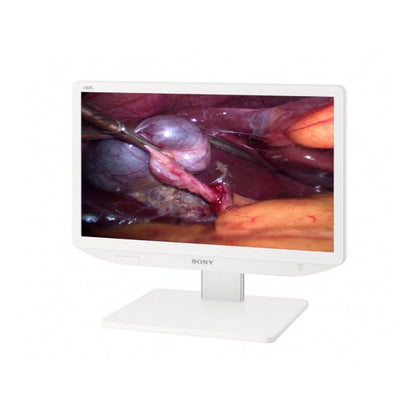

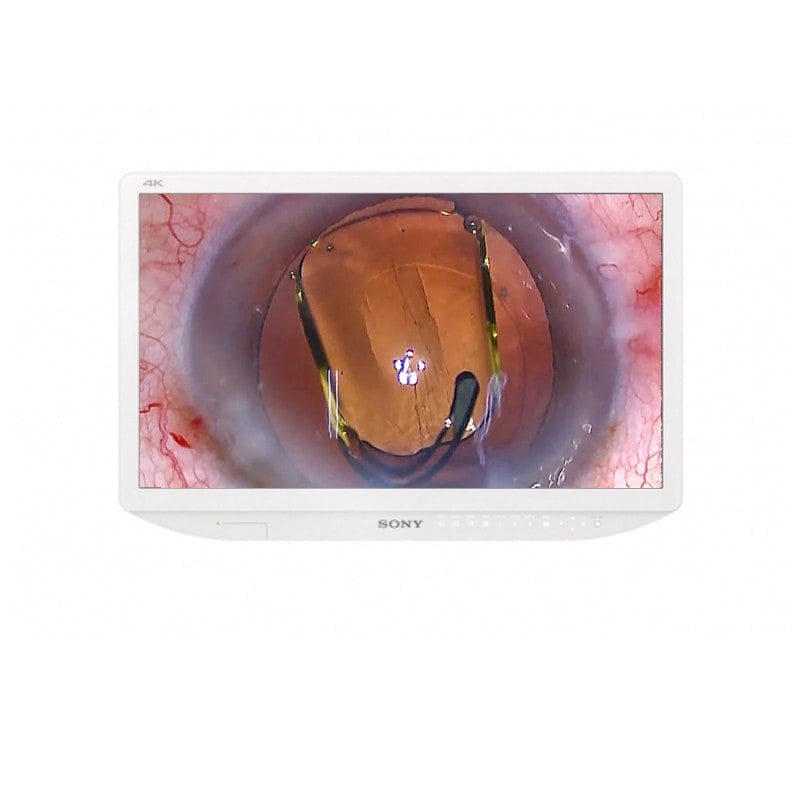

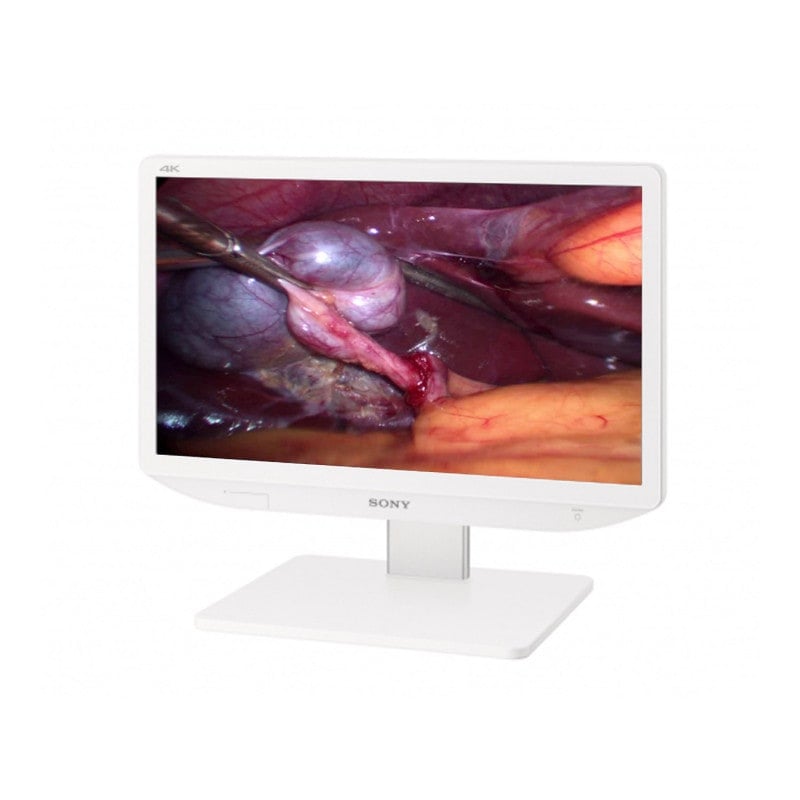

The LMD-X2700MD is a medical monitor designed for use in operating theatres, surgical centres, clinics and doctors' surgeries. Suitable for use in minimally invasive surgical procedures, it displays bright, high-quality 2D color images with true 4K resolution from endoscopic/laparoscopic cameras and other compatible medical imaging systems.


The 4K picture quality is enhanced further by HDR gamma support and a wide colour gamut for a clearer view of fine details and subtle tonal differences. Even lower quality footage is converted into 4K images due to Sony's upscaling technology. This gives you excellent visibility in the operating room.


The 27" medical monitor has an intuitive control panel with LED navigation which allows easy operation, even in dark environments. Additionally, the device features three custom buttoms which can be assigned to frequently used functions for quick selection. The sleek, compact and ergonomic design of the monitor make the SONY LMD-X2700MD easy to clean and disinfect.


Product Details

  • SONY LMD-X2700MD 27"-4K-2D-LCD  Medical Monitor
  • 4K image quality
  • Bright, extra high quality images
  • 4K upscaling - lower resolution input signals are upscaled to 4K
  • Monitor complies with BT.2020 colour standard
  • HDR gamma support with HLG
  • Slim, compact and ergonomic design allows for easy cleaning
  • Intuitive control panel with LED navigation
  • Three custom buttons for assigning frequently used settings and functions
  • Variety of signal inputs and automatic input selection
  • Various display modes
  • Direct power supply or external power supply
  • Complies with medical regulations e.g. IEC 60601-1

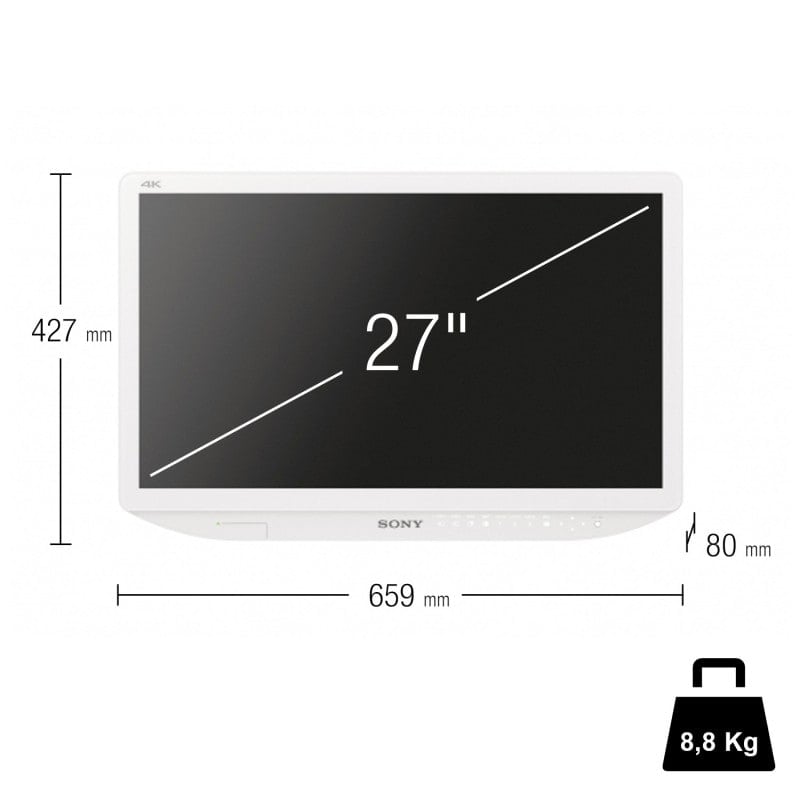

  • Dimensions: 658.8 x 426.8 x 80 mm

Technical Data

Picture Performance
Panel
 a-Si TFT Active Matrix LCD
Picture Size (Diagonal)
 684 mm (26.93") x 684 mm (26.93")
Effective Picture Size (H x V)
 59.,2 x 335.3 x 684.0 mm (B x H x T)
Pixel pitch
 0.15525 x 0.15525 mm
Resolution (H x V)
 H 3840 dots, V 2160 lines
Aspect
 16:9
Pixel Efficiency
 99.99 %
Backlight
 LED
Luminance (Panel Specification)
 800 cd/m2 (typical)
Contrast Ratio
 1.000 : 1
Colours Approx.1.07 billion colours
Viewing Angle (Panel Specification)
 89°/89°/89°/89° (typical) (up/down/left/right contrast > 10:1)
Gamma 1.8, 2.0, 2.2, 2.4, 2.6, DICOM, HLG
Input
HDMI Input HDMI connector (x1) HDMI 2.0 b, HDCP1.4 correspondence
DVI-D-Eingang DVI-D connector (x1) TMDS single link
Display-Port Display Port connector (x2) 1.2, SST, HDCP1.3 correspondence
Serial Remote (LAN) D-sub 9-pin (RS-232C) (x1) RJ-45 modular connector (ETHERNET) (x1)
Remote Stereo mini jack (x1)
AC Input AC input connector (x1) 100 V to 240 V, 50/60 Hz
DC Input DC input connector (x1) DC 26 V
Output
DVI-D Output DVI-D connector (x1)
Display Port Output Display Port connector (x1)
DC 5 V Output 5 V Output (x1) up to 2 A
DC 12 V Output 12 V Output (x1) up to 2.5 A
General
Power Requirements AC IN: 100 V to 240 V, 50/60 Hz, 1.5 A to 0.7 A
DC IN: 26 V, 5.2 A (supplied from AC adaptor)
Power Consumption Approx. 149 W (max.)
Operating Temperature 0 °C to 35 °C
32 °F to 95 °F
Operating Humidity 0 % to 85 % (no condensation)
Dimensions (W x H x D) * 658.8 x 426.8 x 80 mm
26 x 20 1/8 x 12 5/8 in (with SU-600 optional stand)
Weight Approx. 8.8 kg (when the optional stand is not installed)
Supplied Accessories AC plug holder (x2)
Instructions for first-time use (1x)
CD-ROM (including instructions for use)(1x)
List of service contacts (1x)

* The values for dimensions are approximate.
