SONY LMD-X310MD

SONY LMD-X310MD

£16,120.70
£0.00 £16,120.70
Sale Sold out
Product overview
  • Medical 31" monitor for 2D 4K colour video images
  • Wide colour spectrum for true-to-life colour reproduction
  • With anti-reflective technology
  • Features Advanced Image Multiple Enhacer technology
  • Complies with medical regulation IEC 60601-1

SONY LMD-X310MD

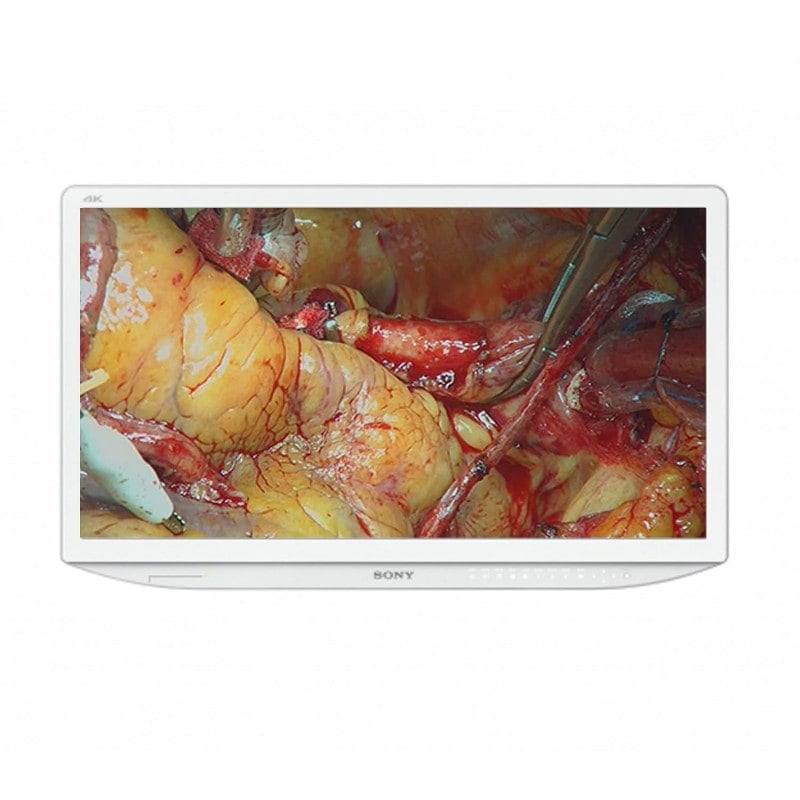

The SONY LMD-X310MD is a 31" medical monitor for 2D colour video images in 4k Ultra HD resolution is compatible with medical imaging systems such as surgical endoscopes and laparoscopic camera systems. Thanks to its extensive colour spectrum, the monitor guarantees true-to-life colour reproduction. Regardless of viewing angle and lighting conditions, it offers optimal contrast and visibility due to innovative anti-reflective technology.


In addition, the medical monitor features innovative Advanced Image Multiple Enhancer™ technology, which increases the visibility of the displayed structures and colours. The user-friendly backlit control panel makes it easy to control the screen and set the different display formats. The smooth surface also makes it safe to clean and disinfect. The downward-facing signal connectors enable clear and simple installation in the operating theatre.


Product Details

  • SONY LMD-X310MD
  • 31" medical monitor for 2D colour video images in 4K Ultra HD resolution
  • Offers an extensive colour spectrum and true-to-life colour reproduction
  • With anti-reflective technology
  • Optimum contrast and good visibility
  • Features the Advanced Image Multiple Enhancer
  • Variety of display formats such as Rotation Image, Side-by-Side, Picture-in-Picture, etc.
  • User-friendly control panel with backlight
  • Slim and compact design
  • Easy disinfection and cleaning thanks to the smooth surface

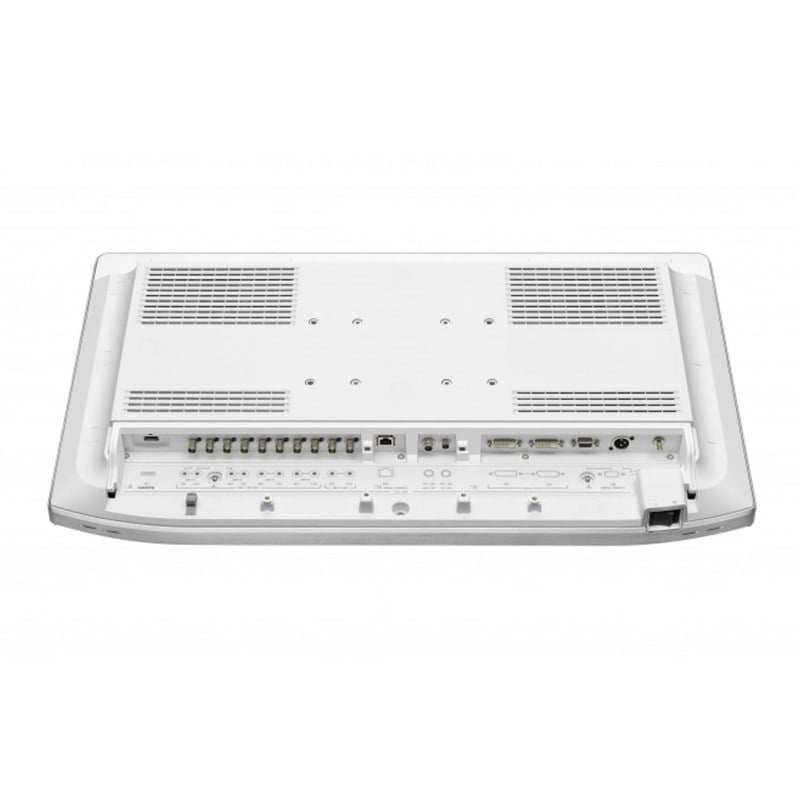

  • Easy installation in the operating theatre thanks to the downward-facing signal connectors
  • Complies with medical regulation IEC 60601-1

Advanced Image Multiple Enhancer™ Technology

Structure Enhacement Colour Enhacement
Improves contour detection so that structures can be displayed more clearly and sharply. Allows tonal differences to be adjusted for better visibility.

Technical Details

Image output
Panel a-Si TFT Active Matrix LCD
Picture size (diagonal) 789.06 mm (31 1/8 inch)
Effective picture size (H x V) 698.0 x 368.1 mm (27 1/2 x 14 1/2 inch)
Pixel pitch 0.1704 x 0.1704 mm
Resolution (H x V) 4096 x 2160 pixels
Aspect ratio 17:9
Pixel efficiency 0.9999
Backlight LED
Panel technology LCD with IPS
Luminance 770 cd/m2 (typical)
Contrast ratio 1450:1
Colours approx. 1.073 billion
Viewing angle 89°/89°/89°/89° (standard)
Gamma 1.8, 2.0, 2.2, 2.4, 2.6, DICOM, Highlight
HDMI input HDMI (1x) (HDCP 1.4 support)
DVI-D input DVI-D (1x) (HDCP 1.4 support)
TMDS (direct connection)
SDI input BNC (1x)
3G-/HD-/SD-SDI
Serial remote control (LAN) D-Sub, 9-pin (RS-232C) (1 x) RJ-45 (1 x) (Ethernet, 10BASE-T/100BASE-TX)
DC input XLR connector, 3-pin (male) (1 x), 26 V DC (output impedance max. 0.005 Ohm)
DVI-D output DVI-D (1x) with HDCP deactivated
SDI output BNC (5x)
Output: 5 to 12 V DC 5 V output (1x), 8 W
12 V output (1x) max. 20 W
General
Operating voltage LCD monitor
-DC input: 26 V, 609 A
Power supply unit (AC-300MD): 245 x 150 x 58 mm (W x D x H)
Power input: 100 V - 240 V, 50/60 Hz, 2.0 - 0.8 A
Power consumption LCD monitor: approx. 180 W
Operating temperature 0 - 40 °C (recommended: 20 - 30 °C)
Humidity during operation 30 - 85 % ( no condensation)
Temperature (storage/transport) -20 to +60 °C
Humidity (storage/transport) 0 to 90 %
Pressure (operation/storage/transport) 700 to 1060 hPa
Dimensions (W x H x D) approx. 753.8 x 456.4 x 69.3 mm (smallest depth 28 mm)
Weight approx. 11.8 kg
Mounting 100 x 100 mm VESA mount
100 x 200 mm VESA mount
Supplied accessories Power supply unit: AC-300 MD, power cord, user manual, quick reference guide,
holder for mains plug (2x), instructions for power supply unit, overview of service contacts,
warranty book, M4x12mm screws (4x)
