SONY LMD-X3200MD

SONY LMD-X3200MD

£8,090.41
£0.00 £8,090.41
Sale Sold out
Product overview
  • Medical 32" 4K 2D LCD monitor
  • Optimal colour reproduction & realistic visualisation
  • Slim and lightweight design
  • High contrast images independent of environment
  • Versatile signal connection options

SONY LMD-X3200MD

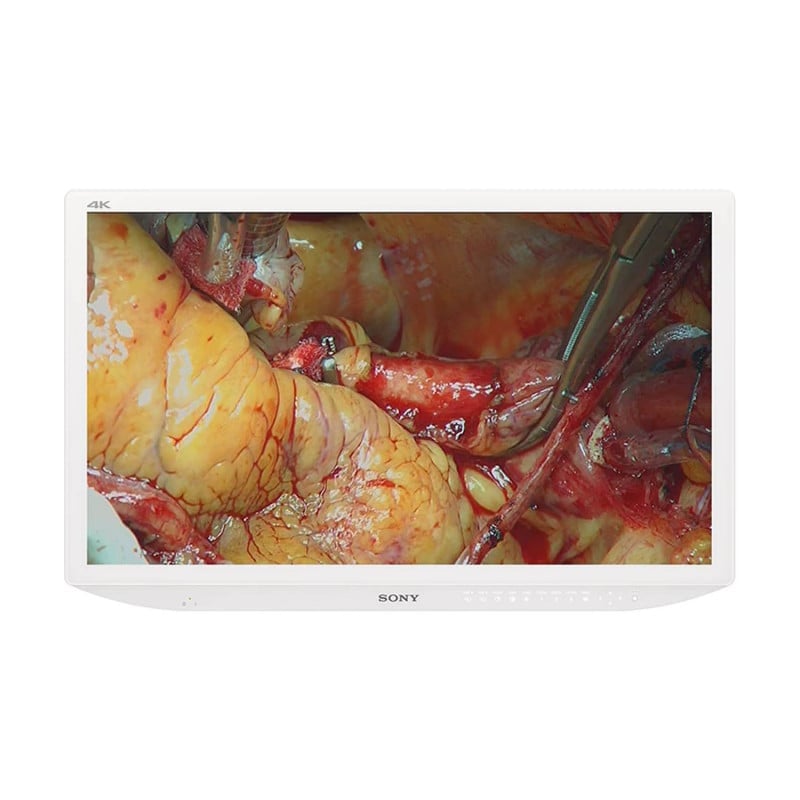

SONY LMD-X3200MD is a 32" 4K 2D medical LCD monitor that produces high-quality colour images in Ultra HD. Thanks to its anti-reflective panel, light scattering is reduced, ensuring clear and high-contrast images regardless of lighting conditions and viewing angle. In addition, the advanced LCD panel combined with the monitor's most innovative signal processing technology provides high-quality colour reproduction and realistic visualization.


SONY's monitor is equipped with an intuitive backlit control panel and features a sleek and lightweight design. The flush surface makes it easy to clean the display without the cleaning agent penetrating any gaps. If required, the medical monitor can be mounted on a swivel arm.


Product Details

  • SONY LMD-X3200MD
  • Medical 32" 4K 2D LCD monitor
  • Anti-reflective panel reduces light scattering
  • Powerful and user-friendly
  • Intuitive control panel with backlight
  • Produces high-quality 4K 2D colour images in Ultra HD
  • High-contrast images regardless of lighting conditions and viewing angle
  • Works with innovative signal processing technology
  • Conforms to ITU-R recommendation TB.2020 and IEC 60601-1
  • High-quality colour reproduction and realistic visualisation
  • With a resolution of 3840 x 2160 pixels
  • Screen aspect ratio: 16:9
  • Images can be transmitted to a secondary display in real time via the monitor output
  • Aspect ratio of POP images can be changed to 16:9
  • With the most advanced HDR technology
  • Slim and lightweight design
  • Versatile signal connection options
  • Easy to clean
  • Mountable on a swivel arm

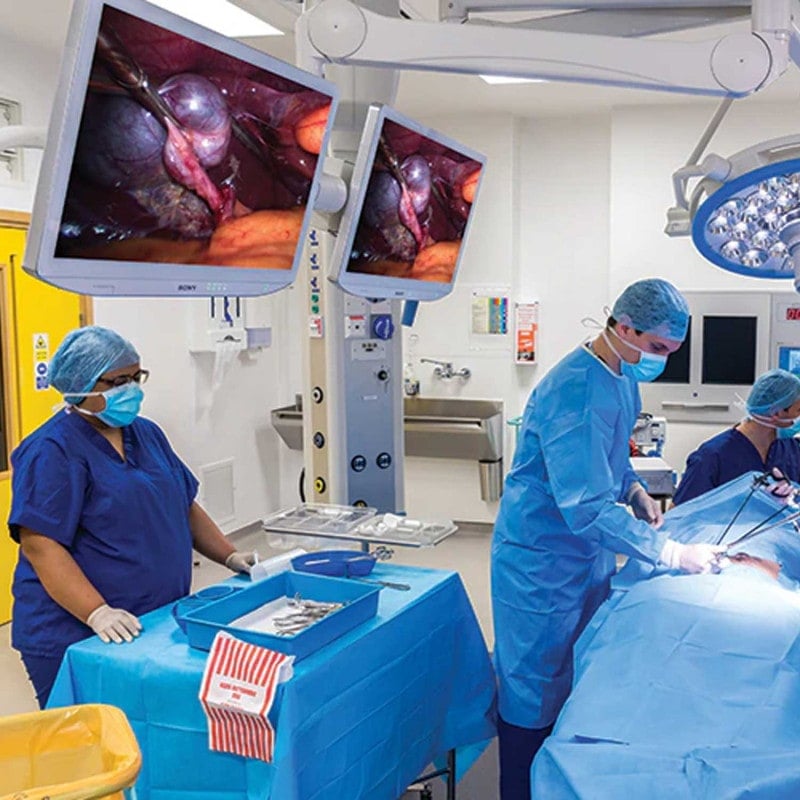

  • Perfect for use in medical areas
  • Not suitable for diagnostic purposes
  • Including 7-day repair service

Advanced Image Multiple Enhancer™ Technology

Structure Enhacement Colour Enhacement Shadow Enhacement
Improves contour detection so that structures can be displayed more clearly and sharply. Allows tonal differences to be adjusted for better visibility. Improves visibility of fine details in dark areas of the image.


Technical Details

Image Output
Panel TFT Active Matrix LCD
Picture size (diagonal) 800.757 mm (31 5/8 inch)
Effective picture size (H x V) 697.92 x 392.58 mm (27 1/2 x 15 1/2 inch)
Pixel pitch 0.182 x 0.182 mm (0.007 x 0.007 inch)
Resolution (H x V) 3840 x 2160 pixels
Aspect ratio 16:9
Pixel efficiency 99.99 %
Backlighting LED
Panel technology LCD with IPS
Luminance 500 cd/m3 (typical)
Contrast ratio 1000:1
Colours approx. 1.07 billion
Viewing angle 89°/89°/89°/89° (standard) (O/U/L/R, contrast > 10:1)
Gamma 1.8, 2.0, 2.2, 2.4, 2.6, DICOM, HLG

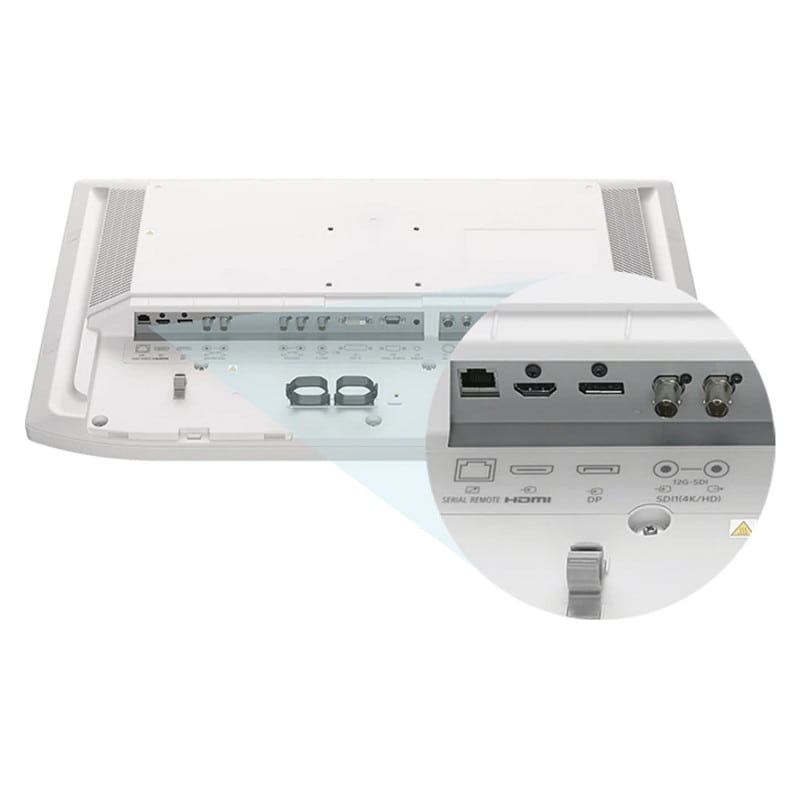

Input
HDMI input HDMI connection (1x); HDCP2.3 correspondence
DVI-D input DVI-D connection (1x); TMDS single link, HDCP1.4 correspondence
SDI input 3G-SDI input connector, BNC type (1x); 12G-SDI input connector, BNC type (1x)
Display port Display port connector (1x), SST, HDCP1.3 correspondence
Serial remote control (LAN) D-Sub, 9-pin (RS-232C) (1x), modular RJ-45 connector (Ethernet) (1x)
Remote control Stereo jack socket (1x)
AC input AC input connection (1x) 100 to 240 V, 50/60 Hz
DC input DC input connection (1x) 26 V DC
Output
SDI output 3G-SDI output connector, BNC type (1x); 12G-SDI output connector, BNC type (1x)
CLONE output CLONE output, BNC type (1x)
5 V DC output Round 3-pin socket (1x), up to 2 A
12 V DC output Round 4-pin socket (1x), up to 2.5 A
General
Operating voltage Alternating current: 100-240 V, 50/60 Hz, 1.7-0.8 A
Direct current: 26 V, 5.8 A (via power supply unit)
Power consumption Approx. 163 W (max.)
Humidity during operation 0 to 35 °C
Operating temperature 30 - 85 % (no condensation)
Temperature (storage/transport) -20 to +60 °C
Humidity (storage/transport) 20 - 90 % (no condensation)
Pressure (operation/storage/transport) 700 - 1060 hPa
Dimensions (W x H x D) approx. 753.9 x 476.3 x 79.2 mm
Weight approx. 11.8 kg
Mounting 100 x 100 mm VESA mount
Supplied accessories Power supply unit, plug holder, instructions for use, CD-ROM (incl. instructions for use), service cost list, screws for VESA mount, M4 x 12 mm
