SONY LMD-X550MD
SONY LMD-X550MD
Couldn't load pickup availability
- 55" medical LCD monitor for 2D 4K colour video images
- With an extensive colour gamut
- Anti-reflection technology ensures optimum contrast
- Features Advanced Image Multiple Enhancer technology
- Wide range of display formats
SONY LMD-X550MD

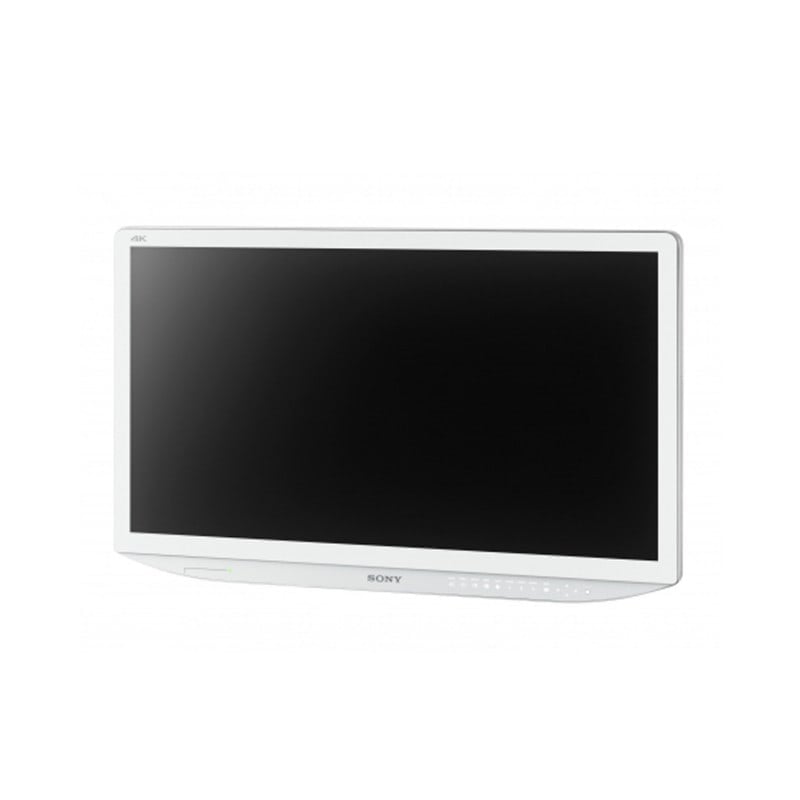

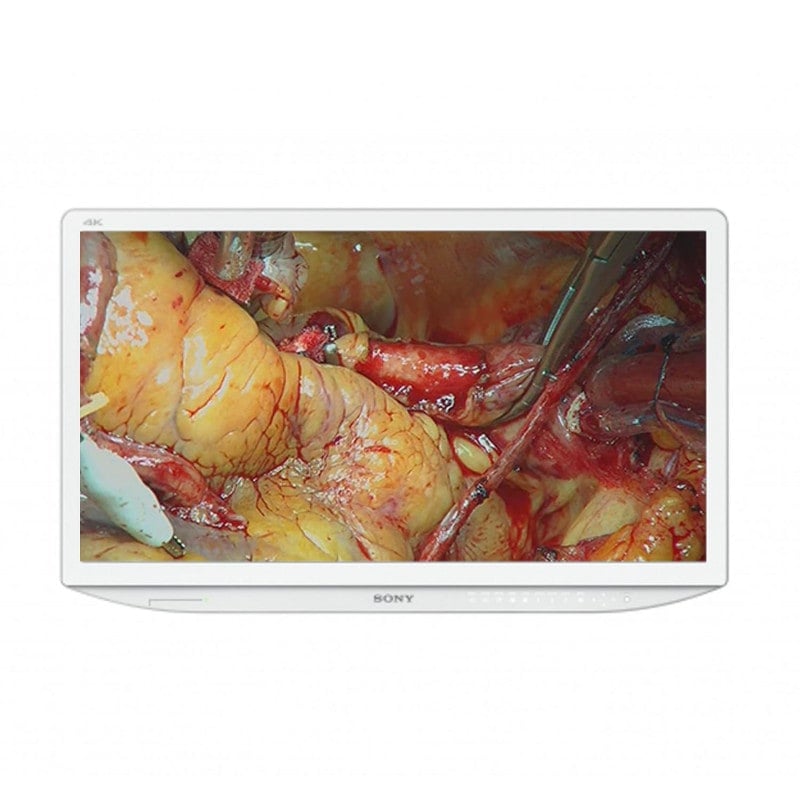

The SONY LMD-X550MD 55" medical LCD monitor delivers high-definition 2D colour video images in 4K Ultra HD resolution for medical imaging systems such as endoscopes and laparoscopic cameras. Thanks to its ergonomic and slim design, the monitor is perfect for installation in operating theatres, surgery centres, clinics and also doctors' offices. The downward-facing signal connectors favour orderly and clear integration.
SONY's screen features a variety of technologies that ensure optimal contrast, good visibility of individual structures and true-to-life colour reproduction, regardless of lighting conditions and viewing angle. The user-friendly backlit control panel allows the user to easily select from a variety of display modes such as Rotation Image, Side-by-Side, Picture-in-Picture and many more.
Product Details
- SONY LMD-X550MD
- 55" medical LCD monitor for 2D colour video images in 4K Ultra HD resolution
- Features an extensive colour spectrum for true-to-life colour reproduction
- Anti-reflection technology ensures optimal contrast and visibility
- Features Advanced Image Multiple Enhancer technology
- Wide range of display formats such as Rotation Image, Side-by-Side, Picture-in-Picture, etc.
- User-friendly control panel with backlight

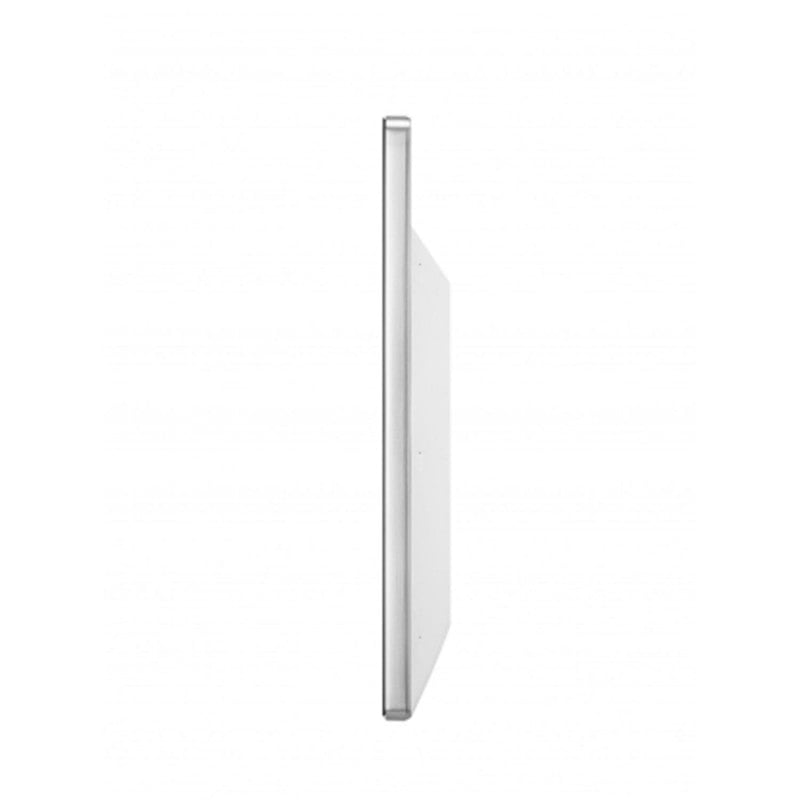

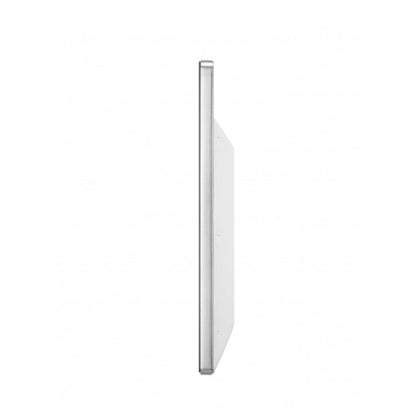

- Slim and compact design for easy installation in the operating theatre

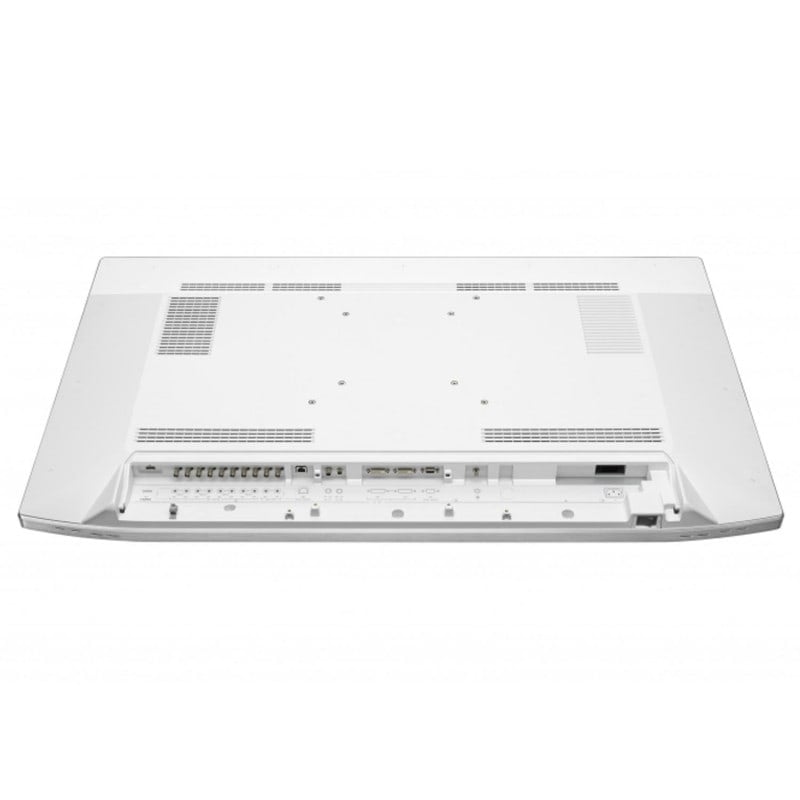

- Signal connector points downwards
- Easy disinfection and cleaning thanks to the smooth surface
- Complies with medical regulation IEC 60601-1
Advanced Image Multiple Enhancer™ Technology
| Structure Enhancement | Colour Enhacement |
| Improves contour detection so that structures can be displayed more clearly and sharply. | Allows tonal differences to be adjusted for better visibility. |
Technical Data
|
Picture Performance | |
| Panel | a-Si TFT Active Matrix LCD |
| Picture Size (Diagonal) |
1387.8 mm (54 3/4 inches) |
| Effective Picture Size (H x V) |
1209.6 x 680.4 mm (47 5/8 x 26 7/8 inches) |
| Pixel pitch |
0.315 x 0.315 mm |
| Resolution (H x V) | 3840 x 2160 pixels |
| Aspect | 16:9 |
| Pixel Efficiency |
0.9999 |
| Backlight |
LED |
| Panel Technology |
LCD with IPS |
| Luminance (Panel Specification) |
620 cd/m2 (typical) |
| Contrast Ratio |
1400:1 |
| Colours |
Approx. 1.073 billion |
| Viewing Angle (Panel Specification) |
89°/89°/89°/89° (typical) |
| Gamma | 1.8, 2.0, 2.2, 2.4, 2.6, DICOM, Highlight |
| HDMI Input | HDCP 1.4 correspondence |
| DVI-D Input | DVI-D (1x) (HDCP 1.4 correspondence) TMDS (single link) |
| SDI Input | BNC (1x) 3G-/HD-/SD-SDI |
| Serial Remote (LAN) |
D-Sub, 9-pin (RS-232C) (1 x) RJ-45 (1 x) (Ethernet, 10BASE-T/100BASE-TX) |
| DVI-D Output | DVI-D (1x) when HDCP disabling |
| SDI- Output | BNC (5x) |
| DC 5V/12V Output | 5 V-Output (1x), 8 W 12 V-Output (1x) max. 20 W |
|
General Information | |
| Power Requirements |
LCD-Monitor AC IN: 100 V - 240 V, 50/60 Hz, 3.2 - 1.3 A |
| Power Consumption |
LCD-Monitor: Approx. 290 W (max.) |
| Operating Temperature |
0 - 40 °C (recommended: 20 - 30 °C) |
| Operating Humidity |
30 - 85 % (no condensation) |
| Storage/Transport Temperature | -20 to +60 °C |
| Storage/Transport Humidity | 0 to 90 % |
| Operating/Storage/Transport Pressure | 700 to 1060 hPa |
| Dimensions (W x H x D) | Approx. 1264.6 x 771.5 x 85.5 mm (Slimmest D 33.9 mm) |
| Weight | Approx. 35.2 kg |
| Mounting | 200 x 200 mm VESA 300 x 300 mm VESA |
| Supplied Accessories |
AC power cord Instructions for use AC power plug holder(2x) Service contact list Warranty book (JP only) M4x12mm screw (4x) |
