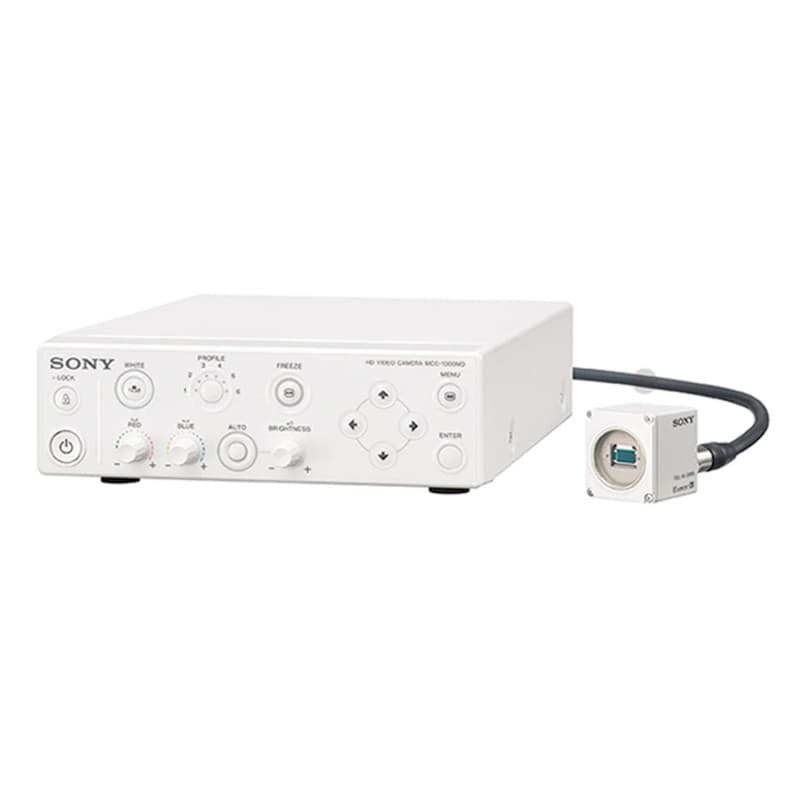

SONY MCC-1000MD Two-Piece Full HD Surgical Video Camera
SONY MCC-1000MD Two-Piece Full HD Surgical Video Camera
Couldn't load pickup availability
- Ideal for microsurgery applications
- Outstanding Full HD image quality
- High sensitivity and versatility
- Three Exmor™-R CMOS sensors
- Easy attachment
SONY MCC-1000MD Two-Piece Full HD Surgical Video Camera
The SONY MCC-1000MD video camera is ideal for use in microsurgery due to its high-resolution Full HD quality. To enable the high level of detail in microsurgical applications, the camera head of the surgical video camera combines three Exmor™-R CMOS sensors. A high sensitivity of F20 means the device can capture remarkably clear video and still images even in near darkness.
The High Dynamic Range Mode means that even objects with surfaces that are difficult to reproduce, such as wetness, dark shadows or glossiness, can be displayed with greatly improved optical quality. In addition to six preset picture profiles, you can also save and recall individual profiles.
The MCC-1000MD surgical video camera offers you a wide range of outputs for flexible use in your clinic or practice. The camera is designed for easy attachment to e.g. medical microscopes and can optionally be controlled with an external device.
Product Details
- SONY MCC-1000MD Two-Piece Surgical Full HD Video Camera
- Ideal for microsurgery applications
- Three Exmor™-R CMOS sensors
- Sensitivity of F20
- Signal-to-noise ratio of 63 dB
- High Dynamic Range (HDR) mode for higher contrast viewing
- Image control with multiple adjustment functions - e.g. auto exposure, knee, digital zoom, image profiles, etc.
- Multiple outputs for flexibility
- Fluorescein mode

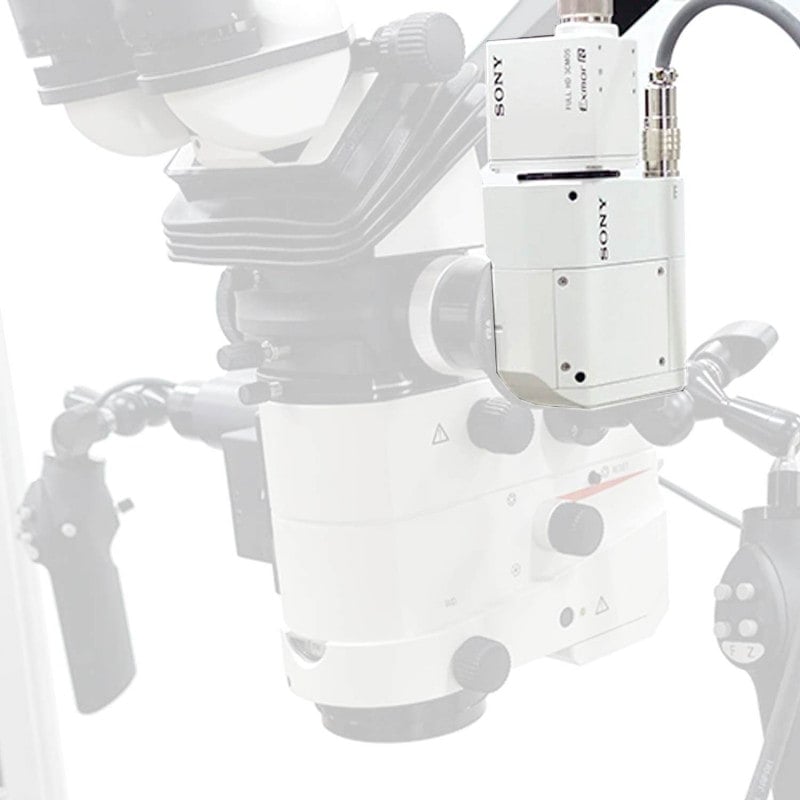

- Easy attachment to surgical microscopes
- Versatile use due to outstanding image quality
- Meets medical standards
Technical Data
| Camera Head | |
| Image Device | 1/2.8" "Exmor" R-CMOS image sensor, type RGB-3CMOS |
| Effektive Pixels | 1920 (H) x 1080 (V) |
| Lens Mount | C-mount |
| Sensitivity | F13 (Typical) (At 1080/59.94i, 89.9 % reflection, 2000 lux) F20 (Typical) (At 1080/59.94i, 89.9 % reflection, 2000 lux, "High Sensitivity" is "ON") |
| Picture S/N | 63 dB (Y) (Typical) |
| Horizontal Resolution | 1000 TV lines or more |
| Gain | 0 dB to 30 dB |
| Shutter Speed | 1/60 to 1/10000 |
| Slow Shutter | 2 to 8 frames |
| Camera Cable Connector | 20-pin, round |
| Camera Control Unit | |
| HD-SDI Videoformat | 1080/60p 1080/60i 1080/50p, 1080/50i |
| Picture Profile | Yes (six settings) |
| Picture Flip | Yes |
| Freeze Function | Yes (capturing a still image) |
| Colour Bar | Off/Multi/EBU 75 % /EBU 100 % /Test Saw |
| Camera Synchronisation for 3D-shooting | Yes |
| Fluorescein Mode | Yes |
| AC Power Operation | Yes |

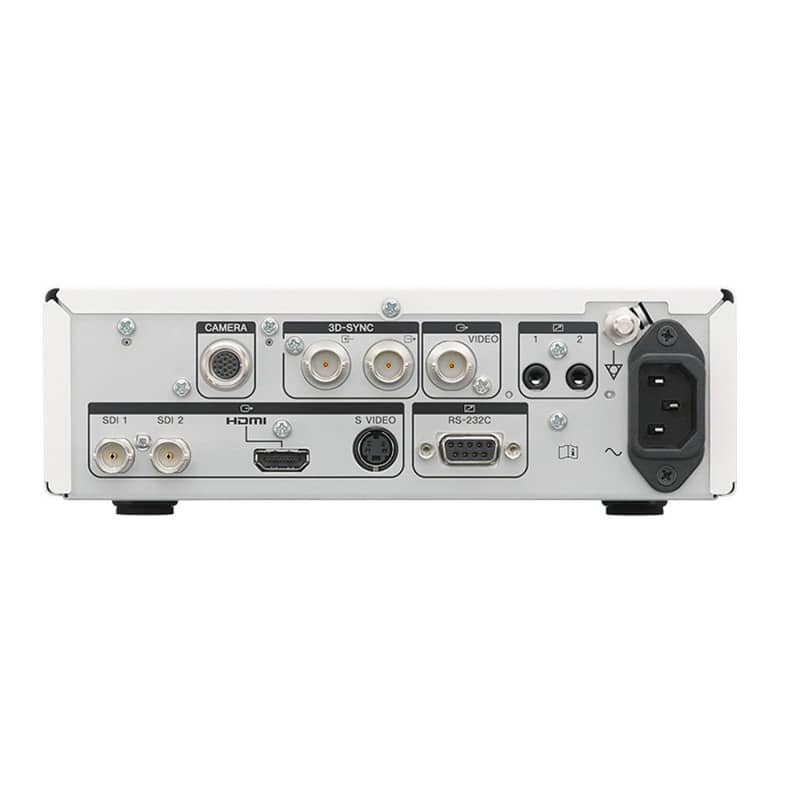

| Connectors | |

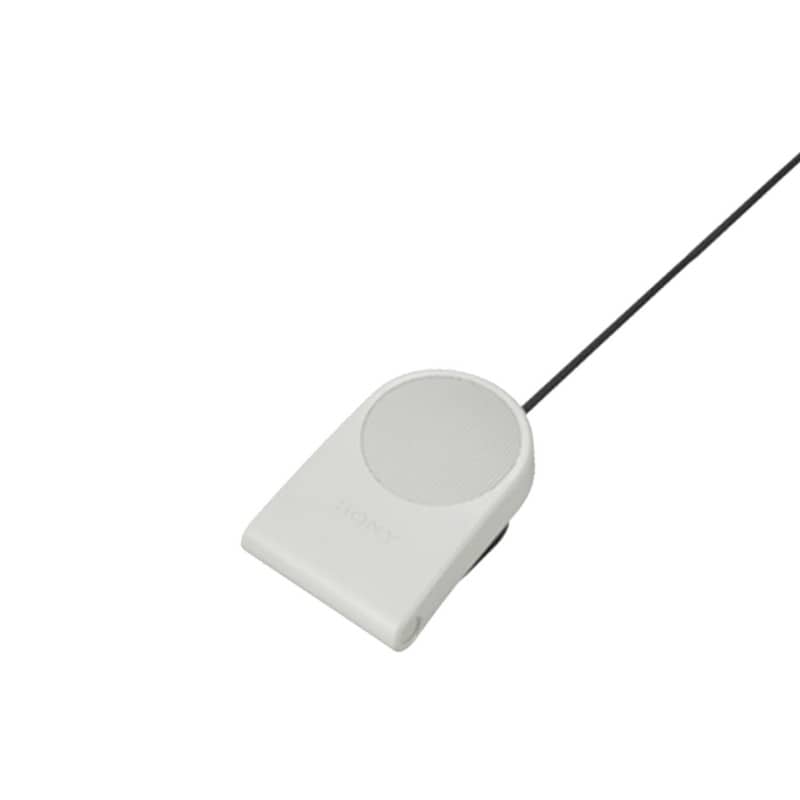

| Input Connectors | Remote contact switch 1, 2 (stereo mini jack) |
| Output Connectors | VIDEO OUT (1x) (BNC) S-VIDEO OUT (1x) (4-pin mini-DIN connector) HDMI OUT (1x) (HDMI connector) HD-SDI OUT (2x) (BNC, HD/3G) |
| Input/Output Connectors | CAMERA (1x) (20-pin, round) RS-232C (1x) (D-Sub, 9-pin) 3D SYNC IN,OUT (BNC) |
| Other Connectors | Equipotential ground connector (1x) |
| General Information | |
| Power Requirements | 100 to 240 V AC, 50/60 Hz |
| Input Current | 0.40 A – 0.25 A |
| Operating Temperature | 0 °C to 40 °C 32 °F to 104 °F |
| Weight | approx. 60 g / approx. 2.1 oz (camera head) approx. 1.9 kg / approx. 4 lb 3 oz (camera control unit) |
| Dimensions (W x H x D) | approx. 34 x 39 x 43 mm (camera head) approx. 200 x 62 x 264 mm (camera contol unit) |
| Items Supplied | Lens mount cap (1x) Instructions for first-time use (1x) CD-ROM (operating instructions in PDF format) (1x) Warranty booklet (1x) List of service contacts (1x) |
