SONY Monitor LMD-X550MT
SONY Monitor LMD-X550MT
Regular price
£31,092.10
Regular price
£0.00
Sale price
£31,092.10
Unit price
/
per
Couldn't load pickup availability
Product overview
- Delivers high quality 2D and 3D colour video images
- Display in 4K Ultra HD
- Multiple display formats
- Good contrast and optimal visibility
- Offers an extensive colour gamut
SONY Monitor

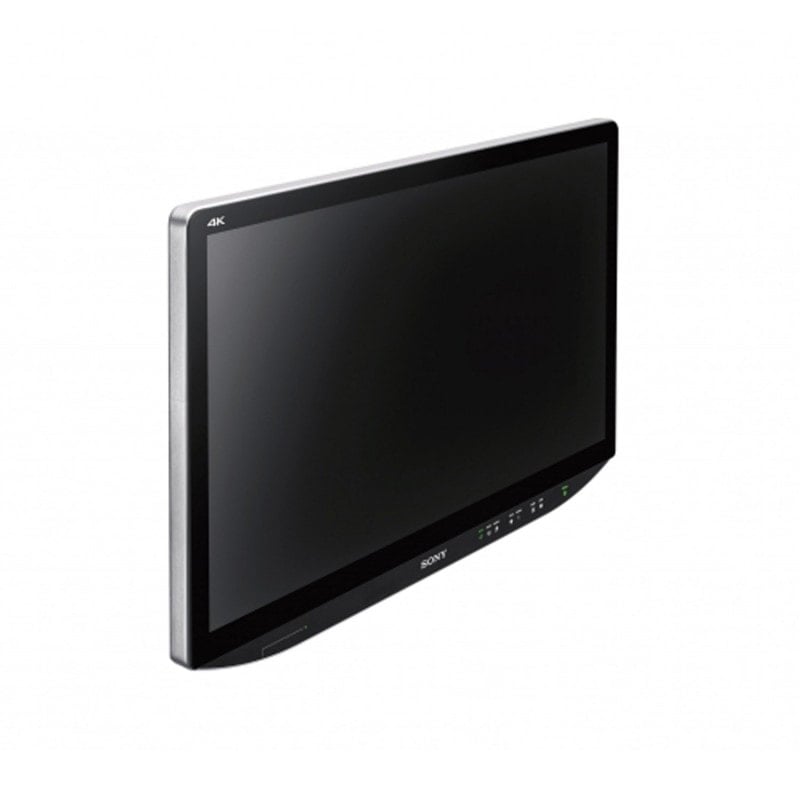

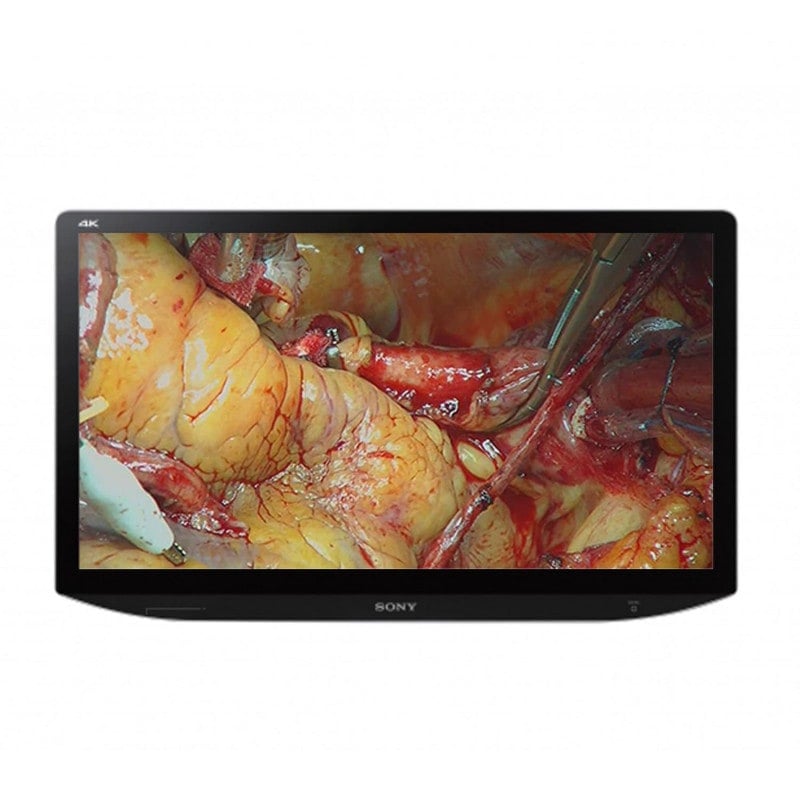

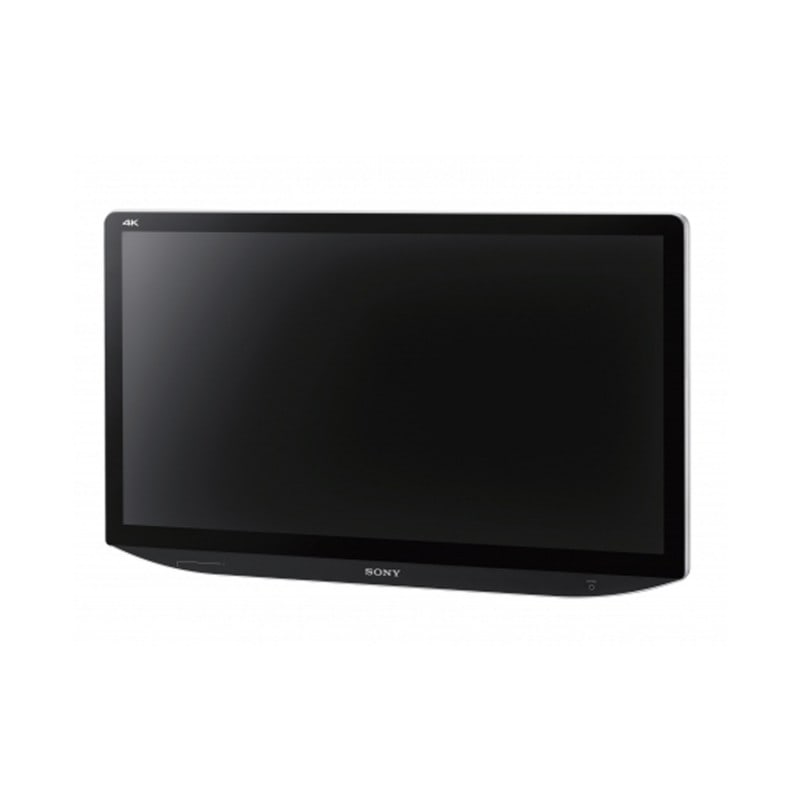

SONY's slim, widescreen monitor delivers high-quality 2D and 3D colour video images in 4K Ultra HD and is compatible with medical imaging systems such as endoscopic and laparoscopic cameras or surgical microscopes. In addition, the monitor has a variety of display modes that can be easily controlled via the user-friendly backlit control panel.
The system also uses advanced imaging technologies that accentuate contours, display structures in greater detail and ensure good contrasts and optimal visibility regardless of lighting conditions and viewing angle. Thanks to the extensive colour gamut, the screen guarantees true-to-life colour reproduction.
Product Details
- SONY Monitor
- With widescreen format
- Delivers high quality 2D and 3D colour video images
- Display in 4K Ultra HD
- Works with Advanced Image Multiple Enhancer™ technology
- Multiple display formats such as Rotation Image, side-by-Side and many more
- 3D images can be rotated 180 degrees
- Good contrast and optimal visibility regardless of light and viewing angle
- Offers a wide colour gamut for lifelike colour reproduction
- With HD/SD upscaling to 4K
- Practical zoom function

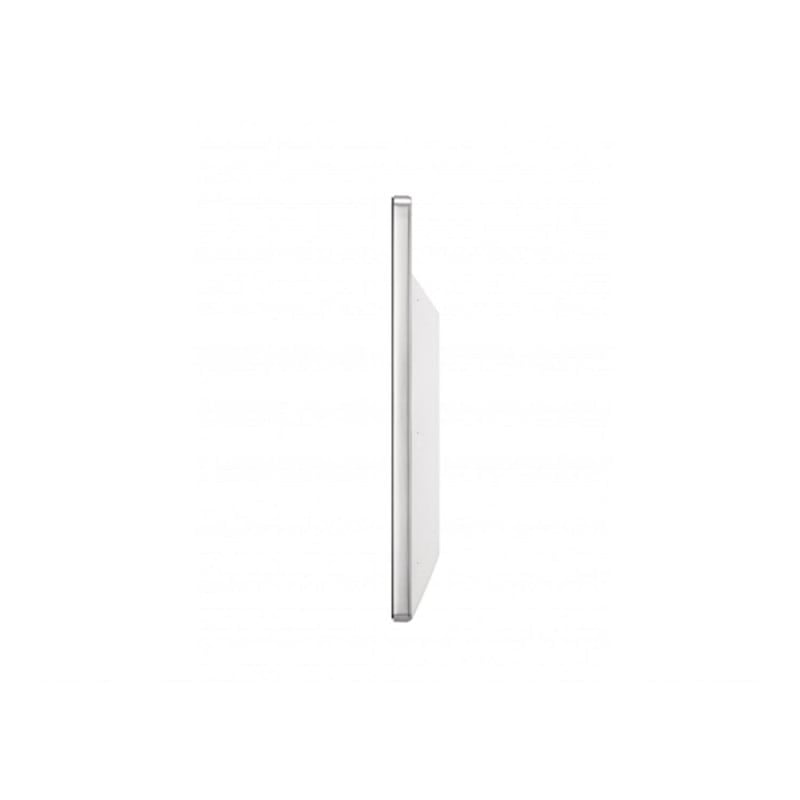

- Slim and lightweight design
- User-friendly LED backlit control panel
- Easy to clean and disinfect surface

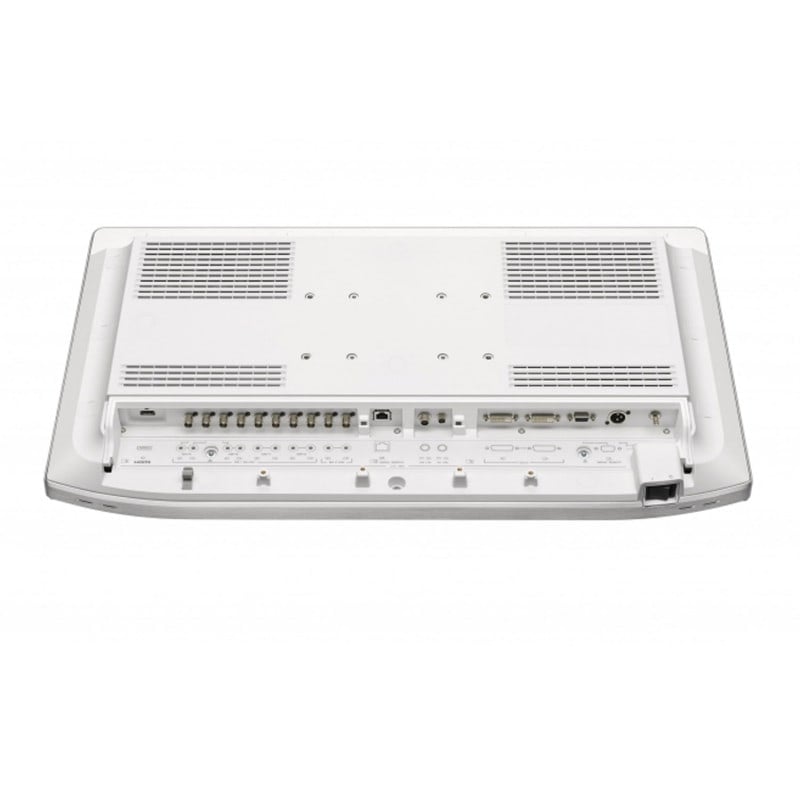

- Easy cabling thanks to downward-facing signal connectors
- Complies with medical regulation IEC 60601-1
- For endoscopic and laparoscopic cameras and surgical microscopes
- Perfect for operating theatres, hospitals, surgery centres, clinics and doctors' offices
- Available in different variants
Advanced Image Multiple Enhancer™ Technology
| Structure Enhacement | Colour Enhacement | Shadow Enhacement |
| Improves contour detection so that structures can be displayed more clearly and sharply. | Allows tonal differences to be adjusted for better visibility. | Improves the visibility of fine details in dark areas of the image. |
Technical Data
| LMD-X310MT | LMD-X550MT | |
| Picture Performance | ||
| Panel | a-Si TFT Active Matrix LCD |
|
| Picture Size (Diagonal) | 789.06 mm 31 1/8 inches |
1.387.8 mm 54 3/4 inches |
| Effective Picture Size (H x V) |
698.0 x 368.1 mm (27 1/2 x 14 1/2“) |
1.209.6 x 680.4 mm (47 5/8 x 26 7/8“) |
| Pixel pitch |
0.1704 x 0.1704 mm | 0.315 x 0.315 mm |
| Resolution (H x V) |
4096 x 2160 pixels |
3.840 x 2.160 pixels |
| Aspect | 17:09 |
16:09 |
| Pixel Efficiency |
> 0.9999 |
|
| Backlight |
LED | |
| Panel Technology |
LED with IPS | |
| Luminance (Panel Specification) |
435 cd/m2 (typical) |
520 cd/m2 (typical) |
| Contrast Ratio |
1.450:01:00 |
1.400:01:00 |
| Number of Gray scale | 10 bit | |
| Colours |
1.073.741.824 |
|
| Panel Frame Rate | 50/60 Hz |
100/120 Hz |
| Viewing Angle (Panel Specification) |
> 89°/> 89°/> 89°/> 89° |
|
| Vertical Viewing Angle (3D Mode) | 27° at a viewing distance more than 775 mm, Crosstalk ratio less than 7 % (typical) |
32° at a viewing distance more than 1,200 mm, Crosstalk ratio less than 7 % (typical) |
| Gamma | 1.8, 2.0, 2.2, 2.4, 2.6, DICOM, Highlight |
|
| Input | ||
| HDMI Input | HDMI (1 x) (HDCP 1.4 correspondence) |
|
| DVI-D Input | DVI-D (1 x)(HDCP 1.4 correspondence) TMDS (single link) |
|
| SDI Input | BNC (5 x); 3G-/HD-/SD-SDI |
|
| Serial Remote (LAN) |
D-Sub, 9-pin (RS-232C) (1 x) RJ-45 (1 x) (Ethernet, 10BASE-T/100BASE-TX) |
|
|
Output | ||
| DVI-D Output | DVI-D (1 x); when HDCP disabling |
|
| SDI Output | BNC (5x) | |
| DC 5 V/ 12V Output | 5 V-Output (1 x), 8 W; 12 V-Output (1 x) max. 20 W |
|
|
General Information | ||
| Power Requirements | LCD-Monitor DC Input: 26 V, 6.9 A AC adaptor(AC-300MD): 245 (W) x 150 (L) x 58 (H) mm AC adaptor's AC IN: 100 V - 240 V, 50/60 Hz, 2.1A - 1.0 A |
LCD-Monitor AC IN: 100 V - 240 V, 50/60 Hz, 3.2 A - 1.3 A |
| Power Consumption |
LCD-Monitor: Ca. 180 W (max.) |
|
| Operating Temperature |
0 °C to 40°C (Recommended: 20 °C bis 30 °C) |
|
| Operating Humidity |
30–85 % (no condensation) |
|
| Operating/Storage/Transport Pressure | 700 to 1060 hPa |
|
| Dimensions (W x H x D) |
Approx. 753.8 x 456.4 x 69.3 mm |
Approx. 1.264.6 x 771.5 x 85.5 mm |
| Weight |
Approx. 11.8 kg |
Approx. 35.2 kg |
| Mounting | 100 x 100 mm VESA 100 x 200 mm VESA |
200 x 200 mm VESA 300 x 300 mm VESA |
| Supplied Accessories |
AC adaptor: AC-300MD AC power cord Instructions for use (CD-ROM) Quick guide AC power plug holder (2) Instructions for use of the AC adaptor Service contact list Warranty book (JP only) M4x12 mm screw (4) 3D eye shield kit: CFV-E30SK Instructions for use of the eye shield kit |
AC power cord Instructions for use (CD-ROM) Quick guide Power plug holder (2) Service contact list Warranty book (JP only) M6 x 12 mm screw (4) 3D eye shield kit: CFV-E30SK Instructions for use of the eye shield kit |
