SONY UP-D711MD A7 Digital Black and White Thermal Printer
SONY UP-D711MD A7 Digital Black and White Thermal Printer
Couldn't load pickup availability
- Digital black and white graphics printer
- Provides high resolution printouts of ultrasound images
- Low operating costs and compact design
- With paper saving mode for lower media consumption
- Medical device
SONY UP-D711MD A7 Digital Black & White Thermal Printer
The economical SONY UP-D711MD A7 A7 digital black and white thermal printer is a digital black and white graphics printer compatible with 12-24 V DC ultrasound systems. It delivers high-quality printouts of ultrasound images and is also particularly compact and can be optimally integrated into clinical environments. Thanks to the recess for cable connections, installation in confined spaces is also possible without any problems.
Two different print media are available depending on requirements. On the one hand the high gloss paper UPP-84HG, which provides an almost photo-realistic quality, and on the other hand the high- quality printer paper UPP-84S, which is characterized by its excellent image quality and cost-effectiveness. With its high image quality, the UP-D711MD makes ultrasound examinations easier to interpret and analyze.
In addition, the Sony graphics printer impresses with its particularly low energy consumption, which lowers power supply requirements in medical facilities. The paper-saving mode makes it possible to reduce media consumption when printing multiple images.
Product Details
- SONY UP-D711MD A7 A7 digital black and white thermal printer
- Digital black and white graphics printer
- Provides high quality printouts of ultrasound images
- Particularly compact and easy to integrate into clinical environments
- Medical device (meets the relevant product safety standards such as IEC 60601-1)
- Prints on easily refillable paper rolls
- Facilitates interpretation and analysis of ultrasound examinations
- Stands out due to its low operating costs

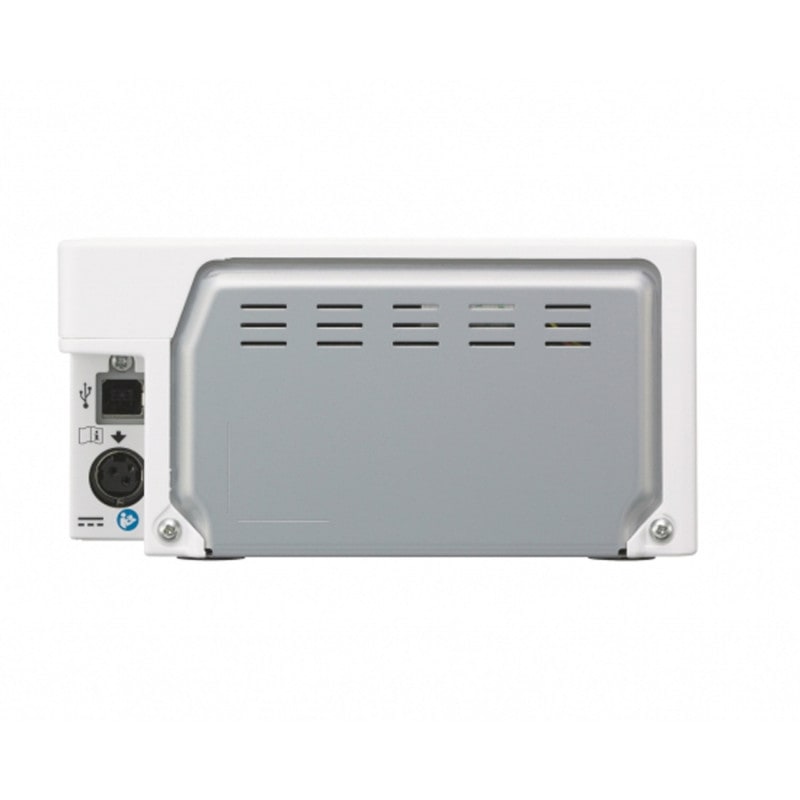

- Recess for cable connections simplifies installation in confined spaces
- Low energy consumption, lower power supply requirements
- Suitable for ultrasound systems with 12-24 V direct current
- Print medium can be selected according to requirements (glossy or high-quality printer paper)
- Automatically magnifies image data to match the pre-set print area
- Short data transfer time for small image files
- Print mode can be easily set in the printer driver menu
- With paper-saving mode
- Image can be provided with print information (contrast indication, brightness, gamma and sharpness)
Technical Details
| Printing Method | Direct thermal printing |
| Resolution | 300.6 dpi |
| Colour Gradation | 8 bit (256 levels) |
| Picture Elements | 2.688 x 896 pixels |
| Picture Areas(max.) | 75.7 x 227.1 mm |
| Paper Format | UPP-84HG: 84 mm x 12.5 m UPP-84S: 84 mm x 13.5 m |
| Printing Time | Approx. 5 s/896 x 1.196 pixels (high-speed print mode) Approx. 8 s/896 x 1.196 pixels (normal print speed) |
| Image Memory | Complete single image: 2.688 x 896 x 8 (bit)
|
| Interface | Full-speed-USB |
| Printer Driver Software | Windows XP (32/64 bit), Vista (32/64 bit), 7 (32/64 bit), 8 (32/64 bit), 10 (32/64 bit) |
| Operating Voltage | 12 V to 24 V DC |
| Input Current | 6 A to 3 A |
| Operating Temperature | 5 °C to 35 °C |
| Operating Humidity | 20 % to 80 % (non-condensing) |
| Dimensions | 140 x 70 x 125 mm (without protruding parts) |
| Weight | 1 kg |
Delivery Contents
- UP-D711MD A7 A7 digital black and white thermal printer
- Thermal head cleaning blade
- CD-ROM with instructions for use
- Notes on using the printer
