Welch Allyn ABPM 7100 without software

• Ambulatory 24-hour blood pressure monitor
• Simple operation thanks to start, day/night and event buttons
• Maximum wearing comfort and high patient acceptance
• Complies with current AAMI and EHS standards
• Has BHS A/A validation

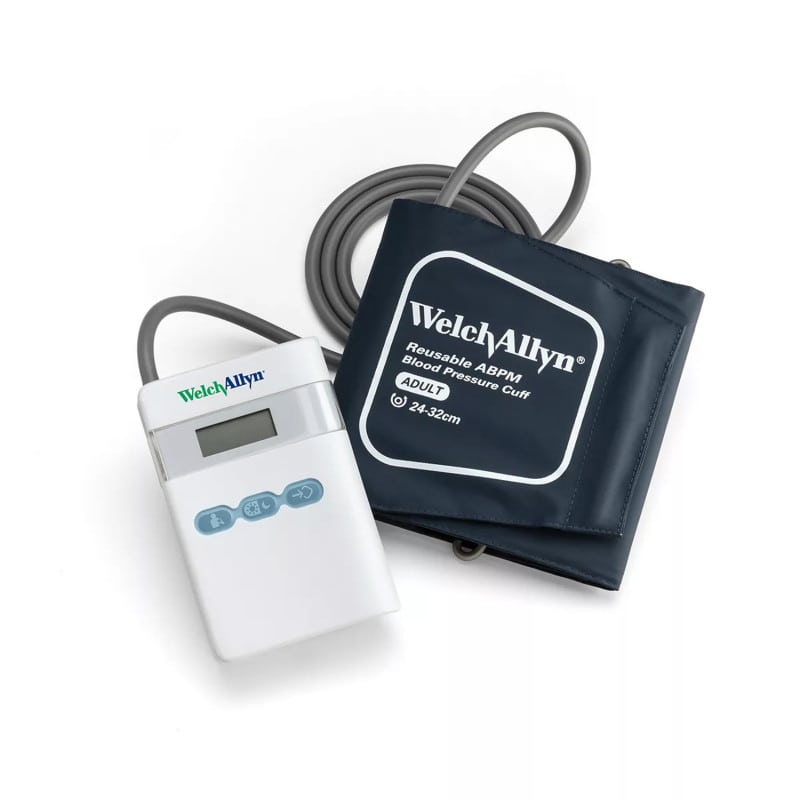

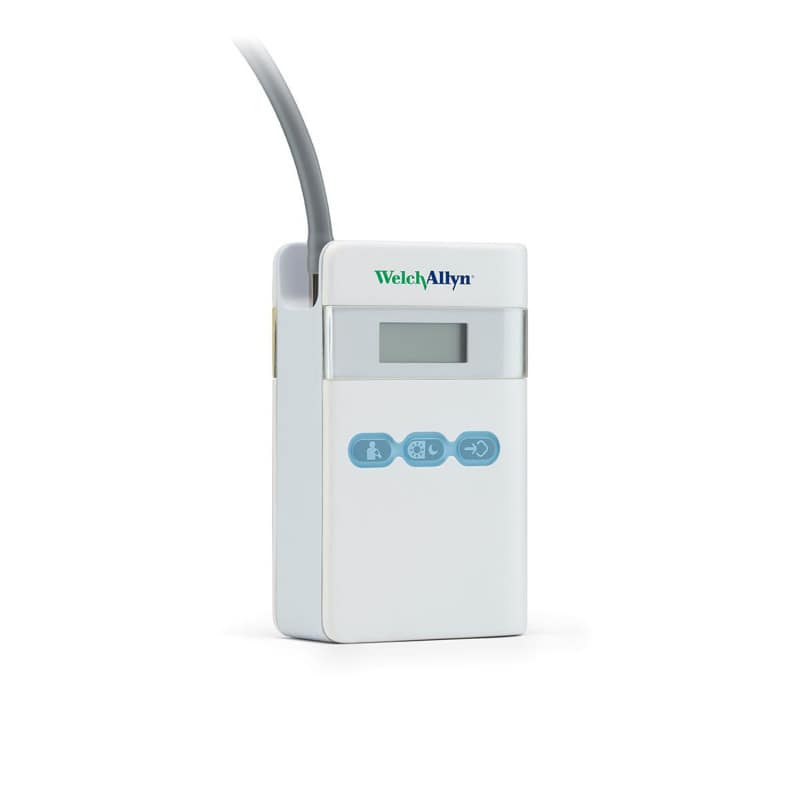

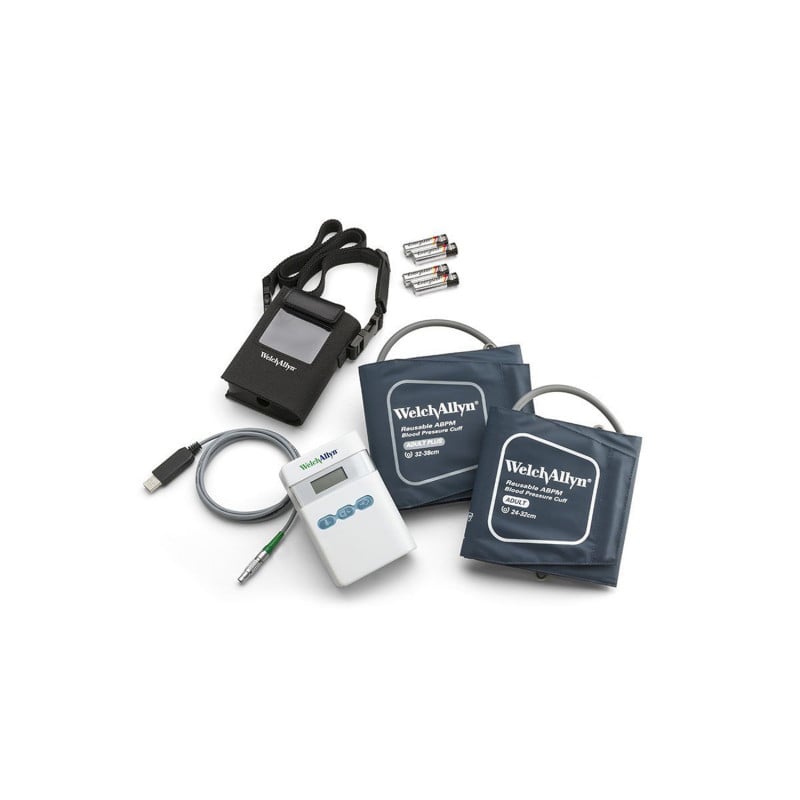

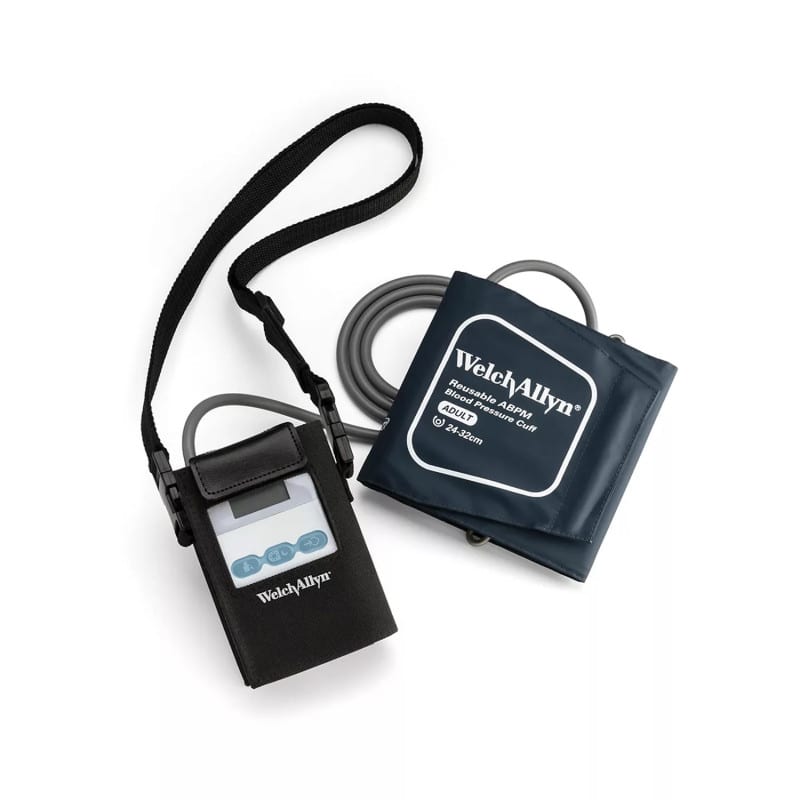

Welch Allyn ABPM 7100

The Welch Allyn ABPM 7100 is a user-friendly blood pressure monitor for 24-hour ambulatory blood pressure monitoring. The ambulatory blood pressure monitor uses validated oscillometric technology for automatic and non-invasive blood pressure measurement (NIBP). The device offers the flexibility to perform measurements both automatically and manually, with automatic determination of cuff pressure during the initial measurement simplifying the process.

A day/night button allows differentiation between waking and sleeping phases, which is important when analysing blood pressure trends. With central blood pressure measurement and Hypertension Management Software (HMS), the device provides an efficient and reliable evaluation of blood pressure data, contributing to the early identification of potential complications*. The event button allows users to mark specific moments, such as medication intake.

Thanks to the Auto Feedback Logic, unnecessary excessive pumping is avoided, enhancing both comfort and patient acceptance. Additionally, the monitor meets current AAMI and EHS standards and features BHS A/A validation, guaranteeing clinically validated results.

Product Details

• Welch Allyn ABPM 7100
• Ambulatory and easy-to-use 24-hour blood pressure monitor
• Uses oscillometric technology
• Validated method for automatic non-invasive blood pressure measurement (NIBP)
• User can perform measurements automatically or manually as needed
• Automatic determination of cuff pressure during initial measurement
• Day/night button allows differentiation between waking and sleeping phases
• Event button enables marking of medication intake, etc.
• LCD displays information on measurement data, monitor settings, and errors
• Audible signals coordinate measurements and indicate issues
• Performs self-tests after completing a measurement
• With central blood pressure measurement and Hypertension Management Software*
• Efficient and reliable evaluation of blood pressure data*
• Facilitates early identification of potential complications*
• Customisable report layout*
• Measurement cycles and intervals can be specified*
• Auto Feedback Logic avoids excessive pumping
• Increases comfort and patient acceptance
• Lightweight, compact, and quiet design
• Provides accurate readings even during sleep phases
• Facilitates patient medication adjustment
• Complies with current AAMI and EHS standards
• Features BHS A/A validation
• Guarantees clinically validated results
• Available without software or with licensing packages
• Manufacturer's warranty: 12 months

Ordering Information

Overview of the HMS Software

• Statistical summaries for systolic, pulse, mean arterial pressure, and heart rate, including minimum, maximum, average and standard deviations
• Graphical representations of BP profile, including pie charts, histograms and correlation charts for 24-hour period, along with separate breakdown for day and night readings
• Editable report for detailed analysis
• Trend analysis tool for long-term evaluations and support in medication management
• Summary view

Available Cuff Sizes (optional)

Technical Specifications

• Blood pressure measurement range: Systolic 60-290 mmHg, Diastolic 30-195 mmHg
• Accuracy: +/- 3 mmHg
• Static pressure range: 0-300 mmHg
• Pulse range: 30-240 beats per minute
• Measurement method: Oscillometric
• Measurement intervals: 0, 1, 2, 3, 4, 5, 6, 10, 12, 15, 20 or 30 measurements per hour
• Measurement protocols: 4 configurable interval groups
• Memory capacity: 300 measurements (with CBP or PWA: 260 measurements)
• Battery capacity: Over 300 measurements per battery set
• Operating temperatures: +10°C to +40°C
• Operating humidity: 15% to 90% relative humidity
• Storage environment: -20°C to +50°C and 15% to 95% relative humidity
• Ambient pressure: 700-1060 hPa
• Dimensions: 121 x 80 x 33 mm
• Weight: Approx. 220 g without batteries
• Power supply: 2 Ni-MH batteries (1.2 V, 1500 mAh) or 2 alkaline batteries (AA, Mignon, LR6)
• Interfaces: USB interface cable
• Expected device lifespan: 5 years
• Expected cuff lifespan: 6 months
